House Plan 1368 Meredith, Traditional House Plan

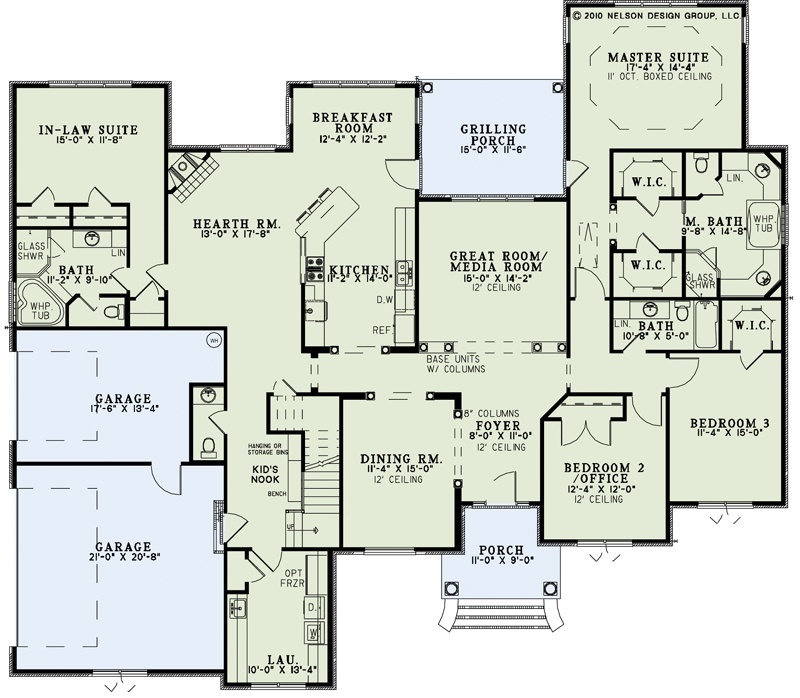

House Plan NDG 1368 Main Floor

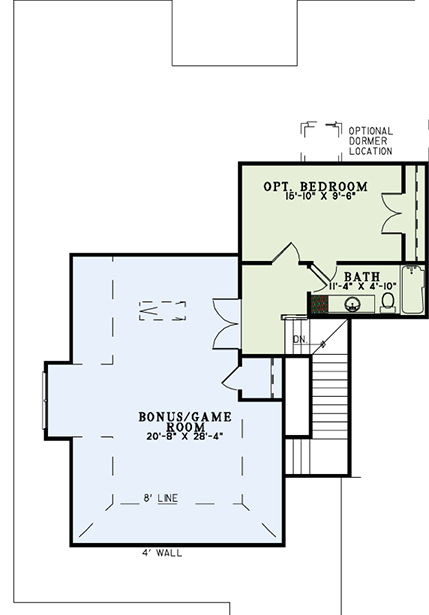

House Plan NDG 1368 Upper Floor/Bonus Room
House Plan NDG 1368 Main Floor
House Plan NDG 1368 Upper Floor/Bonus Room

Floor plans

House Plan NDG 1368 Main Floor

House Plan NDG 1368 Upper Floor/Bonus Room
NDG 1368

House Plan 1368 Meredith, Traditional House Plan

PDF: $1,650.00

Plan Details

  • Plan Number: NDG 1368
  • Total Living Space:3445 Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: 1
  • Garage: Yes 3 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 74
  • Width In.: N/A
  • Depth Ft.: 69
  • Depth In.: N/A

Description

What an extraordinary view this home plan provides with its arch window panes cascading the front of the home. A large dining area and a great room, boxed in conveniently for use as a media room. An open kitchen with a peninsula bar and breakfast room, adjacent to the hearth room, perfect for family and friends to gather together. This plan is phenomenal; has an in-law suite and full bath, featuring a glass shower and whirlpool tub. It has a kid’s nook and half bath down from the spacious hearth room with fireplace. A large laundry room complete with a sink and plenty of counter space and an optional freezer. The master suite has an 11′ boxed ceiling, 2 walk-in closets, double vanity bathroom with a glass shower and whirlpool tub. Upstairs is the bonus/game room and an optional bedroom.

Specifications

  • Total Living Space:3445 Sq.Ft.
  • Main Floor: 3122 Sq.Ft
  • Upper Floor (Sq.Ft.): 323 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Basement (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 594 Sq.Ft.
  • Porch (Sq.Ft.): 259 Sq.Ft.
  • Garage (Sq.Ft.): 740 Sq.Ft.
  • Total Square Feet: 5038 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 10
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 32
  • Ridge Height (In.): N/A
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
