House Plan 365B Spruce Street, Traditional House Plan

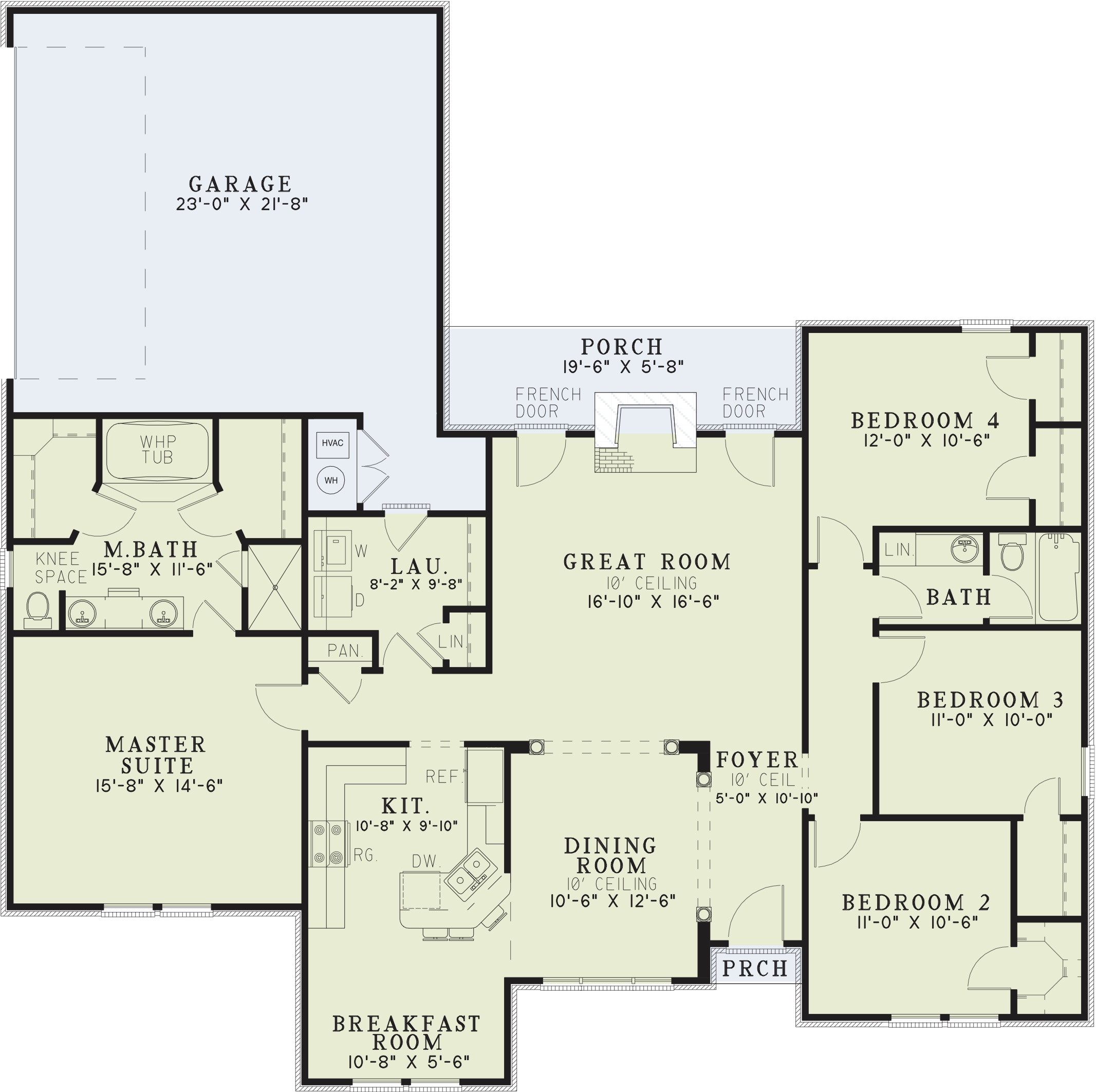

House Plan NDG 365B Main Floor
House Plan NDG 365B Main Floor

Floor plans

NDG 365B

House Plan 365B Spruce Street, Traditional House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 365B
  • Total Living Space:1854Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 58
  • Width In.: 8
  • Depth Ft.: 58
  • Depth In.: 6

Description

The entry of this split bedroom home shows off the sensational columns which frame the dining room. Romance the one you love by the fireplace in the comfortable great room with french doors accessing to the rear porch. Afterwards, retreat to your master suite and bath, complete with ‘his and her’ walk-in closets, double vanities and a wonderful whirlpool tub. Don’t worry about the children, they will be having dreams of their own in the bedrooms located on the opposite side of this home.

Specifications

  • Total Living Space:1854Sq.Ft.
  • Main Floor: 1854 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 197 Sq.Ft.
  • Garage (Sq.Ft.): 498 Sq.Ft.
  • Total Square Feet: 2549 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 22
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
