House Plan 372B Richmond Cove, Traditional House Plan

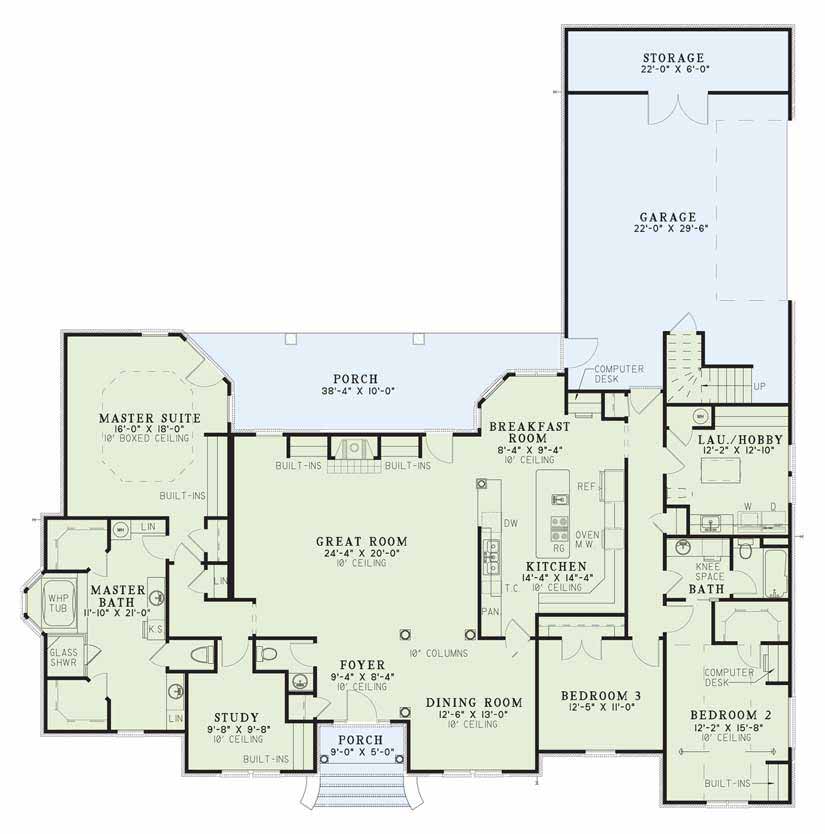

House Plan NDG 372B Main Floor

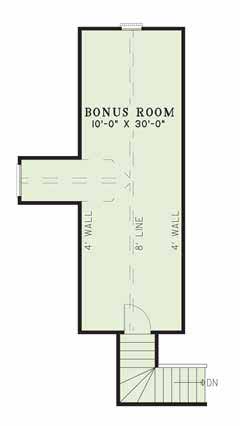

House Plan NDG 372B Bonus Room
House Plan NDG 372B Main Floor
House Plan NDG 372B Bonus Room

Floor plans

NDG 372B

House Plan 372B Richmond Cove, Traditional House Plan

PDF: $1,100.00

Plan Details

  • Plan Number: NDG 372B
  • Total Living Space:2728Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: Yes 2 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 76
  • Width In.: 10
  • Depth Ft.: 77
  • Depth In.: 8

Description

This is a home created for the ages with the fine detailing of the master bedroom in this lavish home. The elaborate master suite presents an entire wall of built-ins along with an angled private entrance to the porch. A fireplace nicely settled between built-ins punctuates the enormous great room. The open styling beckons guests to roam and mingle. The oversized hobby room offers space galore for those do-it-yourself home projects.

Specifications

  • Total Living Space:2728Sq.Ft.
  • Main Floor: 2728 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 405 Sq.Ft.
  • Porch (Sq.Ft.): 334 Sq.Ft.
  • Garage (Sq.Ft.): 805 Sq.Ft.
  • Total Square Feet: 4272 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 26
  • Ridge Height (In.): 2
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
