House Plan 911 Lexington Drive, Classical House Plan

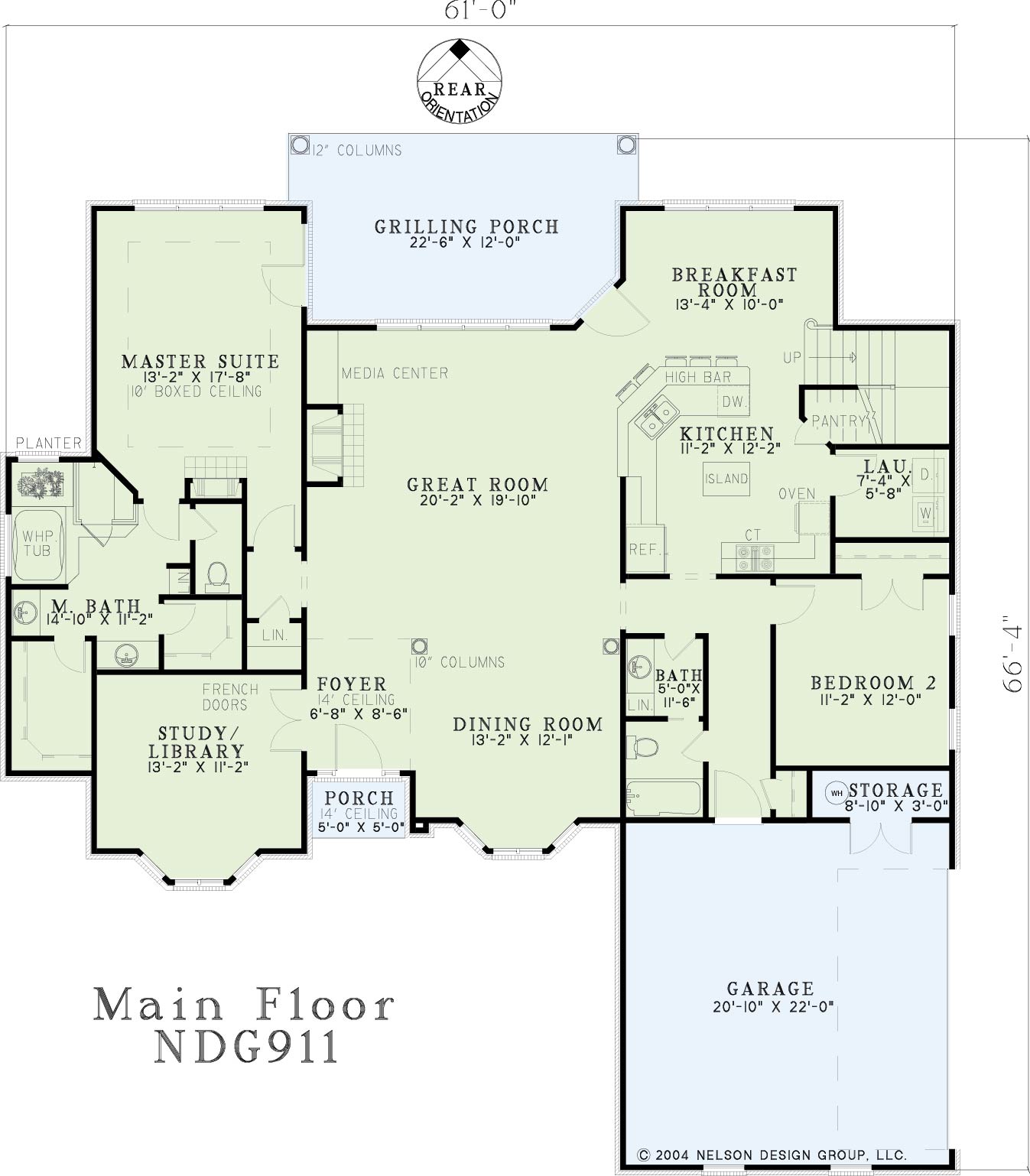

House Plan NDG 911 Main Floor

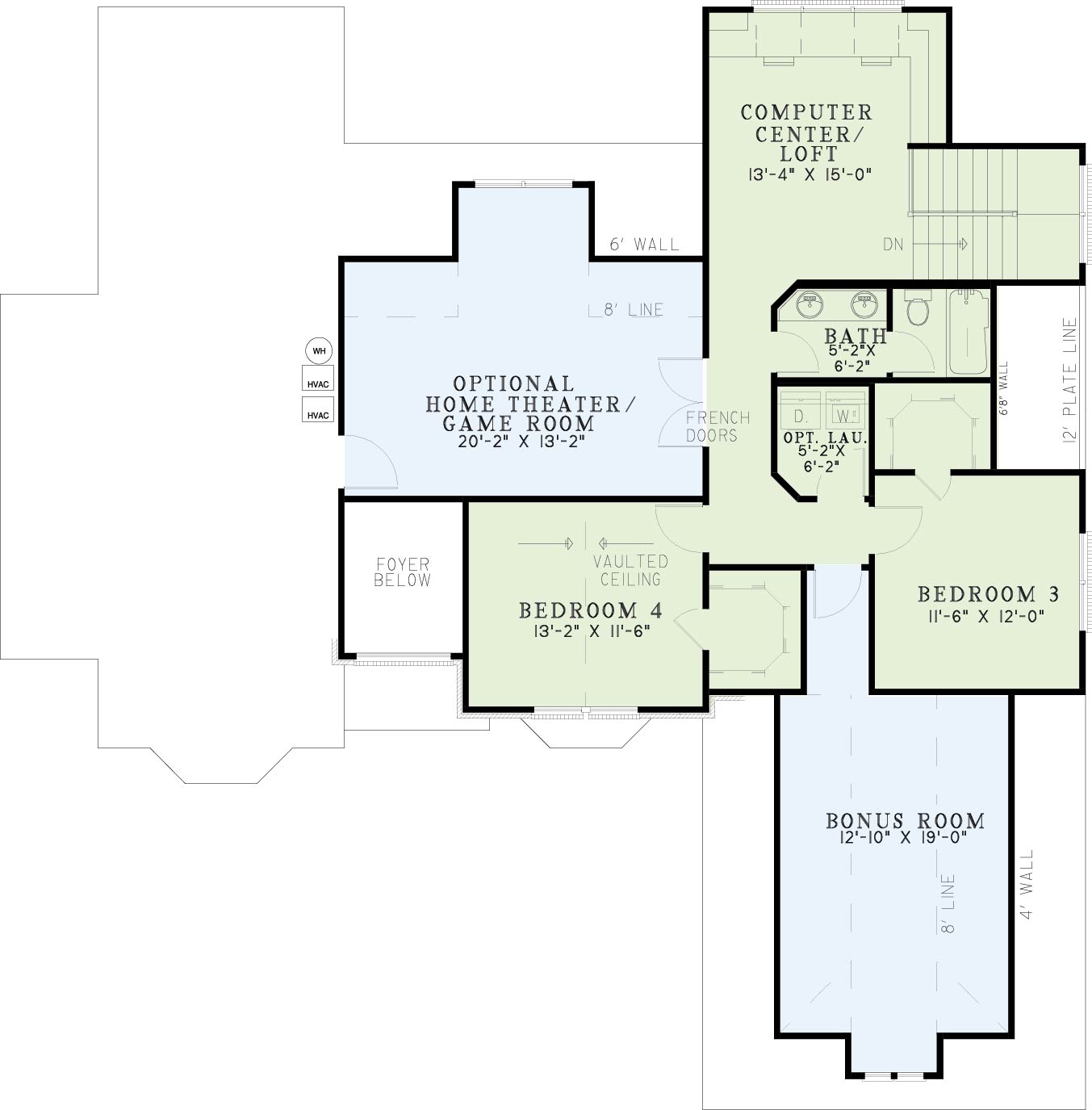

House Plan NDG 911 Upper Floor
House Plan NDG 911 Main Floor
House Plan NDG 911 Upper Floor

Floor plans

NDG 911

House Plan 911 Lexington Drive, Classical House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: NDG 911
  • Total Living Space:3206Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 61
  • Width In.: N/A
  • Depth Ft.: 66
  • Depth In.: 4

Description

This gorgeous home from Nelson Design Group is full of amenities. French doors lead into the private study/library from the foyer. Elegant columns divide the dining room from the great room with media center and fireplace, perfect for entertaining. Relax in the whirlpool bath or next to the fireplace in your luxurious master suite on the main level of this home. While upstairs, you’re sure to enjoy the computer center/loft area, as well as the home theater down the hall. A generous bonus area is also included in this design.

Specifications

  • Total Living Space:3206Sq.Ft.
  • Main Floor: 2107 Sq.Ft
  • Upper Floor (Sq.Ft.): 1099 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 298 Sq.Ft.
  • Porch (Sq.Ft.): 271 Sq.Ft.
  • Garage (Sq.Ft.): 510 Sq.Ft.
  • Total Square Feet: 4285 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 29
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
