House Plan 348 Willow Lane, French Traditional House Plan

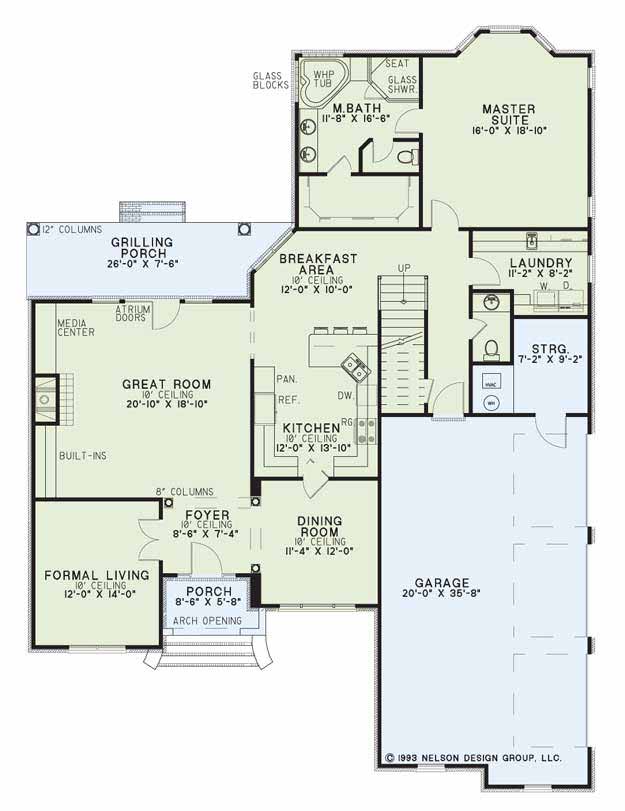

House Plan NDG 348 Main Floor

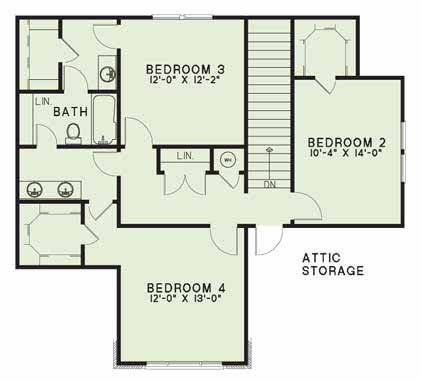

House Plan NDG 348 Upper Floor
House Plan NDG 348 Main Floor
House Plan NDG 348 Upper Floor

Floor plans

NDG 348

House Plan 348 Willow Lane, French Traditional House Plan

PDF: $1,100.00

Plan Details

  • Plan Number: NDG 348
  • Total Living Space:2784Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: 1
  • Garage: Yes 3 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 54
  • Width In.: 2
  • Depth Ft.: 73
  • Depth In.: 6

Description

The stately exterior of this home opens to a spacious and well-organized interior. The foyer, highlighted by graceful columns, separate the formal living and dining areas. Built-in bookshelves and media center surround the great room’s elegant fireplace. Stylish Atrium doors provide access to the grilling porch where the family chef prepares the night’s cuisine. Privacy is not an issue as all three secondary bedrooms offer walk-in closets and private bath entrances.

Specifications

  • Total Living Space:2784Sq.Ft.
  • Main Floor: 1895 Sq.Ft
  • Upper Floor (Sq.Ft.): 889 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 303 Sq.Ft.
  • Garage (Sq.Ft.): 713 Sq.Ft.
  • Total Square Feet: 3800 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 9
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 29
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
