House Plan 849 Quail Drive, Farmhouse House Plan

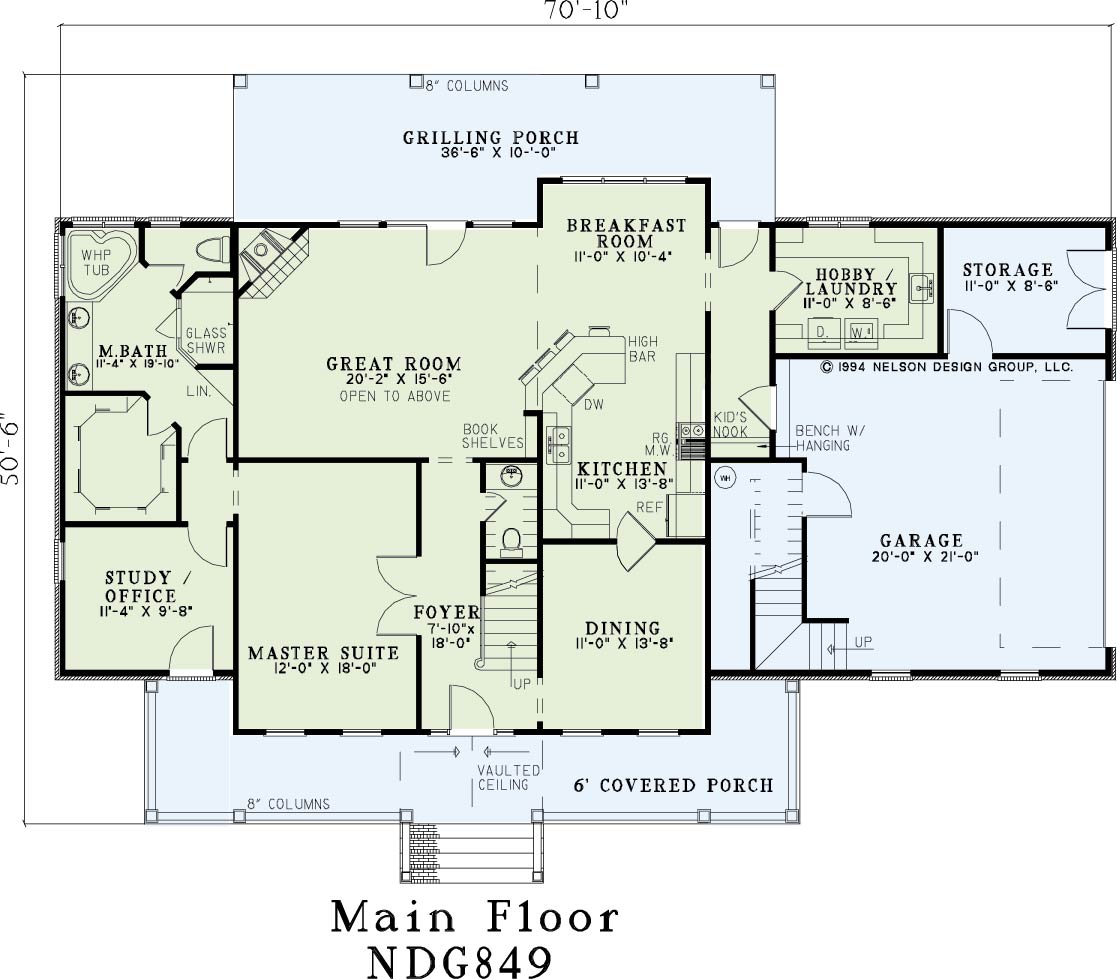

House Plan NDG 849 Main Floor

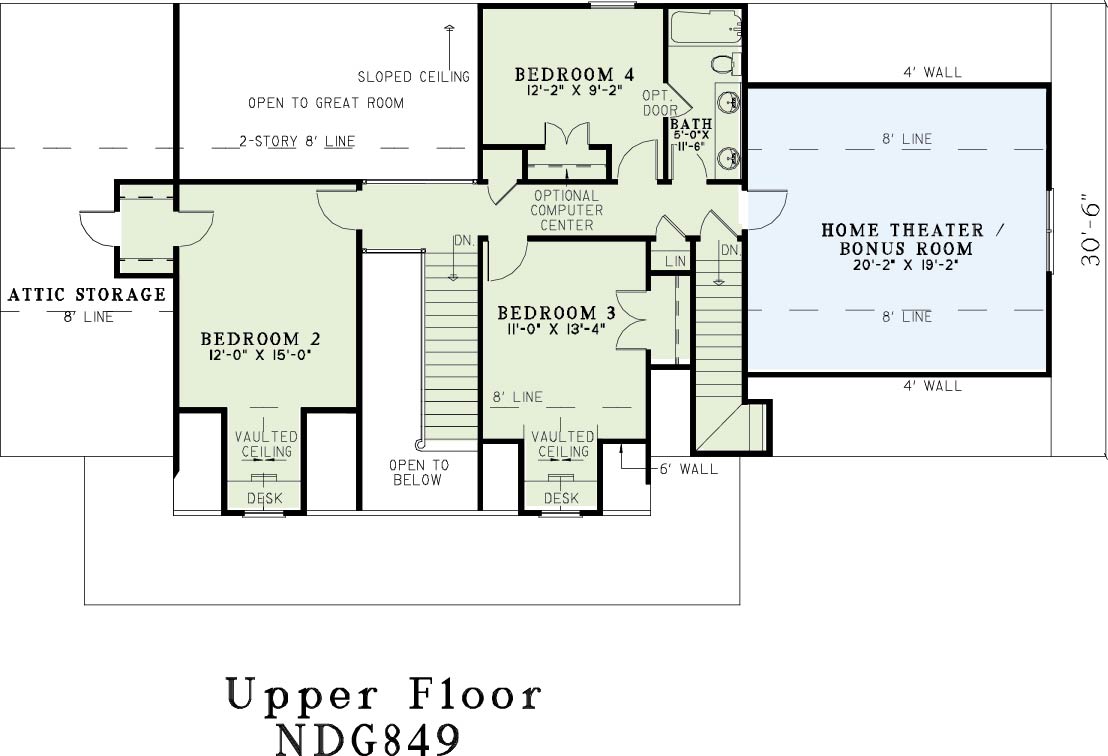

House Plan NDG 849 Upper Floor
House Plan NDG 849 Main Floor
House Plan NDG 849 Upper Floor

Floor plans

NDG 849

House Plan 849 Quail Drive, Farmhouse House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 849
  • Total Living Space:2482Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: 1
  • Garage: 2 Bay Yes
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 70
  • Width In.: 10
  • Depth Ft.: 50
  • Depth In.: 6

Description

Traditional exterior with numerous luxurious amenities describes this split four bedroom design. The master suite in this home features a study or office that is accessible from the covered front porch. An open kitchen provides ample entertaining options with the dining room as well as the great room and the rear grilling porch. The kid's nook allows the children to keep all their backpacks and supplies easily organized. The upper floor hosts a home theater that will be a favorite hangout on weekends.

Specifications

  • Total Living Space:2482Sq.Ft.
  • Main Floor: 1674 Sq.Ft
  • Upper Floor (Sq.Ft.): 808 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 409 Sq.Ft.
  • Porch (Sq.Ft.): 643 Sq.Ft.
  • Garage (Sq.Ft.): 649 Sq.Ft.
  • Total Square Feet: 4183 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: 5:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 27
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
