House Plan 370 Popular Avenue, Farmhouse House Plan

>

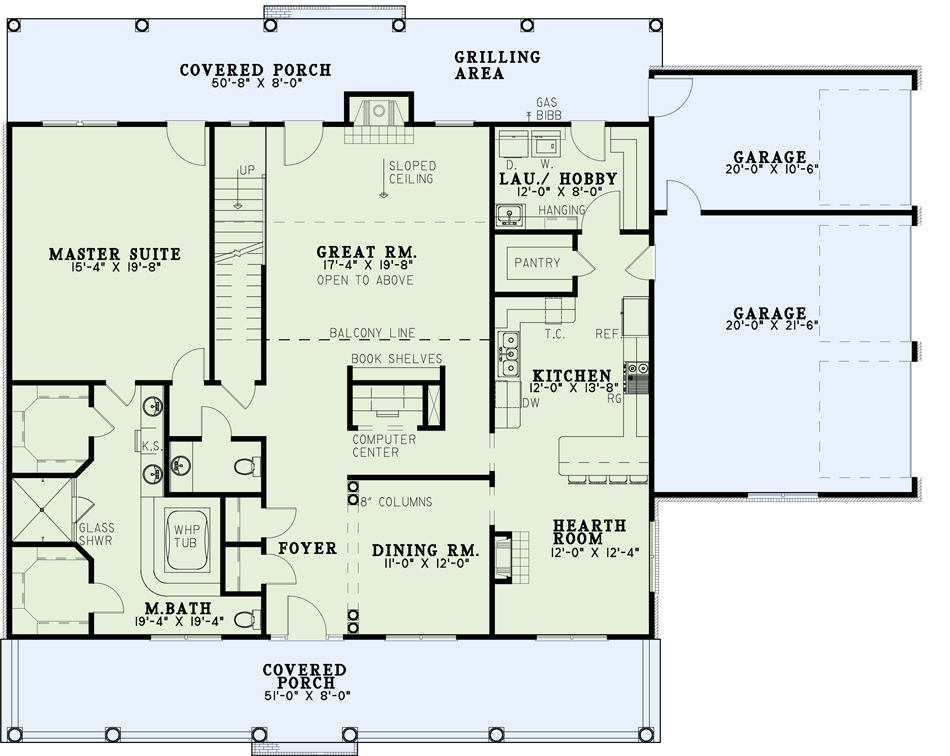

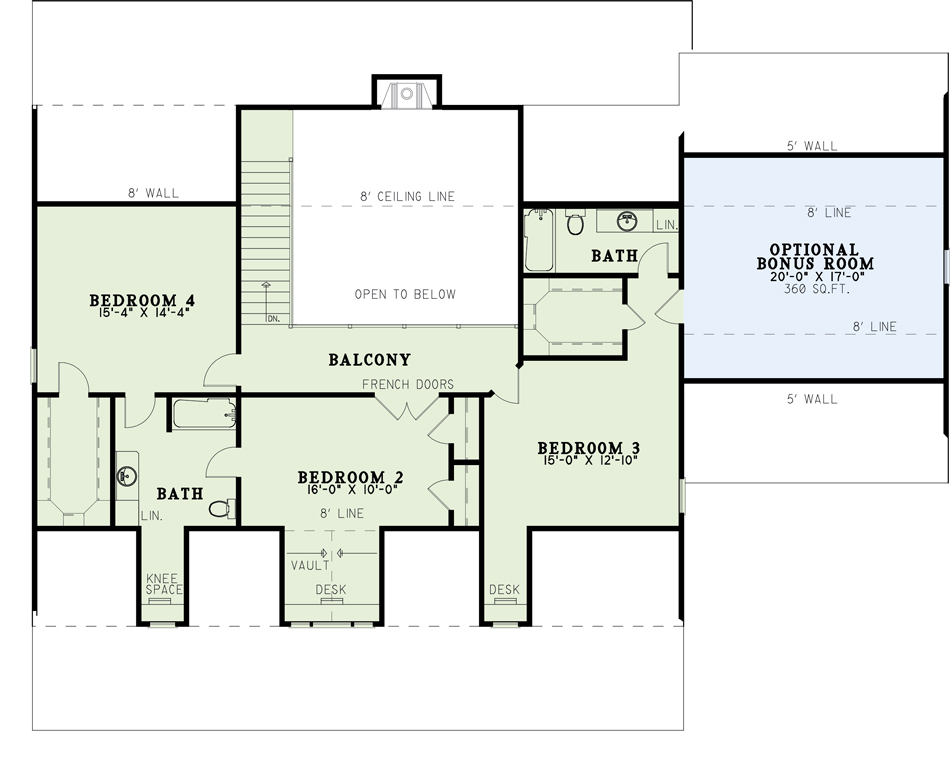

Floor plans

NDG 370

House Plan 370 Popular Avenue, Farmhouse House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: NDG 370
  • Total Living Space:3172Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: 1
  • Garage: 3 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 70
  • Width In.: 4
  • Depth Ft.: 56
  • Depth In.: N/A

Description

The covered front porch of this southern traditional home warmly welcomes friends and family. Entering through the foyer, you’ll notice the columns surrounding the formal dining room. Continue through to the hearth room and relax in front of the fireplace before dinner. The great room, which is always a wonderful place to gather has a built-in computer center. Spend quiet times in your master suite with access to the rear covered porch for those nights of star gazing. Traveling upstairs, children and guests are accommodated with their own bedrooms and an optional bonus game room.

Specifications

  • Total Living Space:3172Sq.Ft.
  • Main Floor: 2000 Sq.Ft
  • Upper Floor (Sq.Ft.): 1172 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 801 Sq.Ft.
  • Garage (Sq.Ft.): 685 Sq.Ft.
  • Total Square Feet: 4658 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: 5:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 29
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
