House Plan 671 Dogwood Avenue, French Classical House Plan

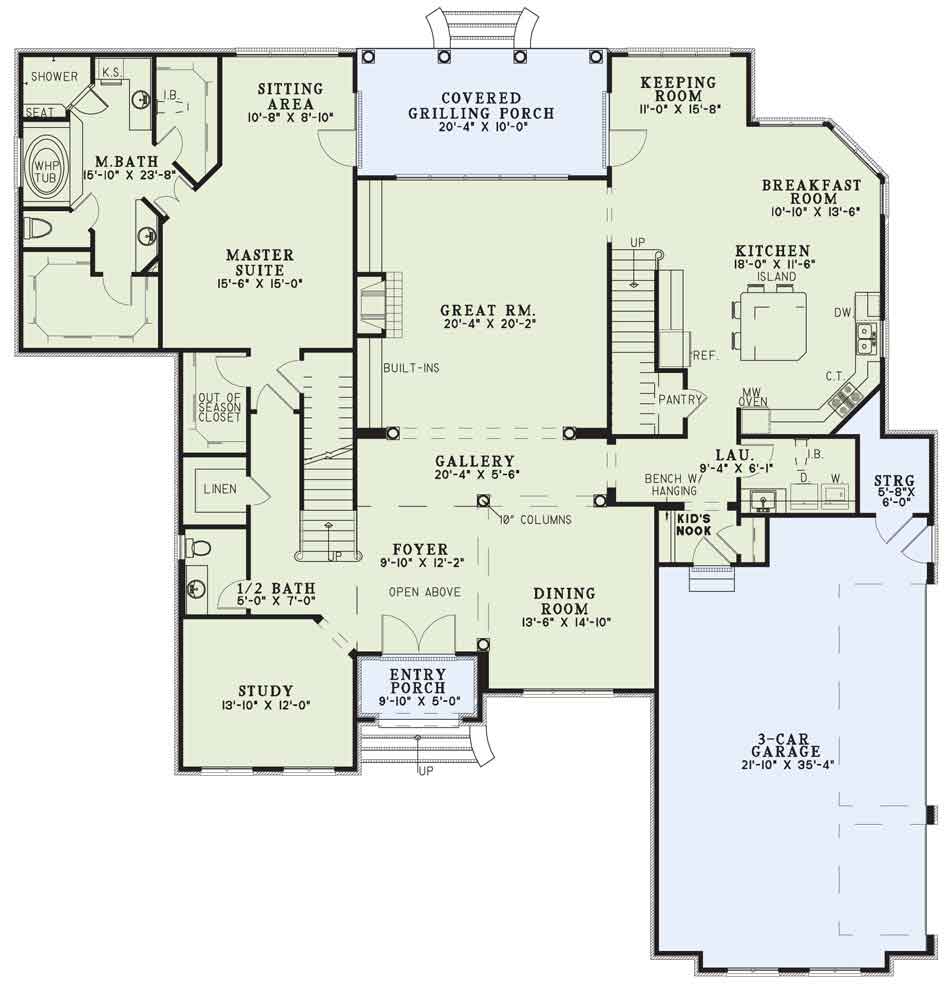

House Plan NDG 671 Main Floor

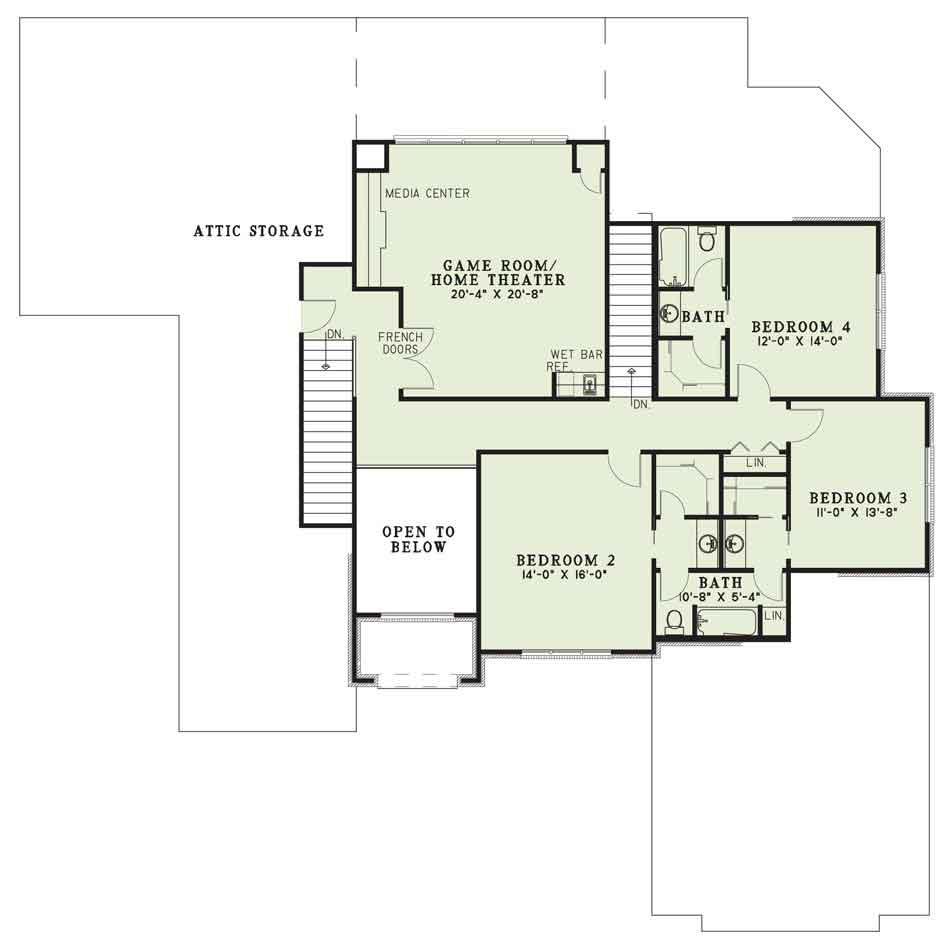

House Plan NDG 671 Upper Floor
House Plan NDG 671 Main Floor
House Plan NDG 671 Upper Floor

Floor plans

NDG 671

House Plan 671 Dogwood Avenue, French Classical House Plan

PDF: $1,550.00

Plan Details

  • Plan Number: NDG 671
  • Total Living Space:4360Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: 1
  • Garage: Yes 3 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 74
  • Width In.: 4
  • Depth Ft.: 74
  • Depth In.: 8

Description

Under-stated elegance comes to mind by way of this Nelson Design Group home plan. A double door entry and interior columns set an exquisite tone for this family-friendly design. The stylish kitchen with large square prep island with seating will gather quite a crowd during entertaining while the nearby great room with an entire wall of built-ins and wall of windows lends a view of the column lined covered porch. Quietly located on the main level and rear of the home, the master suite has a quaint sitting area and bathroom packed with amenities galore. You’ll find an abundance of storage throughout this home and built-ins to assist in keeping organized and clutter-free. Upstairs you’ll find three spacious bedrooms, each with a private bathroom and a nearby game room/home theater; a much desired and deserved feature for your entire family. Think about it, massive plasma television and surround sound speaker system! Special areas such as these will give every family member a special place to enjoy.

Specifications

  • Total Living Space:4360Sq.Ft.
  • Main Floor: 2836 Sq.Ft
  • Upper Floor (Sq.Ft.): 1524 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 263 Sq.Ft.
  • Garage (Sq.Ft.): 835 Sq.Ft.
  • Total Square Feet: 5458 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 10
  • Upper Ceiling Height: 9
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 39
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
