House Plan 621 Birchwood Lane, French Traditional House Plan

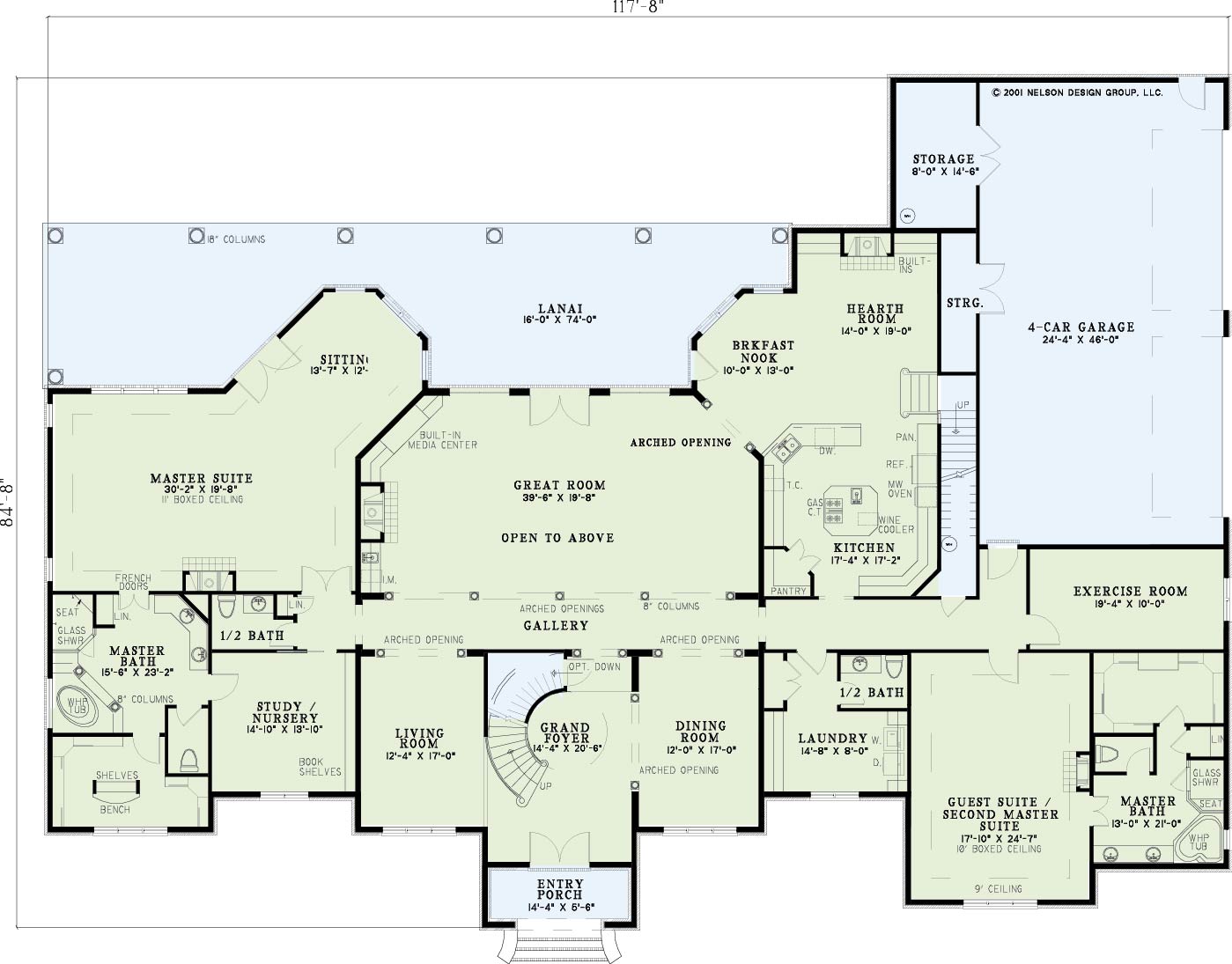

House Plan NDG 621 Main Floor

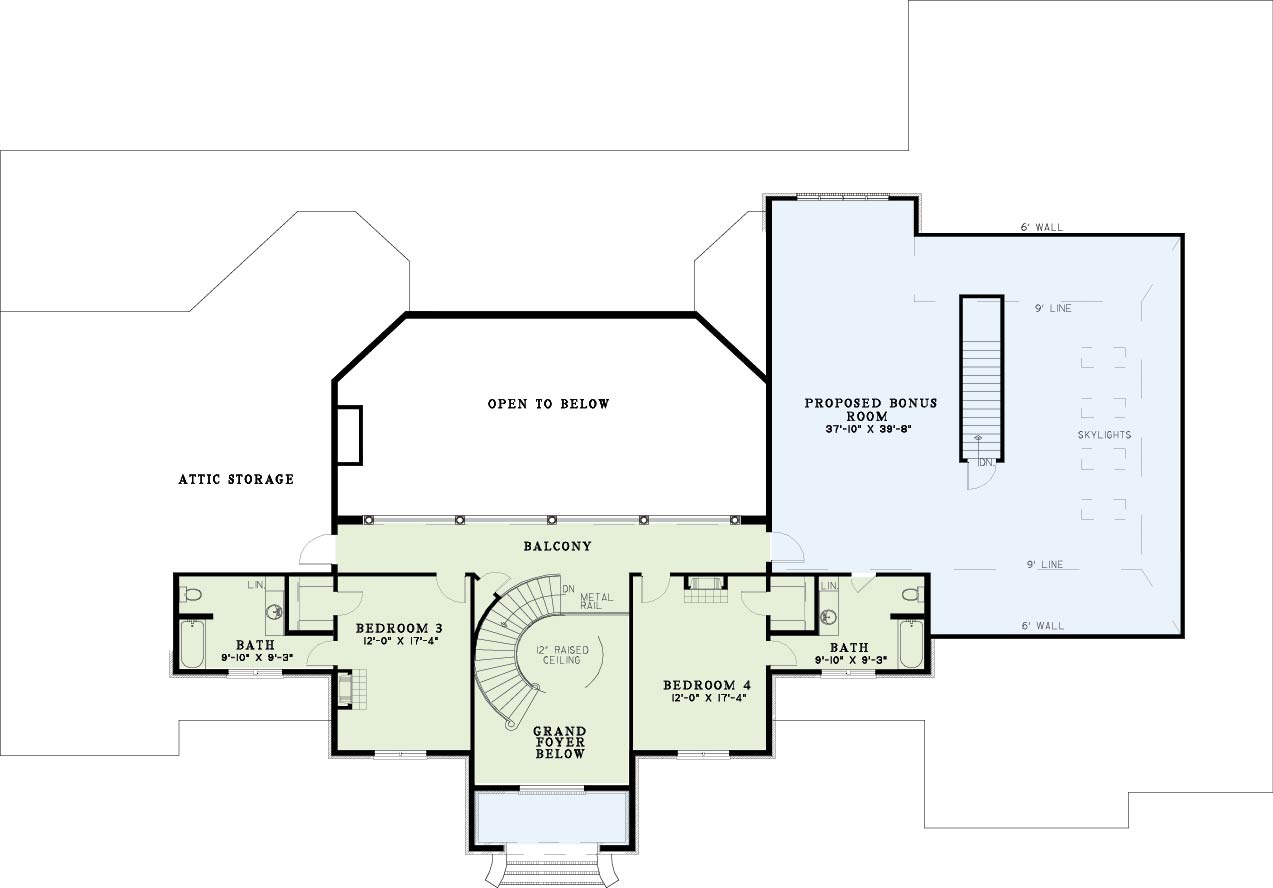

House Plan NDG 621 Upper Floor
House Plan NDG 621 Main Floor
House Plan NDG 621 Upper Floor

Floor plans

NDG 621

House Plan 621 Birchwood Lane, French Traditional House Plan

PDF: $2,050.00

Plan Details

  • Plan Number: NDG 621
  • Total Living Space:6388Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 4
  • Half Baths: 2
  • Garage: Yes 4 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 117
  • Width In.: 8
  • Depth Ft.: 84
  • Depth In.: 8

Description

This absolutely exquisite design is a dream home come true. A Grand Foyer separates a formal Living Room and Dining Room and has stairs leading to a balcony over looking the enormous great room. The main Master Suite has a large sitting bay, private access to the Study and French door entry to a luxurious Master Bath. Upstairs, placed above the four-car garage, is a large Bonus room with skylights and an additional stairwell to the main floor Hearth Room. The expansive Kitchen adjoins both Breakfast Nook and Hearth room and is located near the second Master Suite for an abundance of options. Fireplaces are placed throughout for warmth while a rear column-lined Lanai is perfect for entertaining as well as pure relaxation.

Specifications

  • Total Living Space:6388Sq.Ft.
  • Main Floor: 5338 Sq.Ft
  • Upper Floor (Sq.Ft.): 1050 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 1460 Sq.Ft.
  • Porch (Sq.Ft.): 1050 Sq.Ft.
  • Garage (Sq.Ft.): 1403 Sq.Ft.
  • Total Square Feet: 10301 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 10
  • Upper Ceiling Height: 9
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 36
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
