House Plan 516 Belmont Avenue, Traditional House Plan

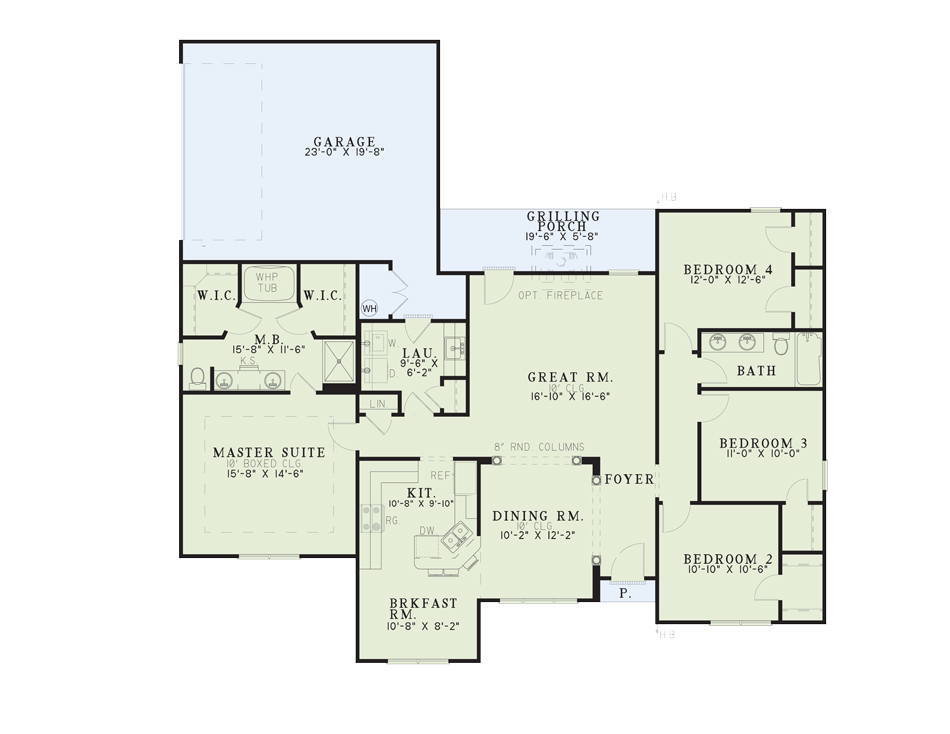

Floor plans
NDG 516
House Plan 516 Belmont Avenue, Traditional House Plan
PDF: $800.00
Plan Details
- Plan Number: NDG 516
- Total Living Space:1841Sq.Ft.
- Bedrooms: 4
- Full Baths: 2
- Half Baths: N/A
- Garage: Yes 2 Bay
- Garage Type: Side Load
- Carport: N/A
- Carport Type: N/A
- Stories: 1
- Width Ft.: 58
- Width In.: 8
- Depth Ft.: 56
- Depth In.: 6
Description
Two wonderful exteriors are available for this split bedroom plan. Enter a lovely foyer separating the column-lined formal dining room from three additional bedrooms and full bathroom. As this dining room gently accesses the kitchen it has a view of the great room fireplace for a cozy atmosphere while dining. Near the kitchen is a large laundry room with storage and access to the garage. And just steps away is the master suite bedroom with a ten foot boxed ceiling and private bath with walk-in closets, whirlpool tub, separate shower and double vanity with knee space.
Specifications
- Total Living Space:1841Sq.Ft.
- Main Floor: 1841 Sq.Ft
- Upper Floor (Sq.Ft.): N/A
- Lower Floor (Sq.Ft.): N/A
- Bonus Room (Sq.Ft.): N/A
- Porch (Sq.Ft.): 206 Sq.Ft.
- Garage (Sq.Ft.): 437 Sq.Ft.
- Total Square Feet: 2484 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: Yes
- Main Ceiling Height: 9
- Upper Ceiling Height: N/A
- Lower Ceiling Height: N/A
- Roof Type: Shingle
- Main Roof Pitch: 8:12
- Porch Roof Pitch: 8:12
- Roof Framing Description: Stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 21
- Ridge Height (In.): 11
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
