House Plan 1192B Clearwater Creek, Rustic House Plan
Floor plans
NDG 1192B
House Plan 1192B Clearwater Creek, Rustic House Plan
Plan Details
- Plan Number: NDG 1192B
- Total Living Space:3016Sq.Ft.
- Bedrooms: 4
- Full Baths: 3
- Half Baths: 1
- Garage: 2 Bay Yes
- Garage Type: Side Load
- Carport: N/A
- Carport Type: N/A
- Stories: 1.5
- Width Ft.: 54
- Width In.: 6
- Depth Ft.: 71
- Depth In.: 6
Description

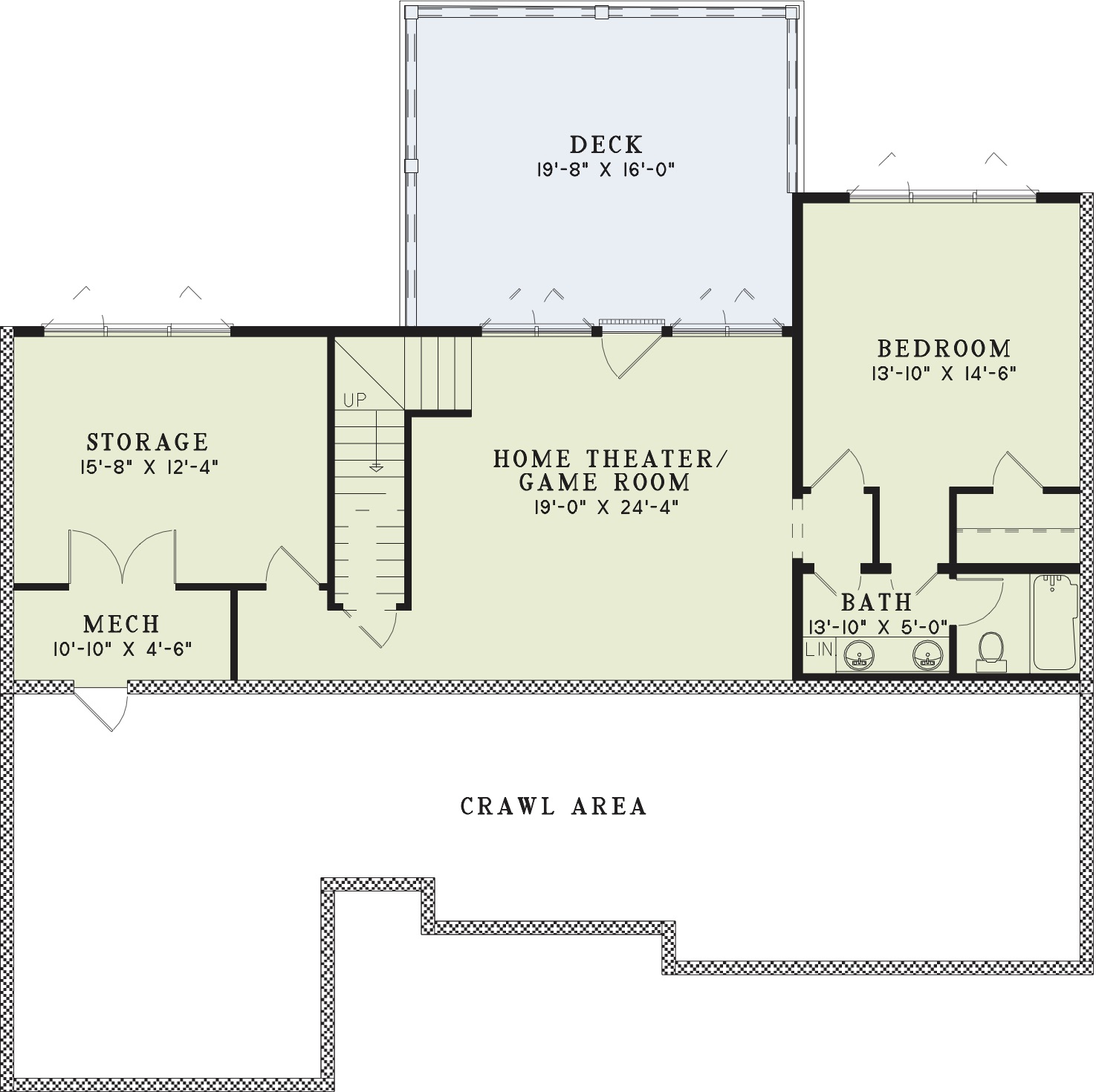

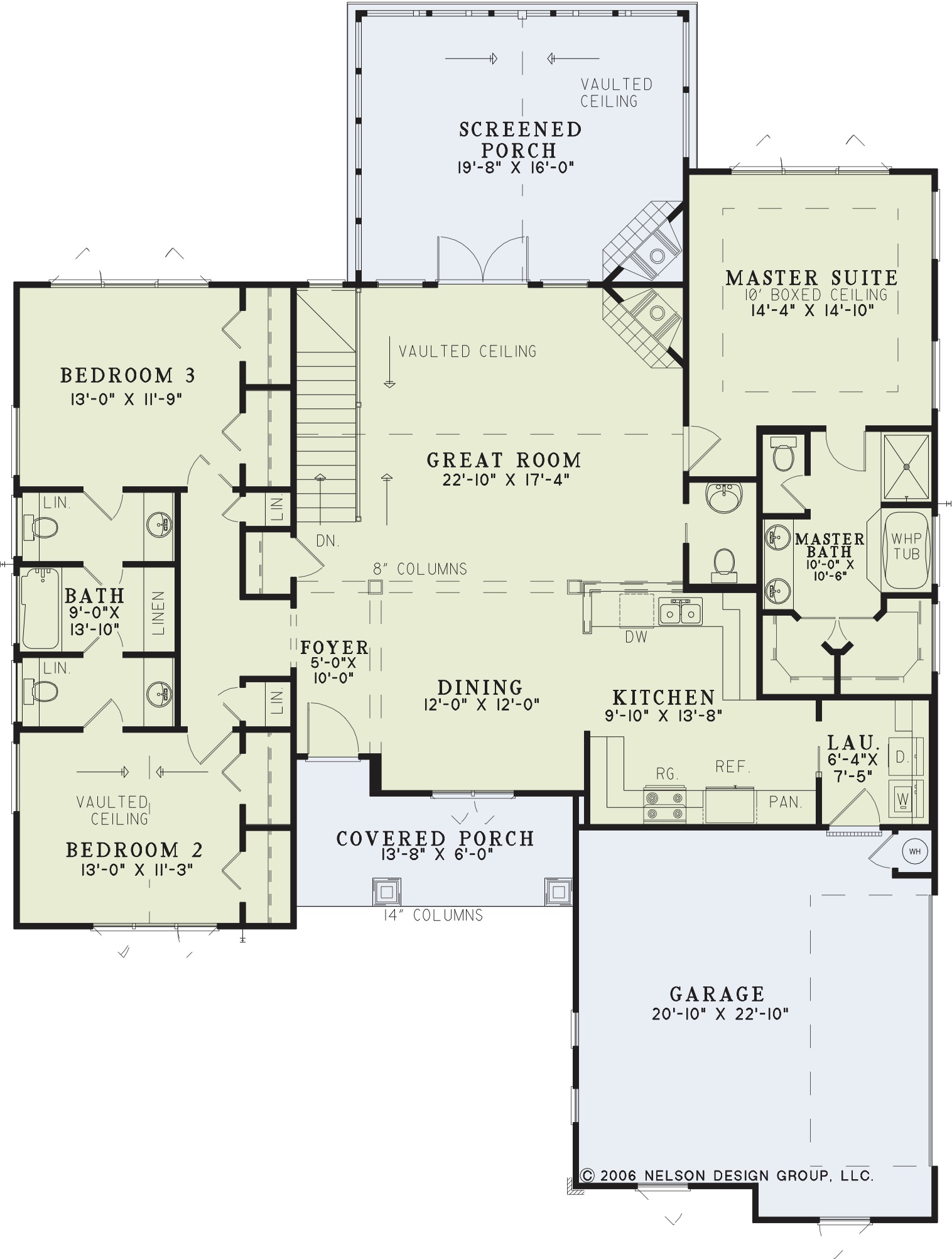

This Rustic Ridge home is a perfect retreat ideal for family and friends to gather in. The great room opens to the screened in porch, both having fireplaces. The master suite has a 10′ boxed ceiling, whirlpool tub, shower, and 2 walk-in closets. Downstairs is another bedroom with a full bathroom, a storage room, and a home theater/game room that opens out to a deck.
Specifications
- Total Living Space:3016Sq.Ft.
- Main Floor: 1917 Sq.Ft
- Upper Floor (Sq.Ft.): N/A
- Lower Floor (Sq.Ft.): 1099 Sq.Ft.
- Bonus Room (Sq.Ft.): N/A
- Porch (Sq.Ft.): 421 Sq.Ft.
- Garage (Sq.Ft.): 477 Sq.Ft.
- Total Square Feet: 3914 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: Yes
- Main Ceiling Height: 9
- Upper Ceiling Height: N/A
- Lower Ceiling Height: 10
- Roof Type: Shingle
- Main Roof Pitch: 10:12
- Porch Roof Pitch: N/A
- Roof Framing Description: Stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 23
- Ridge Height (In.): 9
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
