House Plan 472 Spruce Street, Craftsman Bungalow House Plan

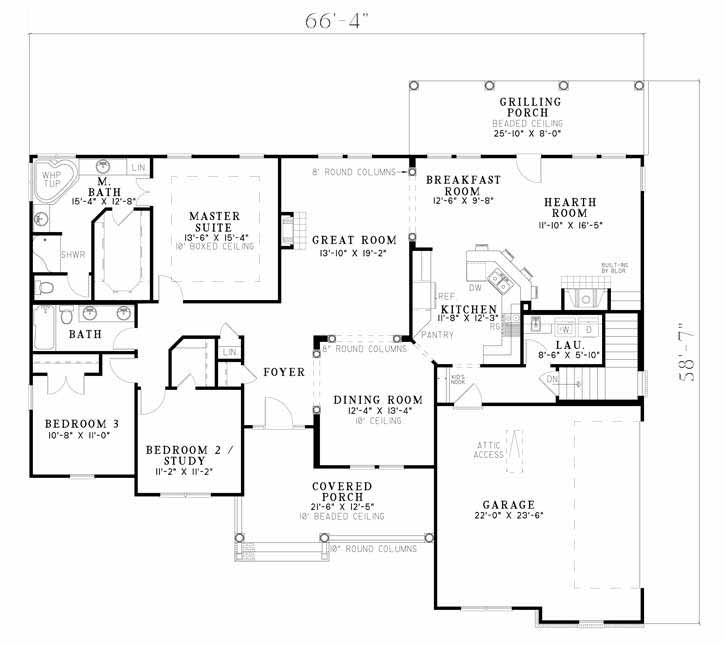

House Plan NDG 472 Main Floor

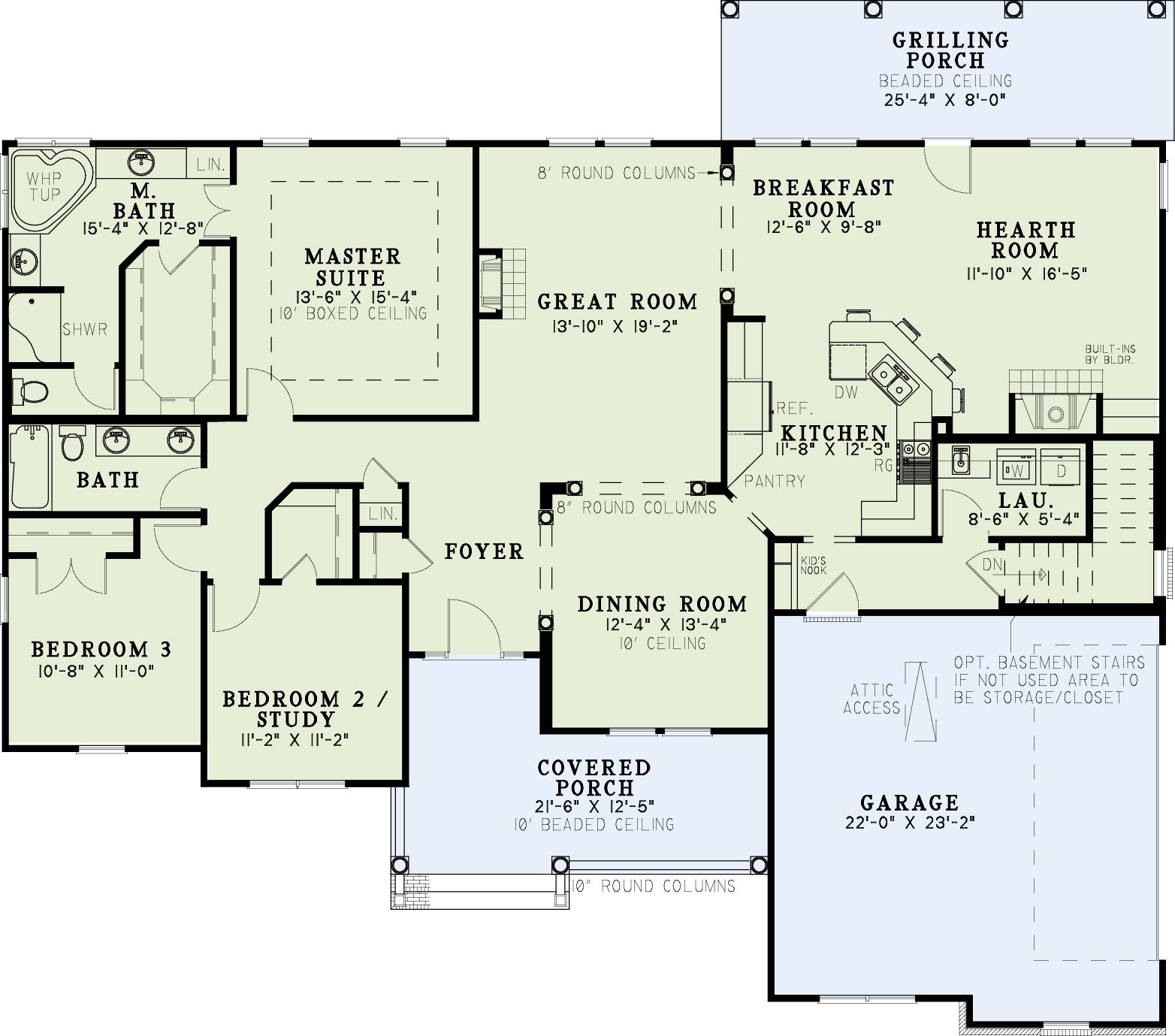

House Plan NDG 472 Main Floor

Floor plans

NDG 472

House Plan 472 Spruce Street, Craftsman Bungalow House Plan

PDF: $1,100.00

Plan Details

  • Plan Number: NDG 472
  • Total Living Space:2029Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 66
  • Width In.: 4
  • Depth Ft.: 58
  • Depth In.: 7

Description

You’ll enjoy entertaining family during those frigid winter months as holiday visitors gather around the inviting fireplaces in this stunning home. The open floor plan allows everyone plenty of room to roam and the expansive kitchen allows for effortless service to all living areas. Overnight guests will enjoy the view from their window seat snuggled within an entire wall of built-in bookshelves. The luxurious master suite features a corner whirlpool tub with ample natural lighting and a 10′ boxed ceiling.

Specifications

  • Total Living Space:2029Sq.Ft.
  • Main Floor: 2029 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 401 Sq.Ft.
  • Garage (Sq.Ft.): 526 Sq.Ft.
  • Total Square Feet: 2956 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 28
  • Ridge Height (In.): 1
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
