House Plan 190B Cherry Street, Traditional House Plan

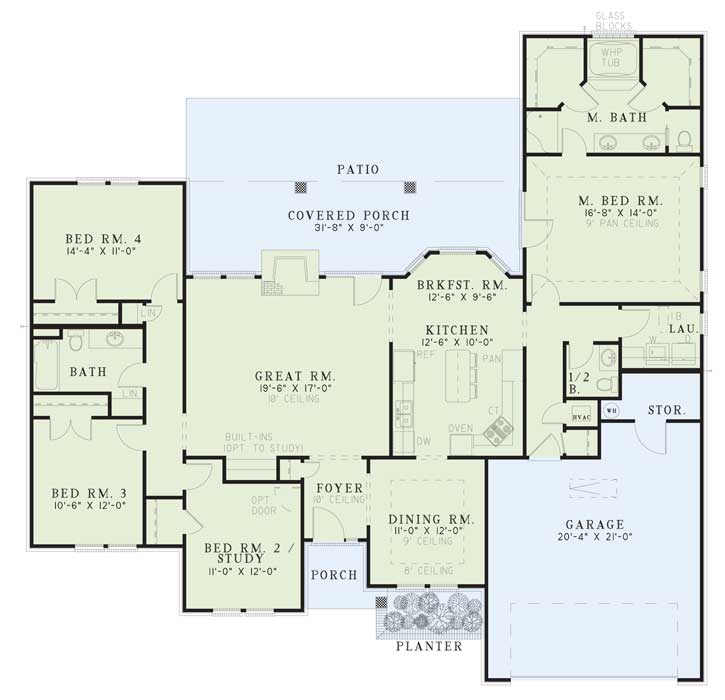

House Plan NDG 190B Main Floor
House Plan NDG 190B Main Floor

Floor plans

House Plan NDG 190B Main Floor
NDG 190B

House Plan 190B Cherry Street, Traditional House Plan

PDF: $1,100.00

Plan Details

  • Plan Number: NDG 190B
  • Total Living Space:2107Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: 1
  • Garage: Yes 2 Bay
  • Garage Type: Front Load
  • Carport: No
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 64
  • Width In.: 8
  • Depth Ft.: 62
  • Depth In.: N/A

Description

Imagine welcoming guests into this split bedroom home. The spacious dining room will be superb for your formal dinner parties followed by coffee in the comfortable great room. The morning sun rays shining through the bay window of the breakfast room is a beginning to each day. As night falls, your secluded master suite has a private access to the rear porch- perfect for watching the sun set. Rest and relaxation is found in your luxurious master bath with whirlpool tub and “his and her” walk-in closets provide ample storage space.

Specifications

  • Total Living Space:2107Sq.Ft.
  • Main Floor: 2107 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Basement (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 408 Sq.Ft.
  • Garage (Sq.Ft.): 427 Sq.Ft.
  • Total Square Feet: 2942 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 21
  • Ridge Height (In.): 2
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A

Customize This Plan

Need to make changes? We will get you a free price quote!

Modify This Plan

Property Attachments
