House Plan 169 Elm Street, Country Home House Plan

House Plan 169 Elm Street, Country Home House Plan

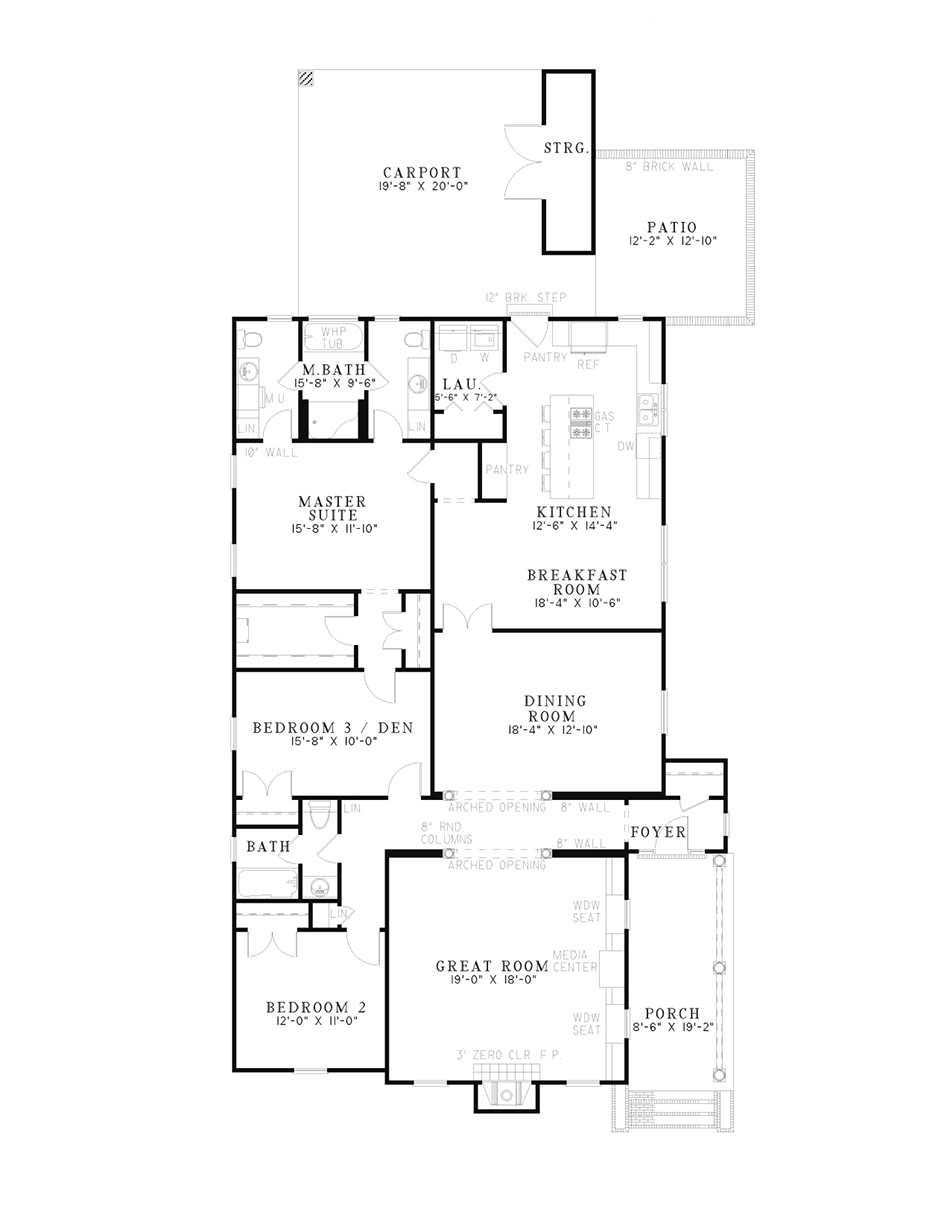

Floor plans

NDG 169

House Plan 169 Elm Street, Country Home House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 169
  • Total Living Space:2140Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: No
  • Garage Type: N/A
  • Carport: Yes
  • Carport Type: Side Load
  • Stories: 1
  • Width Ft.: 40
  • Width In.: N/A
  • Depth Ft.: 84
  • Depth In.: 4

Description

The charming front porch and comfortable interior help make this house a place you can call home. In the entry hall, twin arched openings beckon guests to the living and dining areas. The two window seats flanking the great room’s built-in media center are ideal spots for the kids to anxiously await the return of Mom or Dad. A large island doubling as an eat-at bar separates the kitchen from the breakfast room.

Specifications

  • Total Living Space:2140Sq.Ft.
  • Main Floor: 2140 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 235 Sq.Ft.
  • Garage (Sq.Ft.): 394 Sq.Ft.
  • Total Square Feet: 2769 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 21
  • Ridge Height (In.): 2
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A

Customize This Plan

Need to make changes? We will get you a free price quote!

Modify This Plan

Property Attachments

Plan Package

  • PDF ($1,000.00)
    • CAD ($2,000.00)
    • Five Set ($1,100.00)
    • PDF ($1,000.00)
    • PDF + Unlimited Build ($1,700.00)
  • House Plan Options

    Crawl Space ($0.00)
    • Crawl Space ($0.00)
    • Optional Basement ($299.00)
    • Optional Daylight Basement ($299.00)
    • Slab ($0.00)
  • --None--
    • --None--
    • Five Sets (+$400.00)
    • Four Sets (+$320.00)
    • One Set (+$80.00)
    • Three Sets (+$240.00)
    • Two Sets (+$160.00)
