House Plan 128 Cherry Street, Traditional House Plan

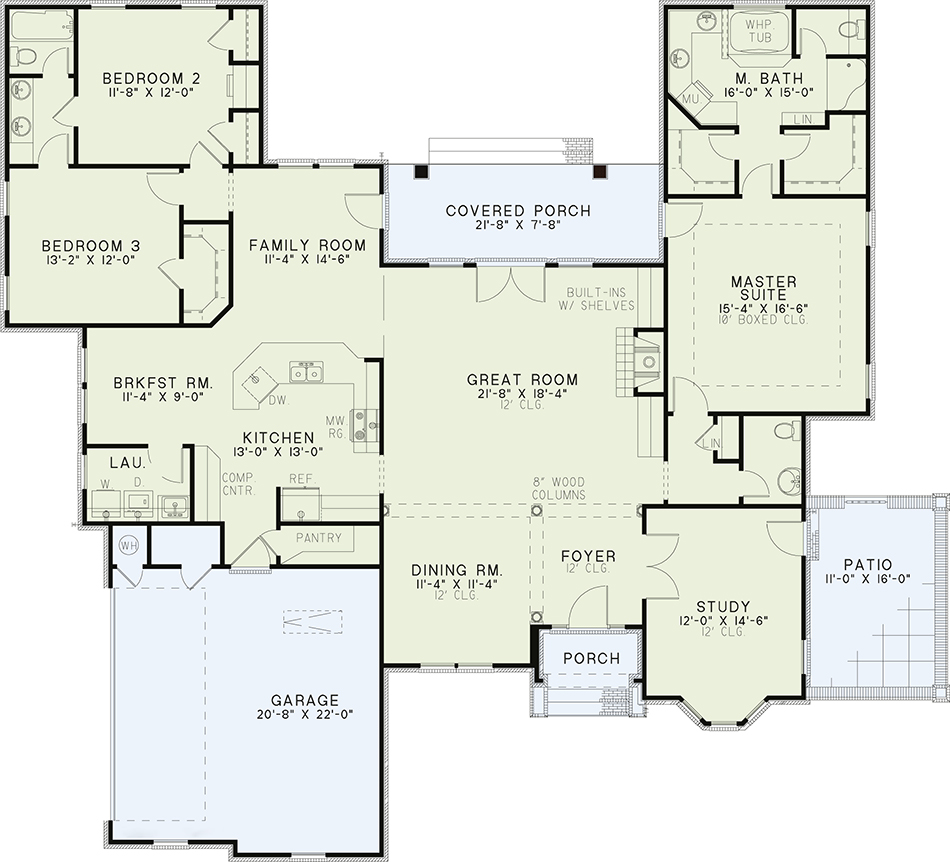

House Plan NDG 128 Main Floor
>

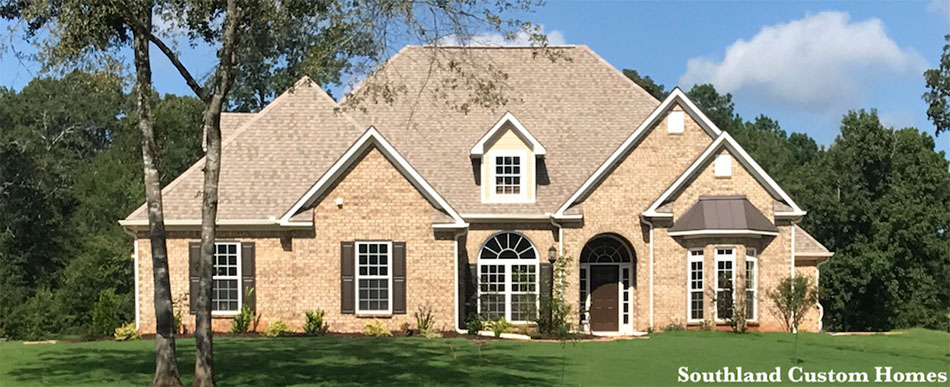

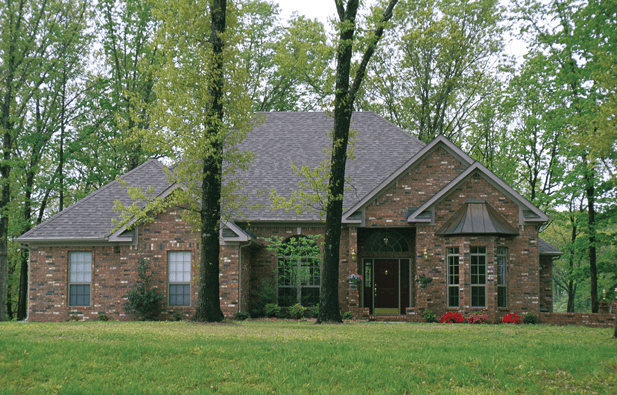

House Plan NDG 128 Front Exterior>
House Plan NDG 128 Front Exterior>
House Plan NDG 128 Front Exterior>
House Plan NDG 128 Main Floor
House Plan NDG 128 Front Exterior
House Plan NDG 128 Front Exterior
House Plan NDG 128 Front Exterior

Floor plans

NDG 128

House Plan 128 Cherry Street, Traditional House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: NDG 128
  • Total Living Space:2444Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: 2 Bay Yes
  • Garage Type: Side Load
  • Carport: No
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 67
  • Width In.: N/A
  • Depth Ft.: 66
  • Depth In.: N/A

Description

Capture the true essence of tradition in this home. Entering the home, you’ll notice the attractive French doors opening to the study with an inviting private patio that is the perfect niche to finish that novel. While preparing dinner in your spacious kitchen, you can keep a close eye on the kids completing their homework in the convenient computer center. Dads will enjoy the rear covered porch accessible from several rooms. After the kids are tucked away, escape to your master suite with whirlpool bath.

Specifications

  • Total Living Space:2444Sq.Ft.
  • Main Floor: 2444 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 240 Sq.Ft.
  • Garage (Sq.Ft.): 455 Sq.Ft.
  • Total Square Feet: 3139 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 30
  • Ridge Height (In.): 5
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A

Customize This Plan

Need to make changes? We will get you a free price quote!

Modify This Plan
