House Plan 990 Georgia Avenue, Midtown Place House Plan

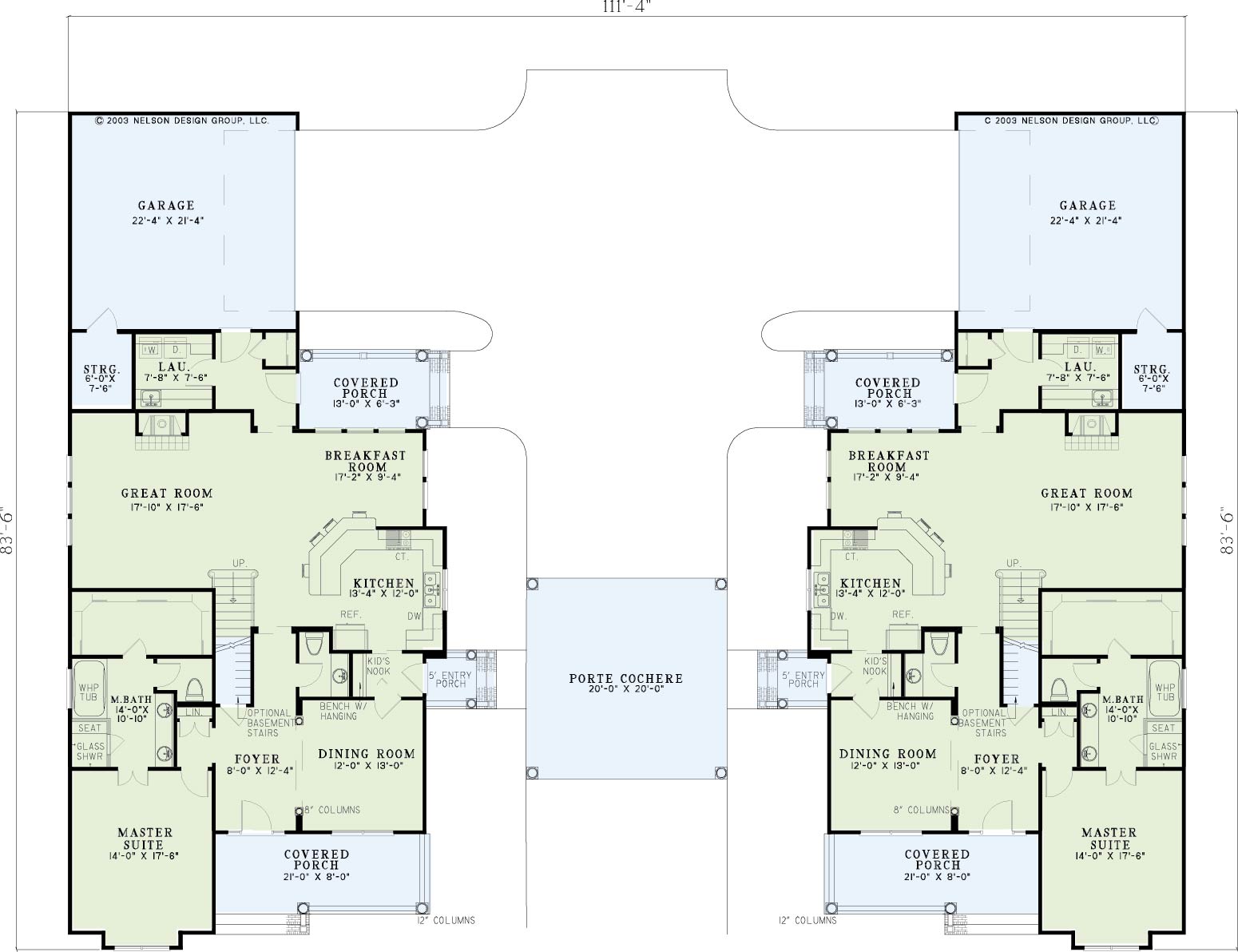

House Plan NDG 990 Main Floor

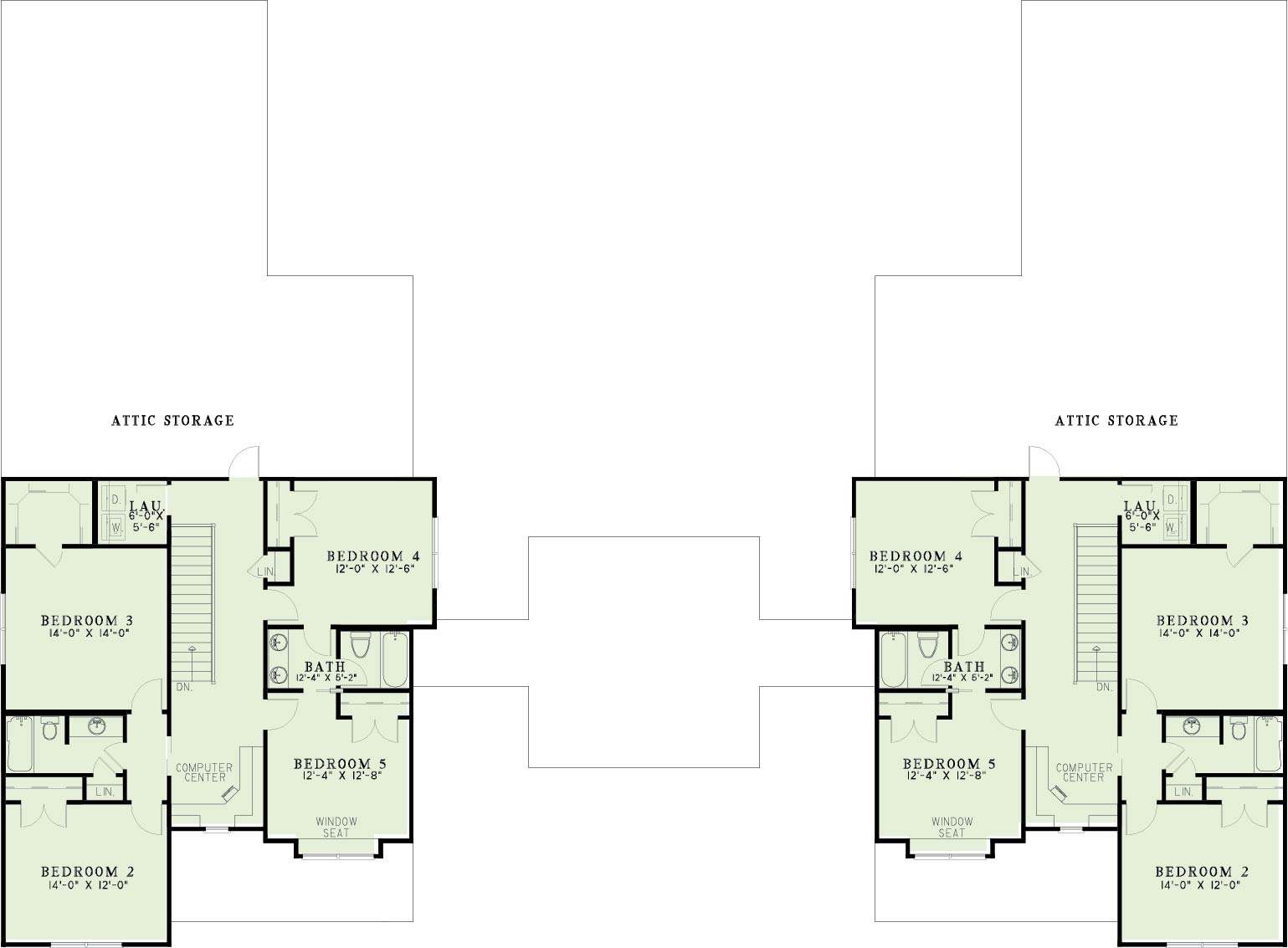

House Plan NDG 990 Upper Floor
House Plan NDG 990 Main Floor
House Plan NDG 990 Upper Floor

Floor plans

NDG 990

House Plan 990 Georgia Avenue, Midtown Place House Plan

PDF: $1,550.00

Plan Details

  • Plan Number: NDG 990
  • Total Living Space:3046Sq.Ft.
  • Bedrooms: 5
  • Full Baths: 3
  • Half Baths: 1
  • Garage: Yes 2 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 111
  • Width In.: 4
  • Depth Ft.: 83
  • Depth In.: 6

Description

Nostalgia for the past with the need for modern convenience in a neighborhood setting makes this traditional dual home design the perfect choice. Some of the exterior highlights are a covered front porch and an entry porch in the rear of the home. The home features a main floor master suite with a master bath with a separate whirlpool bath and shower. Upstairs the growing family will appreciate three bedrooms and a home theater/game room.

Specifications

  • Total Living Space:3046Sq.Ft.
  • Main Floor: 1803 Sq.Ft
  • Upper Floor (Sq.Ft.): 1243 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 726 Sq.Ft.
  • Garage (Sq.Ft.): 538 Sq.Ft.
  • Total Square Feet: 4310 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 35
  • Ridge Height (In.): 3
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
