House Plan 984 Cambridge Court, Multi-Family House Plan

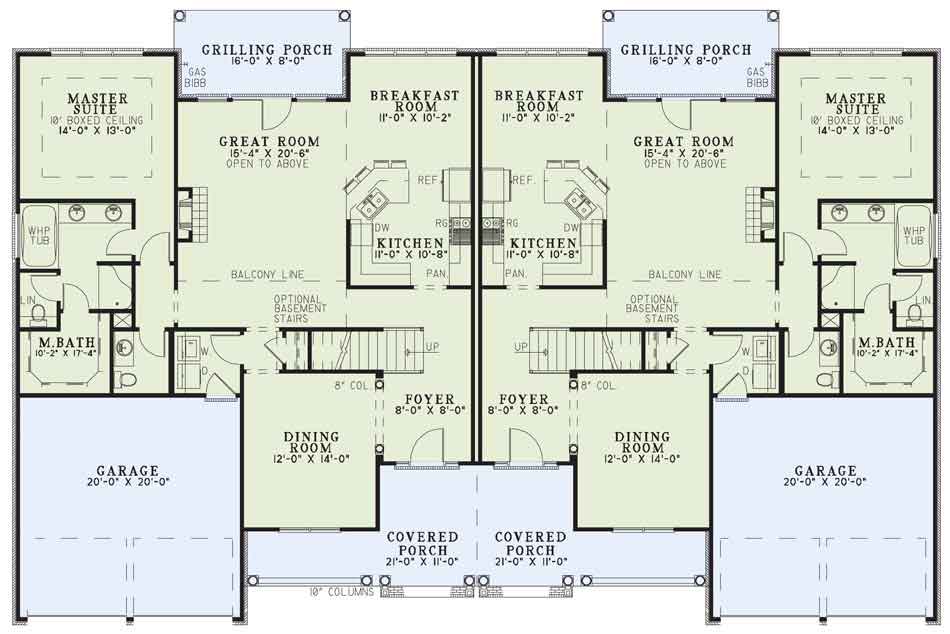

House Plan NDG 984 Main Floor

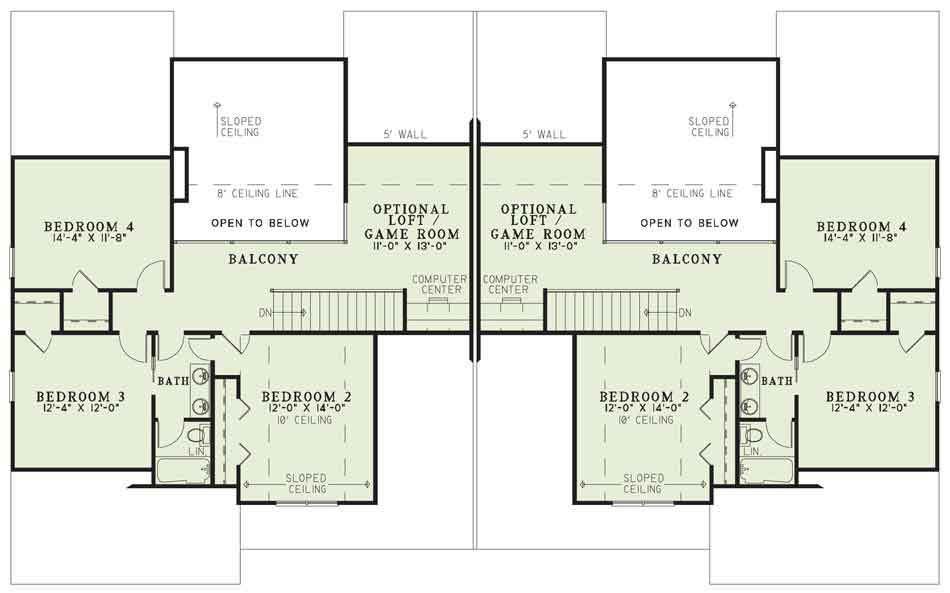

House Plan NDG 984 Upper Floor
>
House Plan NDG 984 Main Floor
House Plan NDG 984 Upper Floor

Floor plans

NDG 984

House Plan 984 Cambridge Court, Multi-Family House Plan

PDF: $1,850.00

Plan Details

  • Plan Number: NDG 984
  • Total Living Space:2244Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: 1
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 83
  • Width In.: 7
  • Depth Ft.: 55
  • Depth In.: 6

Description

Neighbors will adore having this multifamily design on their street. The unique blend of different sidings, carriage-style garage doors and gabled roof lines make this investment property an eye catcher. Each of the two units has four bedrooms, 2 and 1/2 bathrooms and plenty of storage space. The main-level master suite has an elegant 10-foot boxed ceiling and private bathroom with all of the amenities. A centrally located great room fireplace and lovely view of the balcony above. A nearby grilling porch will serve a multitude of uses. Upstairs you’ll find three spacious bedrooms with large closets, a full bathroom with separated tub and vanity areas and a family-friendly loft/game room with computer-center. What more can a family ask for?

Specifications

  • Total Living Space:2244Sq.Ft.
  • Main Floor: 1449 Sq.Ft
  • Upper Floor (Sq.Ft.): 795 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 181 Sq.Ft.
  • Porch (Sq.Ft.): 287 Sq.Ft.
  • Garage (Sq.Ft.): 416 Sq.Ft.
  • Total Square Feet: 3128 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 29
  • Ridge Height (In.): 9
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
