House Plan 982 Caroline Drive, Heritage House Plan

House Plan 982 Caroline Drive, Heritage House Plan

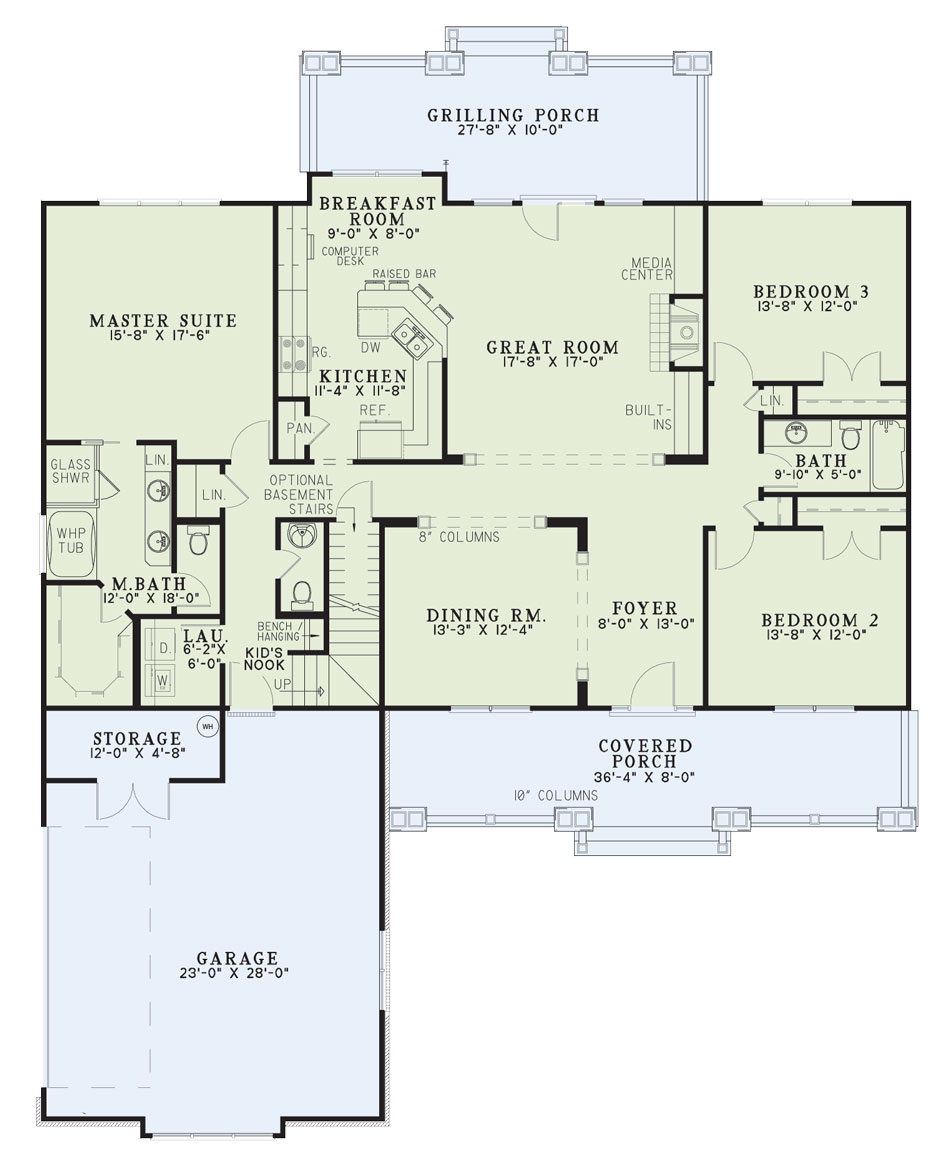

House Plan NDG 982 Main Floor

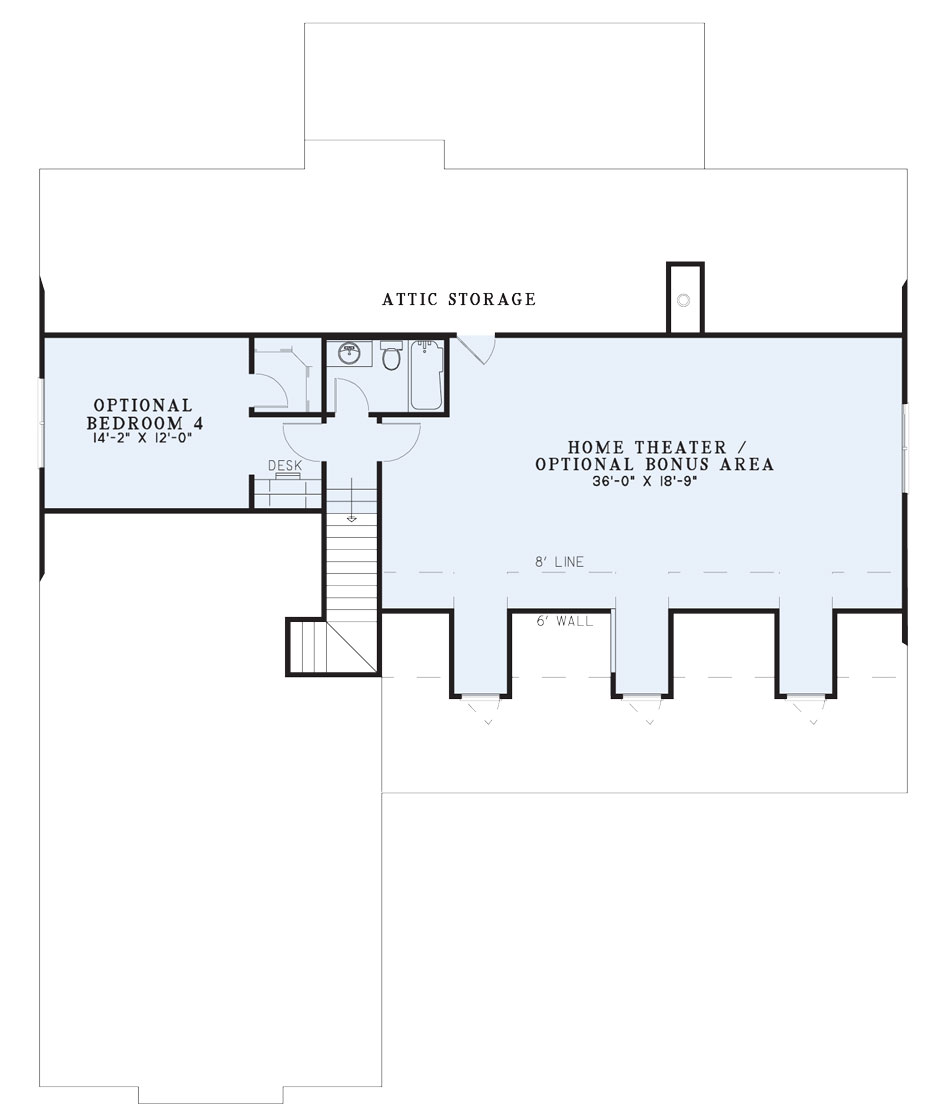

House Plan NDG 982 Upper Floor/Bonus Room

Floor plans

NDG 982

House Plan 982 Caroline Drive, Heritage House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: NDG 982
  • Total Living Space:2129Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 3
  • Half Baths: 1
  • Garage: Yes 2 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 60
  • Width In.: N/A
  • Depth Ft.: 74
  • Depth In.: 8

Description

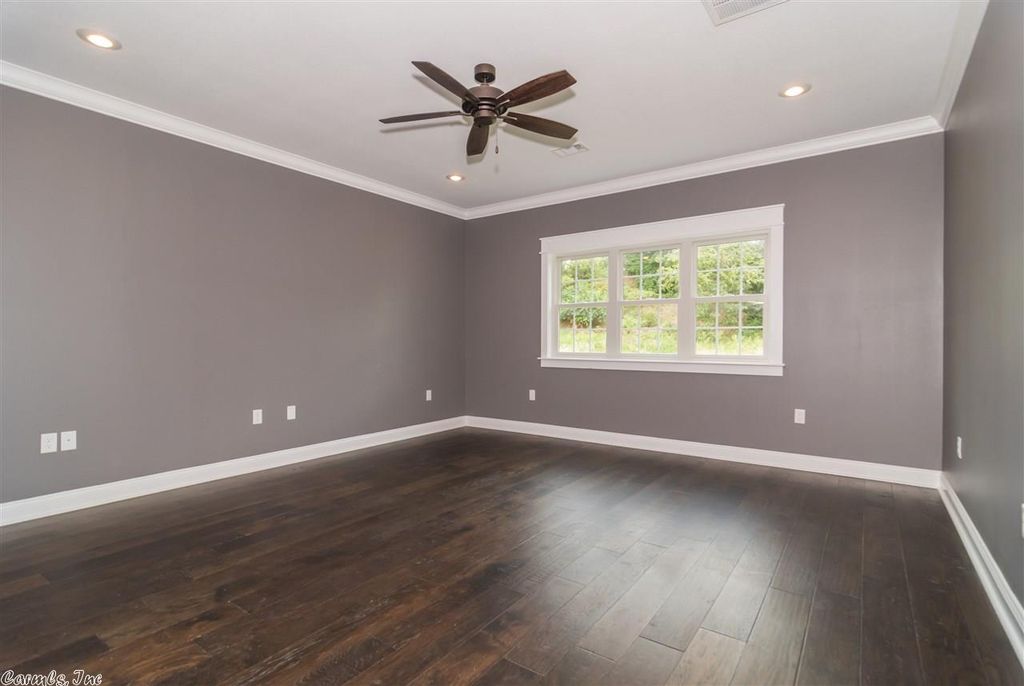

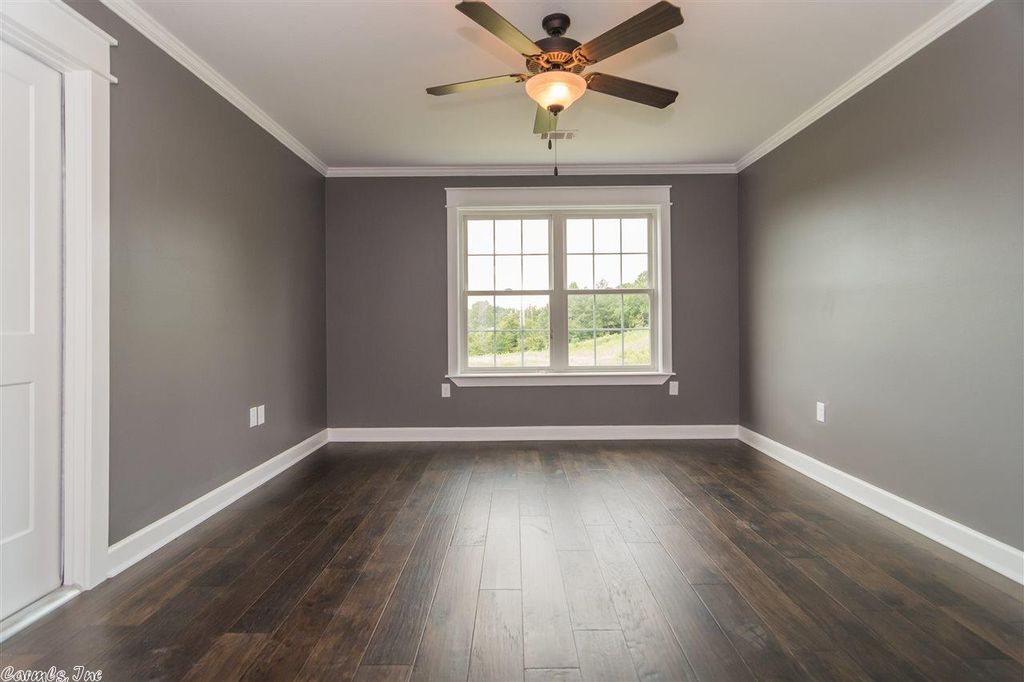

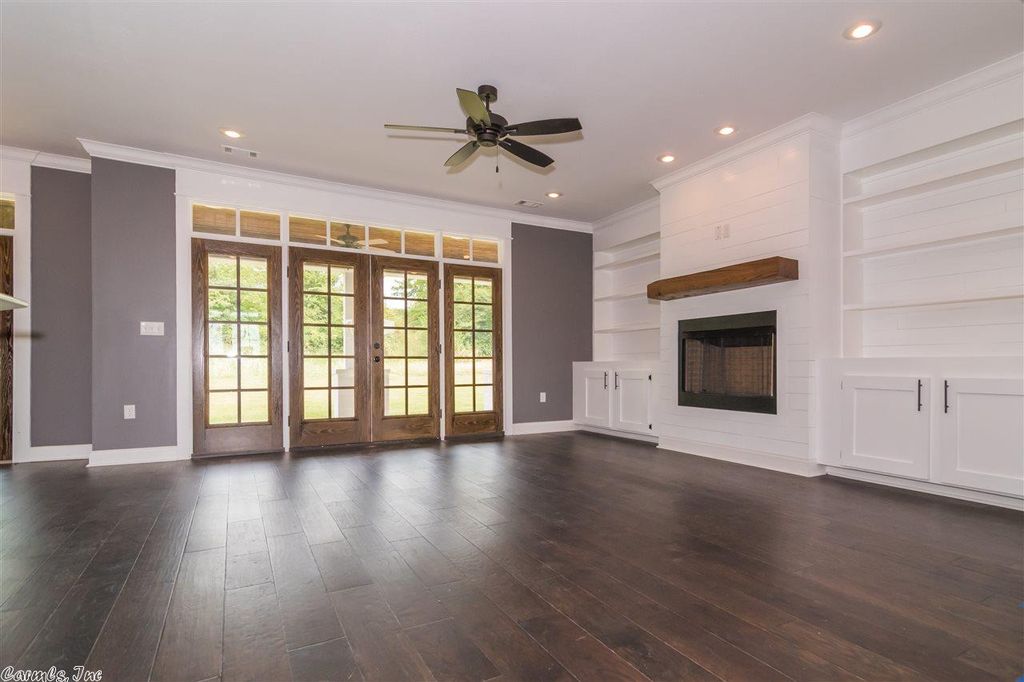

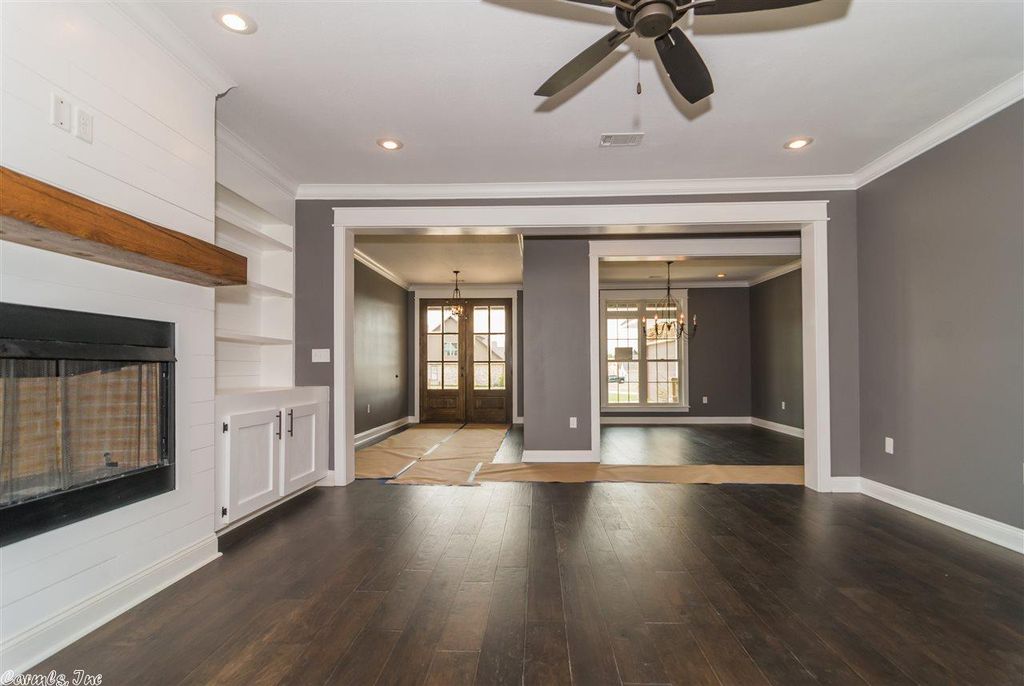

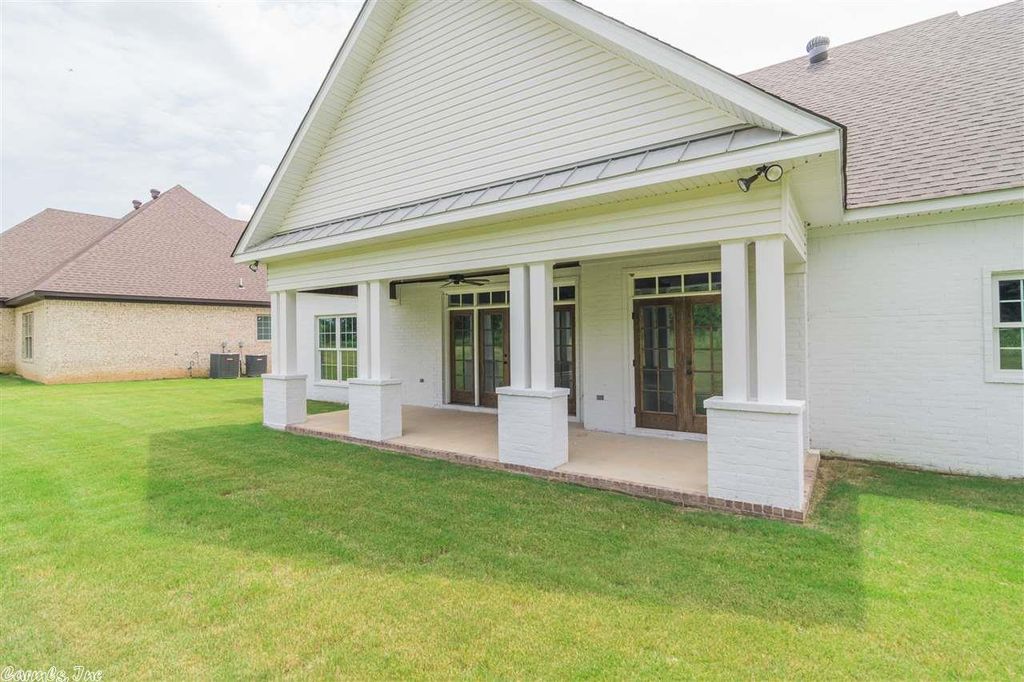

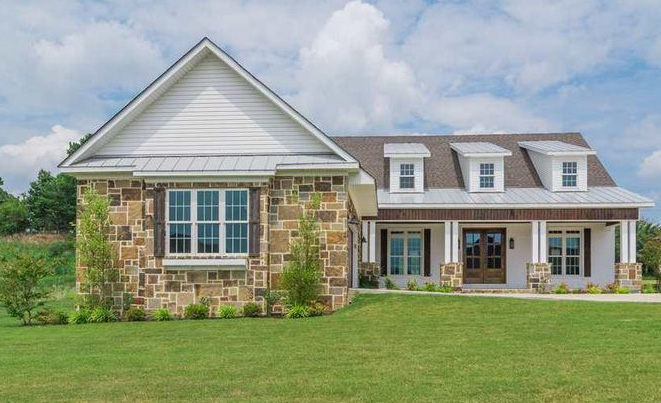

Bold columns on the front covered porch of this craftsman style Nelson Design Group plan complement the exterior. This split bedroom design allows privacy for all family members and guests. Entertaining is made easy with the openness of the great and dining rooms and with the addition of the grilling porch at the rear of this home. The master suite and two additional bedrooms are comfortably located on the main floor of this home. The upper floor provides bonus space that will put your imagination to work including options for future home theater enjoyment and another bedroom for guests or an addition to your family.

Specifications

  • Total Living Space:2129Sq.Ft.
  • Main Floor: 2129 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A

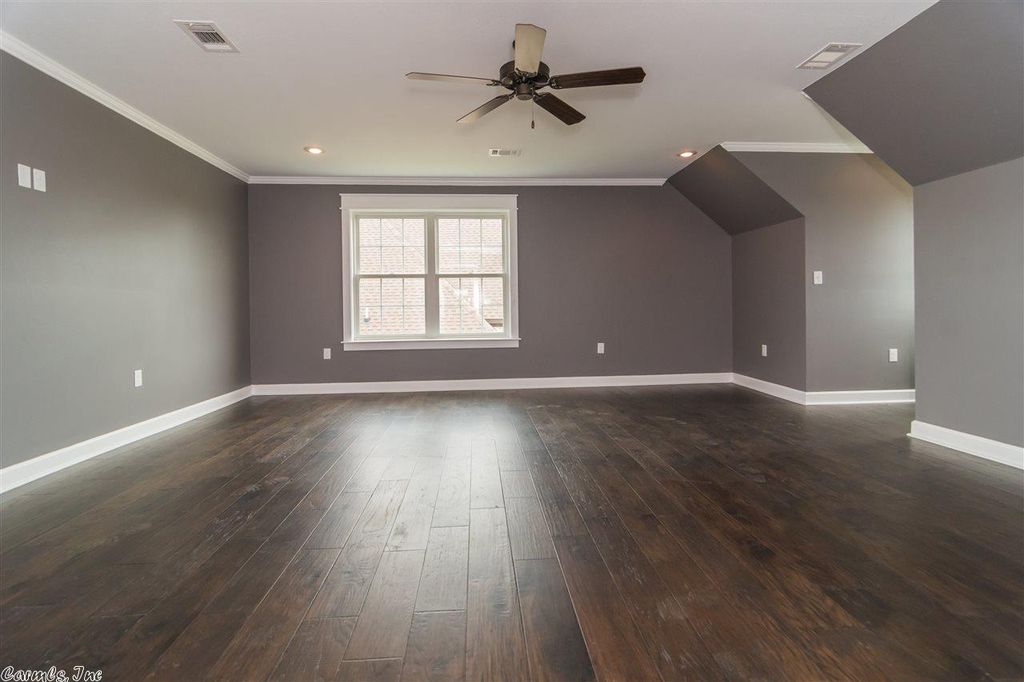

  • Bonus Room (Sq.Ft.): 316 Sq.Ft.
  • Porch (Sq.Ft.): 547 Sq.Ft.
  • Garage (Sq.Ft.): 682 Sq.Ft.
  • Total Square Feet: 3674 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 26
  • Ridge Height (In.): 5
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A

Customize This Plan

Need to make changes? We will get you a free price quote!

Modify This Plan

Property Attachments

Plan Package

  • PDF ($1,200.00)
    • CAD ($2,400.00)
    • Five Set ($1,300.00)
    • PDF ($1,200.00)
    • PDF + Unlimited Build ($1,900.00)
  • House Plan Options

    Crawl Space ($0.00)
    • Crawl Space ($0.00)
    • Optional Basement ($299.00)
    • Optional Daylight Basement ($299.00)
    • Slab ($0.00)
  • --None--
    • --None--
    • Five Sets (+$400.00)
    • Four Sets (+$320.00)
    • One Set (+$80.00)
    • Three Sets (+$240.00)
    • Two Sets (+$160.00)
