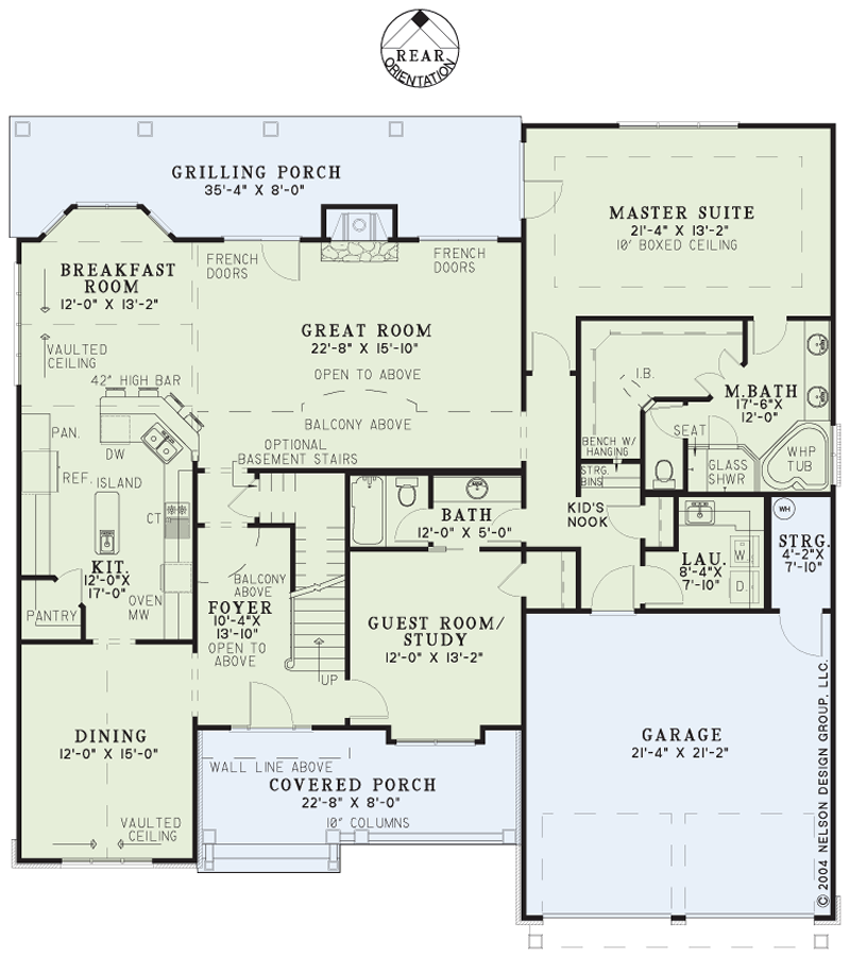

House Plan NDG 947 Main Floor

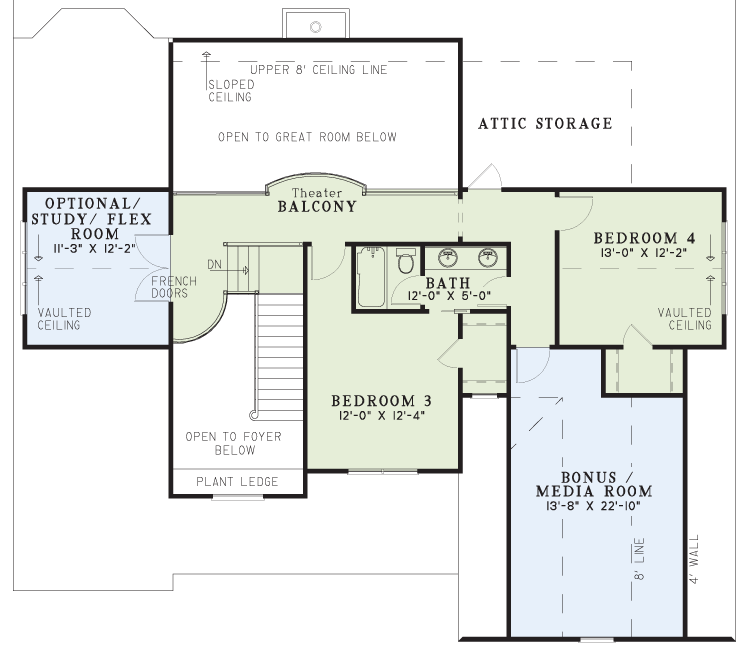

House Plan NDG 947 Upper Floor
>
House Plan - NDG 947>
House Plan - NDG 947>
House Plan NDG 947 Main Floor
House Plan NDG 947 Upper Floor
House Plan - NDG 947
House Plan - NDG 947

Floor plans

NDG 947

House Plan 947 Abigail Place, Heritage House Plan

PDF: $1,350.00

Plan Details

  • Plan Number: NDG 947
  • Total Living Space:2755Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 57
  • Width In.: 4
  • Depth Ft.: 55
  • Depth In.: 10

Description

A creative blend of exterior materials gives this Nelson Design Group home a stunning facade. The generous great room will provide the perfect setting for family gatherings. Preparing and serving meals will be a breeze in this kitchen with adjoining breakfast and dining rooms. A spacious grilling porch also lends outdoor options. The master suite is nestled in the rear of this home on the main level. A trip to the upper floor offers balcony views of the great room and the foyer, as well as two more bedrooms and a media room option.

Specifications

  • Total Living Space:2755Sq.Ft.
  • Main Floor: 2084 Sq.Ft
  • Upper Floor (Sq.Ft.): 671 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 454 Sq.Ft.
  • Porch (Sq.Ft.): 438 Sq.Ft.
  • Garage (Sq.Ft.): 506 Sq.Ft.
  • Total Square Feet: 3699 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 32
  • Ridge Height (In.): 11
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
