House Plan 944 Ambrose Boulevard, Heritage House Plan
Floor plans
NDG 944
House Plan 944 Ambrose Boulevard, Heritage House Plan
Plan Details
- Plan Number: NDG 944
- Total Living Space:2955Sq.Ft.
- Bedrooms: 4
- Full Baths: 3
- Half Baths: N/A
- Garage: Yes 2 Bay
- Garage Type: Front Load
- Carport: N/A
- Carport Type: N/A
- Stories: 1.5
- Width Ft.: 58
- Width In.: 10
- Depth Ft.: 57
- Depth In.: N/A
Description

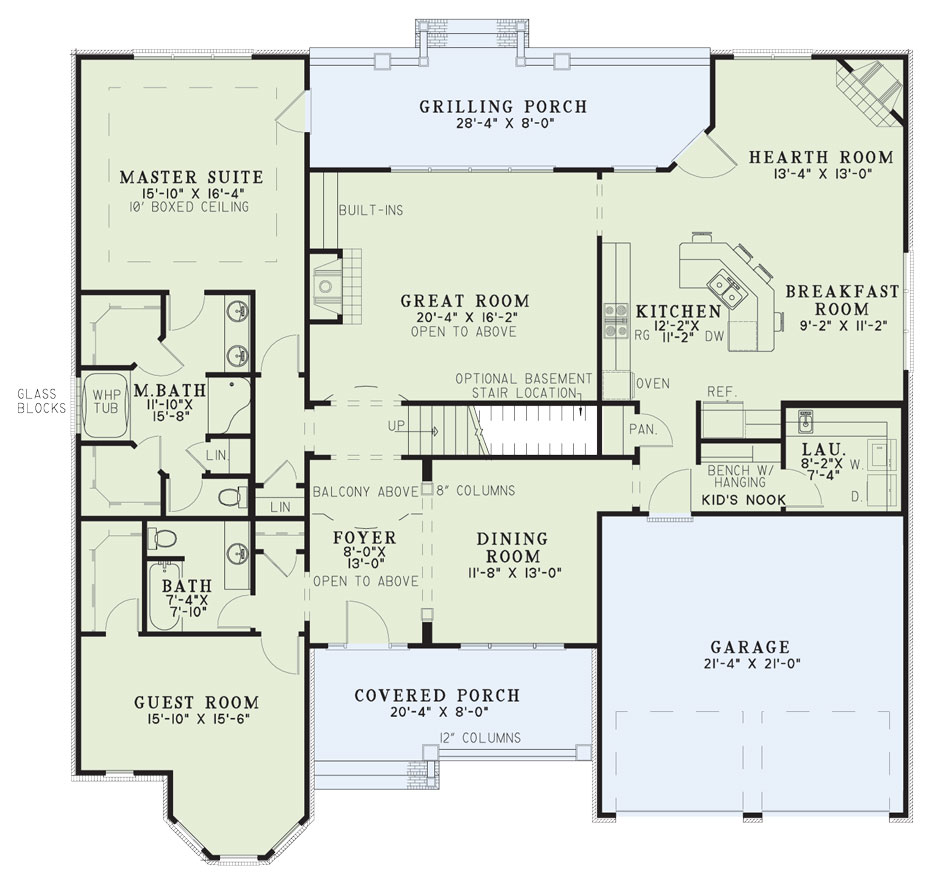

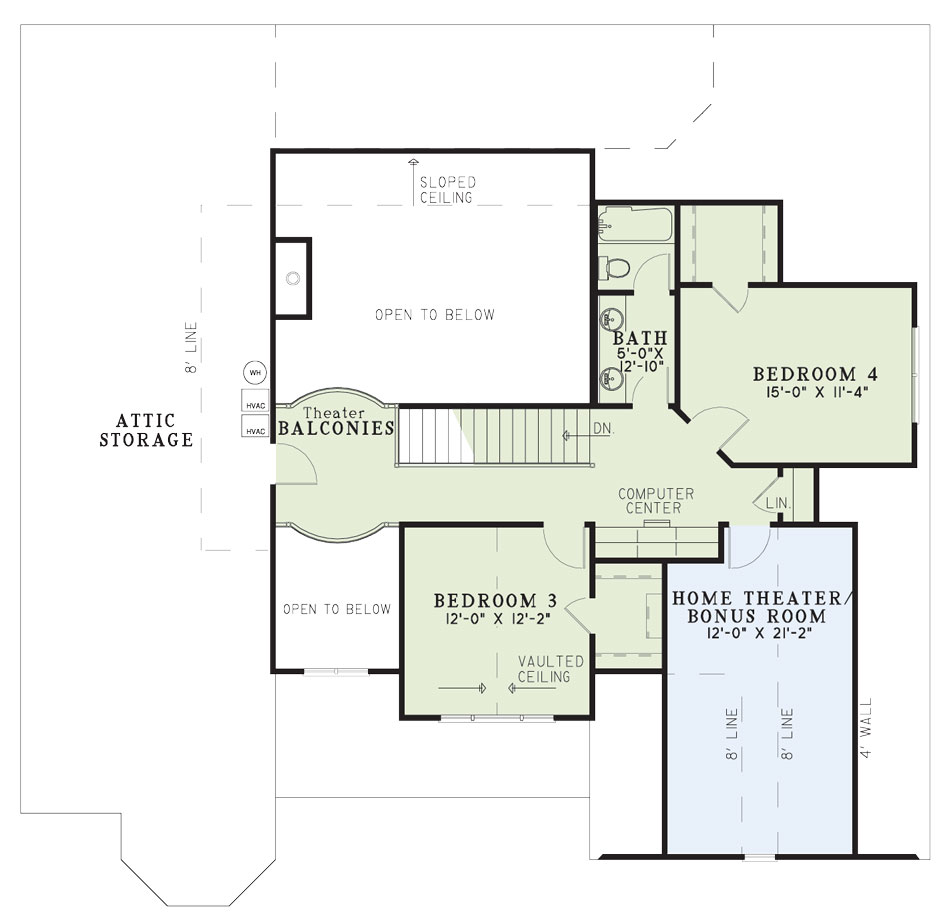

The interior of this Nelson Design Group home is as as the exterior. Guests will feel at home in the private guest room with bay window. Entertaining is easy with this kitchen! The adjoining breakfast and hearth rooms and the nearby dining room create endless options. The master suite, privately located, is elegantly adorned with a box ceiling while the master bath sports a whirlpool bath and two large walk-in closets. The upper level houses two theater balconies, a bonus room, and two bedrooms.
Specifications
- Total Living Space:2955Sq.Ft.
- Main Floor: 2245 Sq.Ft
- Upper Floor (Sq.Ft.): 710 Sq.Ft.
- Lower Floor (Sq.Ft.): N/A
- Bonus Room (Sq.Ft.): 261 Sq.Ft.
- Porch (Sq.Ft.): 384 Sq.Ft.
- Garage (Sq.Ft.): 467 Sq.Ft.
- Total Square Feet: 4067 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: Yes
- Main Ceiling Height: 9
- Upper Ceiling Height: 8
- Lower Ceiling Height: N/A
- Roof Type: Shingle
- Main Roof Pitch: 10:12
- Porch Roof Pitch: N/A
- Roof Framing Description: Stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 62
- Ridge Height (In.): 0
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
