House Plan 943 Guindel Lane, Country Home House Plan

House Plan 943 Guindel Lane, Country Home House Plan

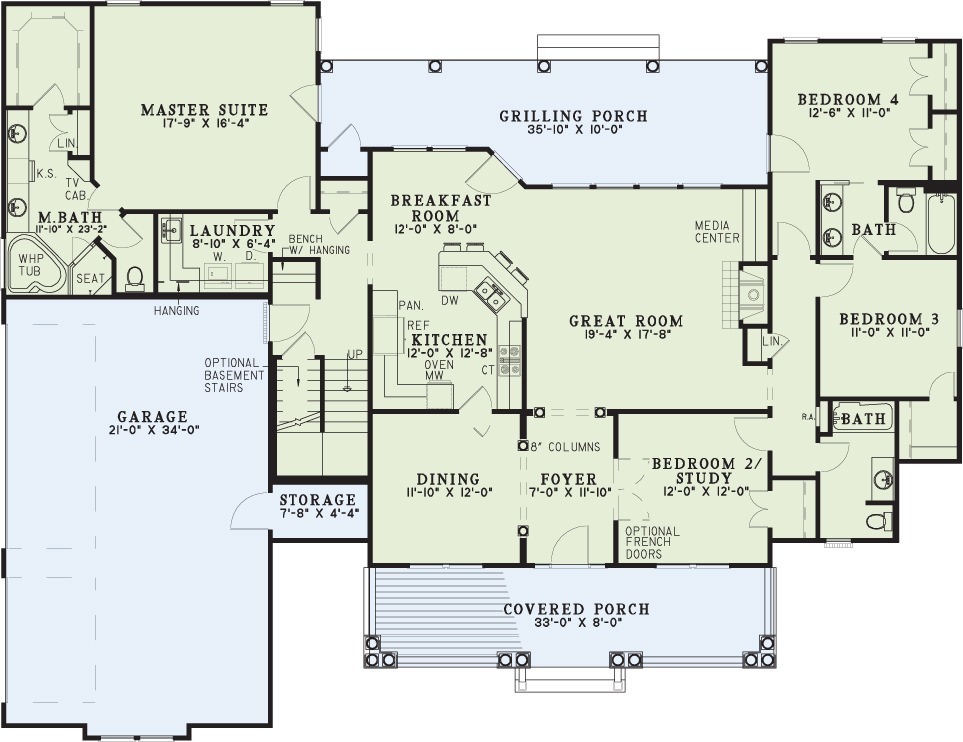

House Plan NDG 943 Main Floor

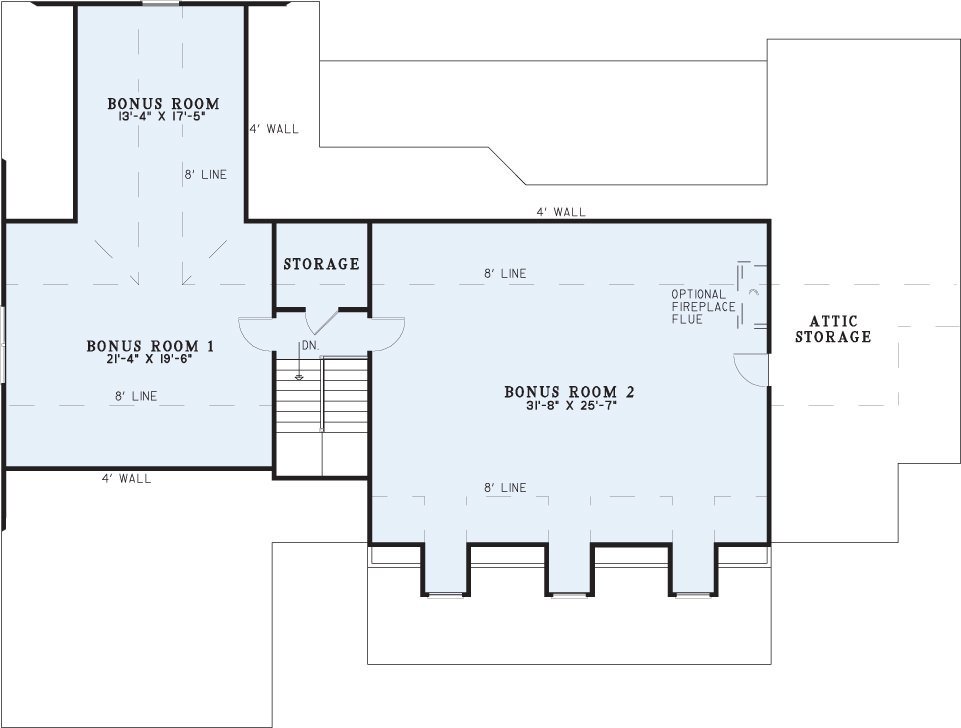

House Plan NDG 943 Bonus Room

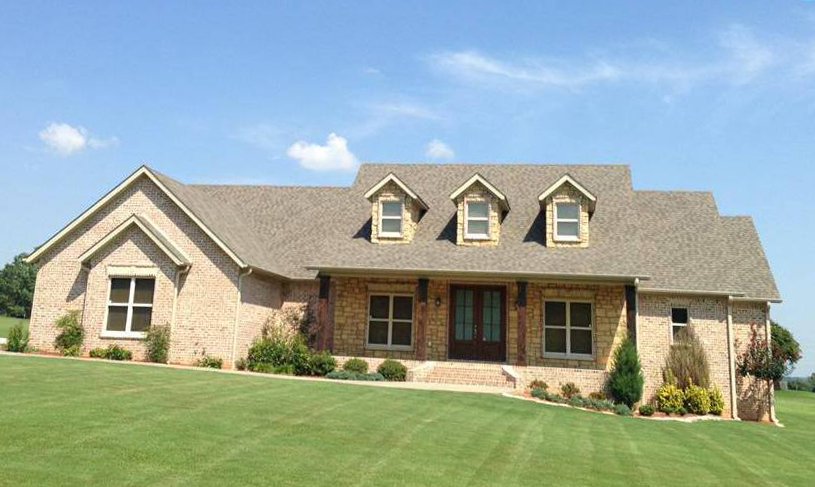

House Plan - NDG 943-Front View>
House Plan NDG 943 Main Floor
House Plan NDG 943 Bonus Room
House Plan - NDG 943-Front View

Floor plans

NDG 943

House Plan 943 Guindel Lane, Country Home House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: NDG 943
  • Total Living Space:2373Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: Yes 3 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 76
  • Width In.: 10
  • Depth Ft.: 59
  • Depth In.: 2

Description

This spectacular split bedroom design by Nelson Design Group blends the warmth of country living with classic southern tradition in a detailed porch with round columns on stone pillars. The spacious great room has a built-in media center, fireplace and wall of windows leading to a breakfast room/kitchen combination sharing a handy breakfast bar. The large master suite accesses a column lined rear porch and has a private bath featuring a corner whirlpool bath, makeup area and large walk-in closet. Three additional bedrooms with two shared bathrooms complete the main level. Upstairs, you’ll find several bonus rooms with creative ceilings and dormer windows.

Specifications

  • Total Living Space:2373Sq.Ft.
  • Main Floor: 2373 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 1583 Sq.Ft.
  • Porch (Sq.Ft.): 580 Sq.Ft.
  • Garage (Sq.Ft.): 866 Sq.Ft.
  • Total Square Feet: 5402 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 26
  • Ridge Height (In.): 3
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
