House Plan 942 Harrison Lane, Craftsman Bungalow House Plan

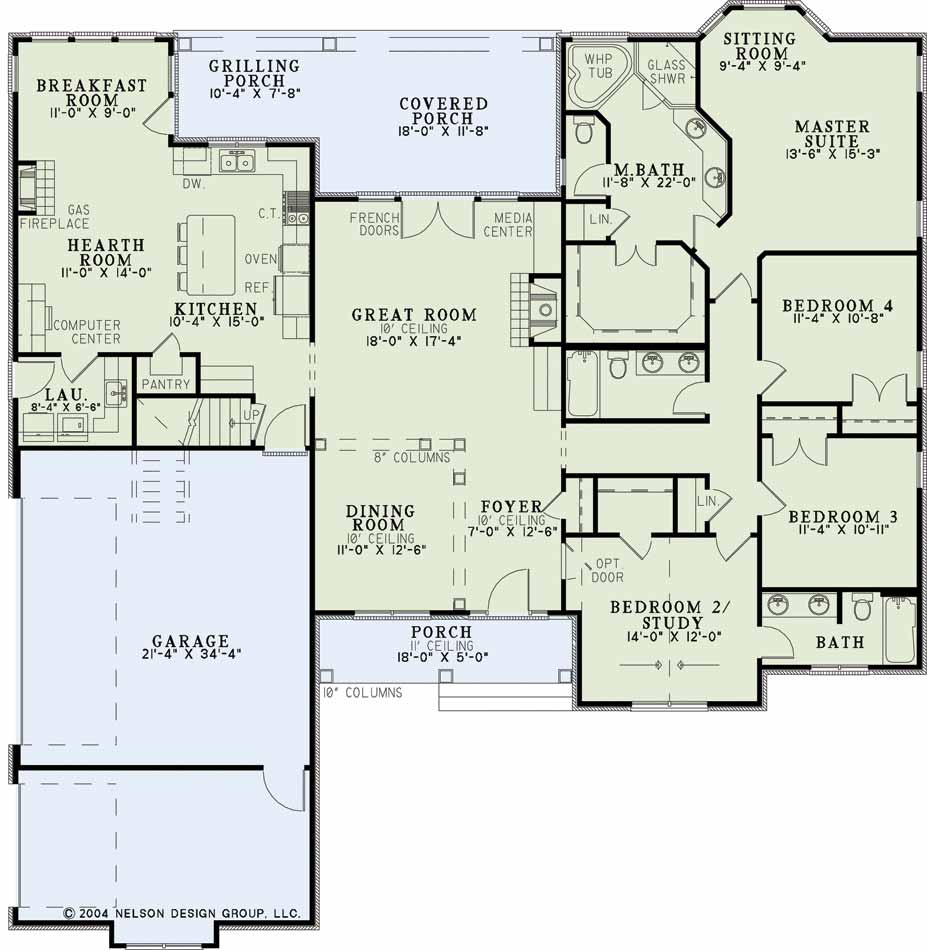

House Plan NDG 942 Main Floor

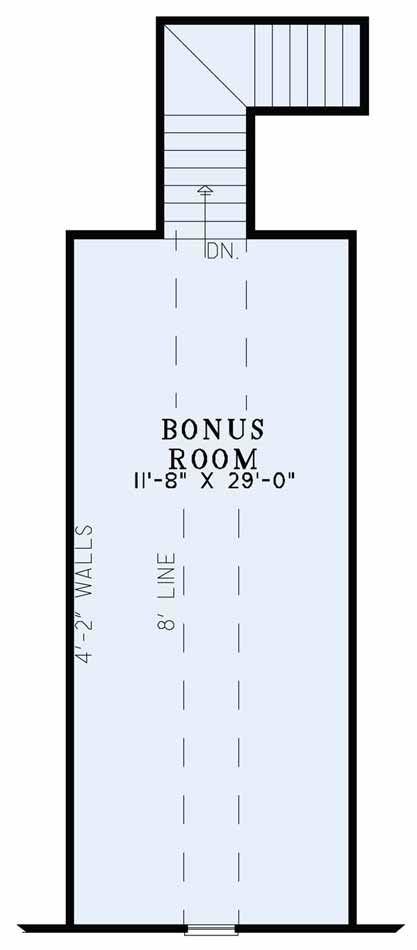

House Plan NDG 942 Upper Floor/Bonus Room
House Plan NDG 942 Main Floor
House Plan NDG 942 Upper Floor/Bonus Room

Floor plans

NDG 942

House Plan 942 Harrison Lane, Craftsman Bungalow House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 942
  • Total Living Space:2405Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: Yes 3 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 66
  • Width In.: 4
  • Depth Ft.: 68
  • Depth In.: 10

Description

Interesting angles and a unique blend of exterior materials give this Nelson Design Group home instant appeal. Your guests can mingle near the fireplace in the great room before settling in the elegant dining room for dinner. A front porch and a covered rear porch with a grilling area will be perfect for any outdoor occasions. A gas fireplace and a built-in computer center are just a few of the luxuries you’ll find in this kitchen with adjoined hearth and breakfast rooms. With your master suite and three additional bedrooms, you’re sure to have enough room for the kids or any relatives that might drop in for the night.

Specifications

  • Total Living Space:2405Sq.Ft.
  • Main Floor: 2405 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 358 Sq.Ft.
  • Porch (Sq.Ft.): 393 Sq.Ft.
  • Garage (Sq.Ft.): 762 Sq.Ft.
  • Total Square Feet: 3918 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 30
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
