House Plan 934 Park Street, Midtown Village House Plan

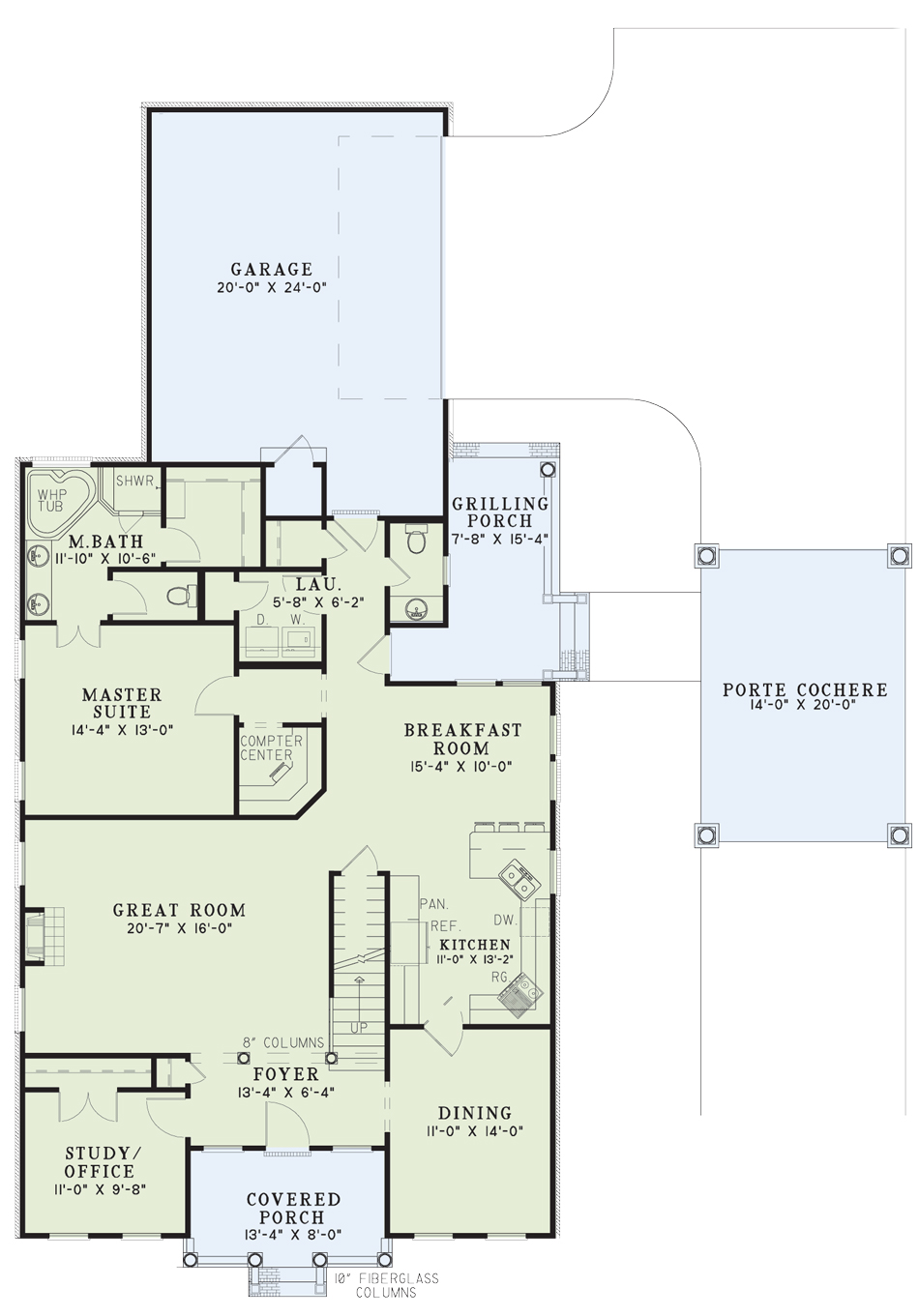

House Plan NDG 934 Main Floor

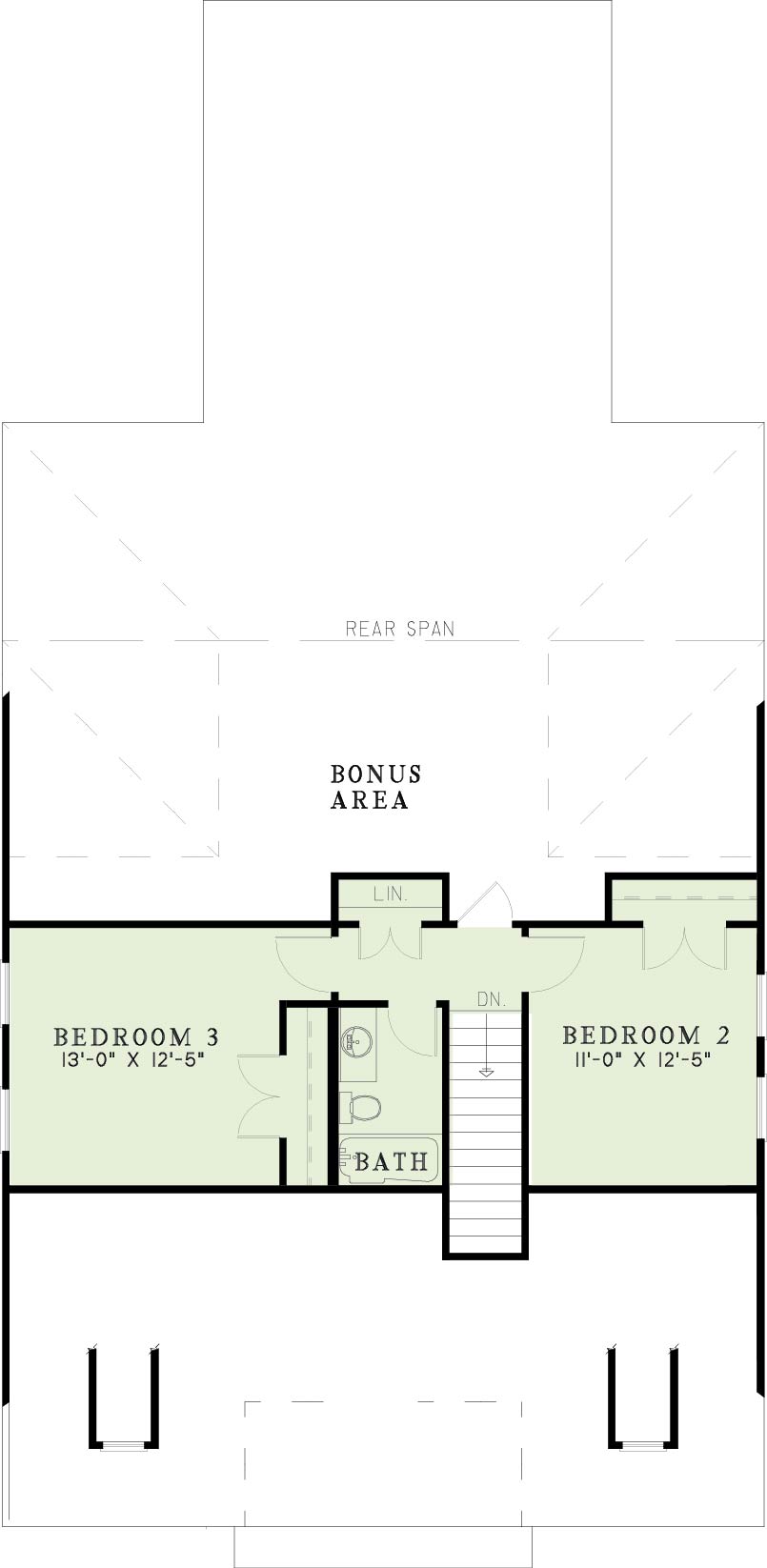

House Plan NDG 934 Upper Floor
House Plan NDG 934 Main Floor
House Plan NDG 934 Upper Floor

Floor plans

NDG 934

House Plan 934 Park Street, Midtown Village House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 934
  • Total Living Space:2140Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: Yes 2 Bay
  • Garage Type: Side Load
  • Carport: Yes
  • Carport Type: Porte Cochere
  • Stories: 1.5
  • Width Ft.: 60
  • Width In.: 8
  • Depth Ft.: 79
  • Depth In.: 6

Description

Family oriented describes this great home plan by Nelson Design Group. A quaint covered porch leads into the foyer, which divides a study/office from the formal dining room while a timeless swinging door gives access to the kitchen. For convenience, the master suit is placed on the main level and two additional bedrooms and a large bonus area are located above. A convenient porte cochere gives protection from the elements and leads to the rear-loading garage.

Specifications

  • Total Living Space:2140Sq.Ft.
  • Main Floor: 1690 Sq.Ft
  • Upper Floor (Sq.Ft.): 450 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 296 Sq.Ft.
  • Garage (Sq.Ft.): 808 Sq.Ft.
  • Total Square Feet: 3244 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 28
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
