House Plan 933 Park Street, Midtown Village House Plan

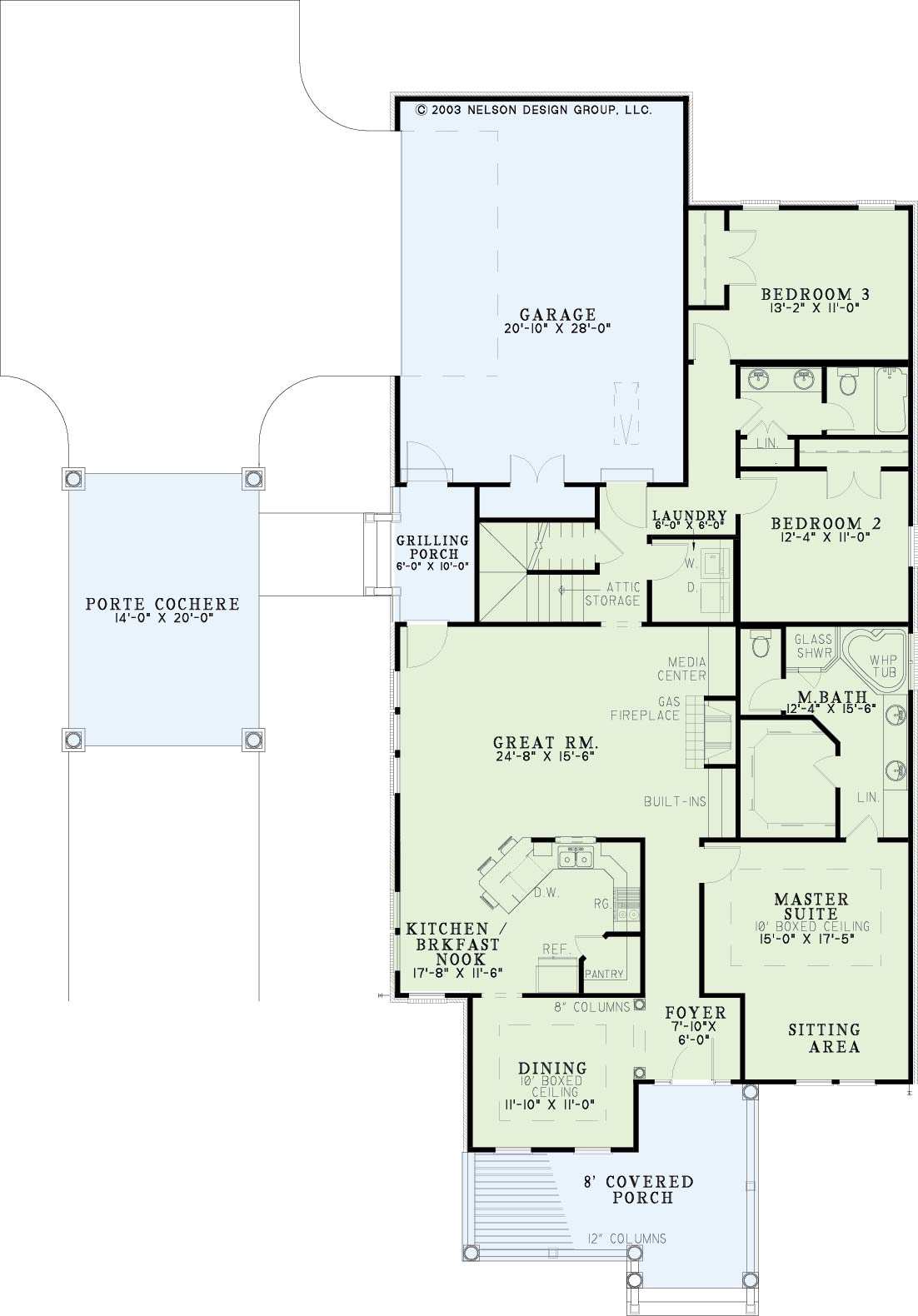

House Plan NDG 933 Main Floor
House Plan NDG 933 Main Floor

Floor plans

NDG 933

House Plan 933 Park Street, Midtown Village House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 933
  • Total Living Space:1966Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Side Load
  • Carport: Yes
  • Carport Type: Porte Cochere
  • Stories: 1
  • Width Ft.: 62
  • Width In.: N/A
  • Depth Ft.: 87
  • Depth In.: 6

Description

Finials and a charming porte cochere help to define this Nelson Design Group home as a true original. Step onto the covered front porch and enjoy the shade. Make your way into the immense great room featuring a fireplace, built-ins, and a media center. The well equipped kitchen with breakfast nook is adjacent to the great room, and just steps away from the elegant dining room with boxed ceiling. This master suite has all the amenities you?ve been looking for including a separate sitting area in the bedroom and a whirlpool tub and glass shower in the bathroom. Two additional bedrooms and a grilling porch complete this lovely design.

Specifications

  • Total Living Space:1966Sq.Ft.
  • Main Floor: 1966 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 354 Sq.Ft.
  • Garage (Sq.Ft.): 907 Sq.Ft.
  • Total Square Feet: 3227 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 28
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
