House Plan 843 Spruce Street, Traditional House Plan

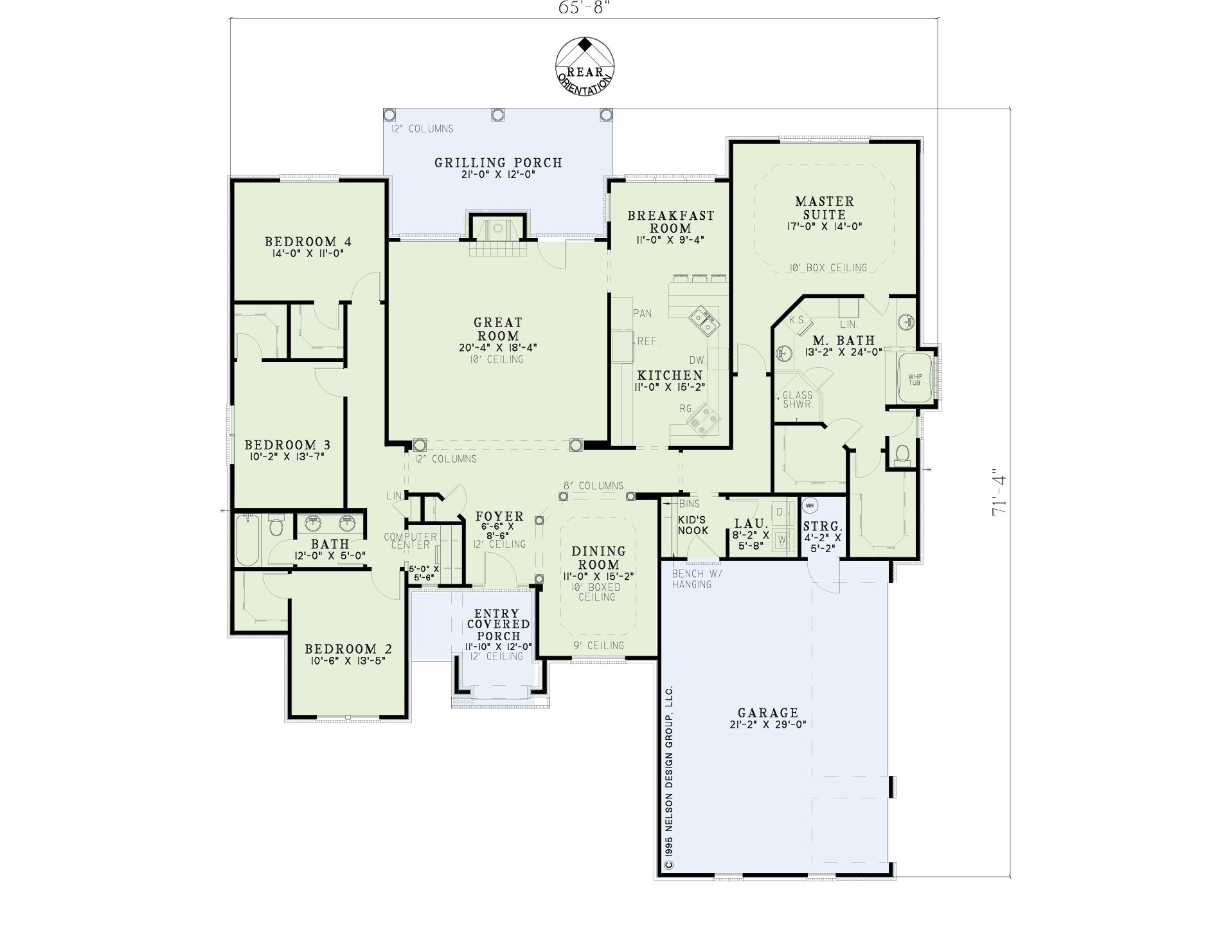

Floor plans
NDG 843
House Plan 843 Spruce Street, Traditional House Plan
PDF: $1,100.00
Plan Details
- Plan Number: NDG 843
- Total Living Space:2545Sq.Ft.
- Bedrooms: 4
- Full Baths: 2
- Half Baths: N/A
- Garage: Yes 3 Bay
- Garage Type: Side Load
- Carport: N/A
- Carport Type: N/A
- Stories: 1
- Width Ft.: 65
- Width In.: 8
- Depth Ft.: 71
- Depth In.: 4
Description
Welcome your guests through the elegant arched entry of this Nelson Design Group home. As you make your way into the great room, you’ll notice the columns that frame the entrance, as well as those near the dining room. This well-equipped kitchen was designed with the chef in mind and offers easy access to the adjacent breakfast room and nearby grilling porch. At the end of a long day, the master suite will call your name. A ten foot boxed ceiling helps to enhance the bedroom while a whirlpool bath and glass shower accent the master bath. Three additional bedrooms should provide just the right amount of space for the kids or guests and feature walk-in closets.
Specifications
- Total Living Space:2545Sq.Ft.
- Main Floor: 2545 Sq.Ft
- Upper Floor (Sq.Ft.): N/A
- Lower Floor (Sq.Ft.): N/A
- Bonus Room (Sq.Ft.): N/A
- Porch (Sq.Ft.): 357 Sq.Ft.
- Garage (Sq.Ft.): 662 Sq.Ft.
- Total Square Feet: 3564 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: No
- Main Ceiling Height: 9
- Upper Ceiling Height: N/A
- Lower Ceiling Height: N/A
- Roof Type: Shingle
- Main Roof Pitch: 8:12
- Porch Roof Pitch: N/A
- Roof Framing Description: Stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 25
- Ridge Height (In.): 0
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
