House Plan 841 Cambridge Court, Multi-Family House Plan

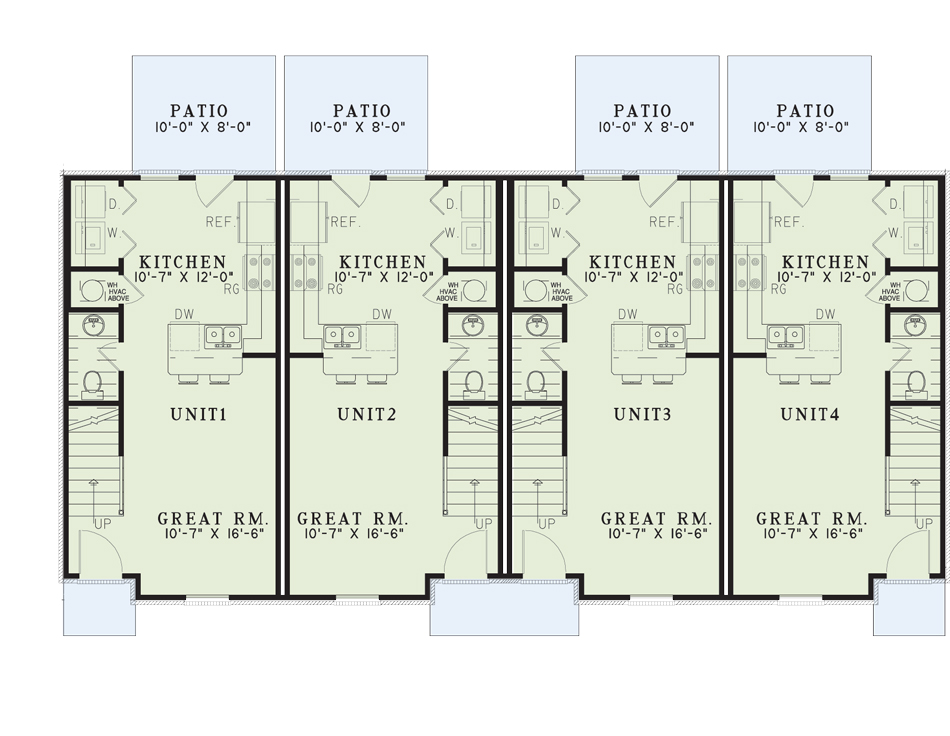

Multi Family House Plan NDG 841 Main Floor

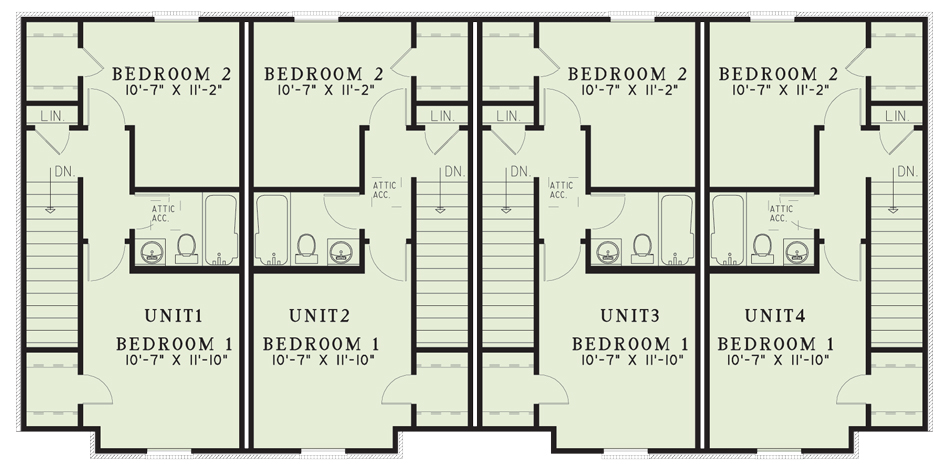

Multi Family House Plan NDG 841 Upper Floor
Multi Family House Plan NDG 841 Main Floor
Multi Family House Plan NDG 841 Upper Floor

Floor plans

NDG 841

House Plan 841 Cambridge Court, Multi-Family House Plan

PDF: $2,050.00

Plan Details

  • Plan Number: NDG 841
  • Total Living Space:829Sq.Ft.
  • Bedrooms: 2
  • Full Baths: 1
  • Half Baths: 1
  • Garage: No
  • Garage Type: N/A
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 61
  • Width In.: 3
  • Depth Ft.: 29
  • Depth In.: 6

Description

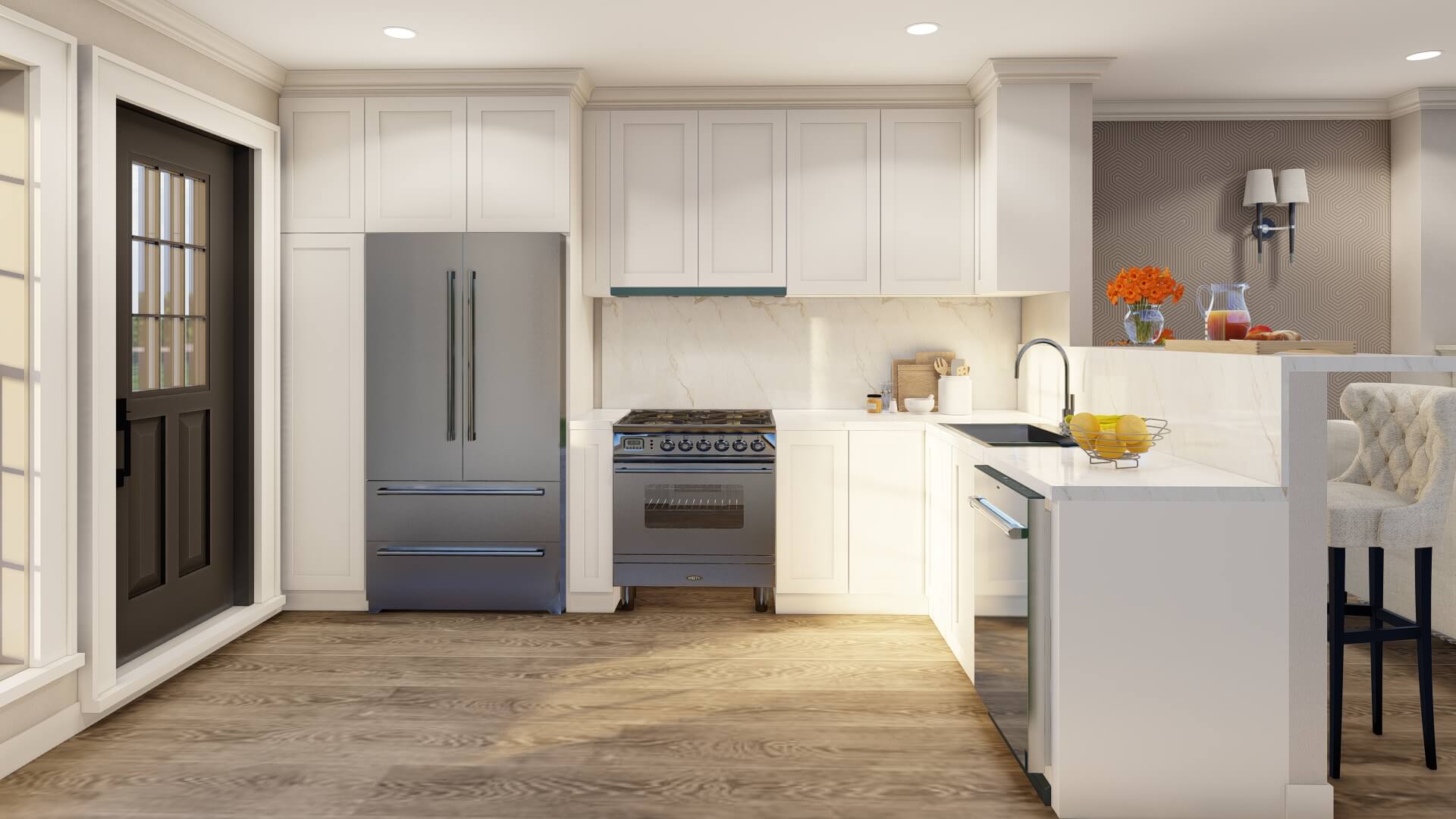

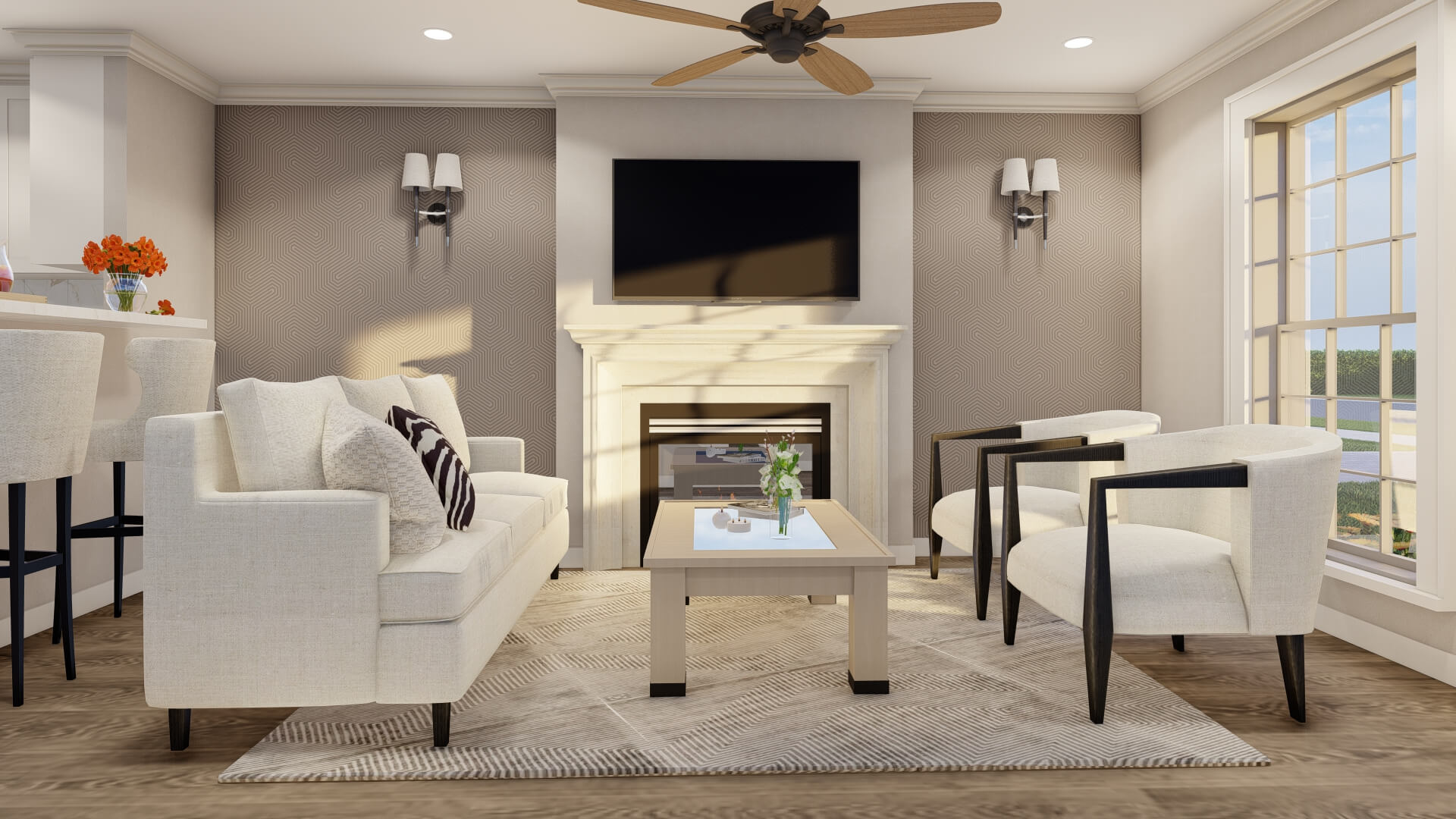

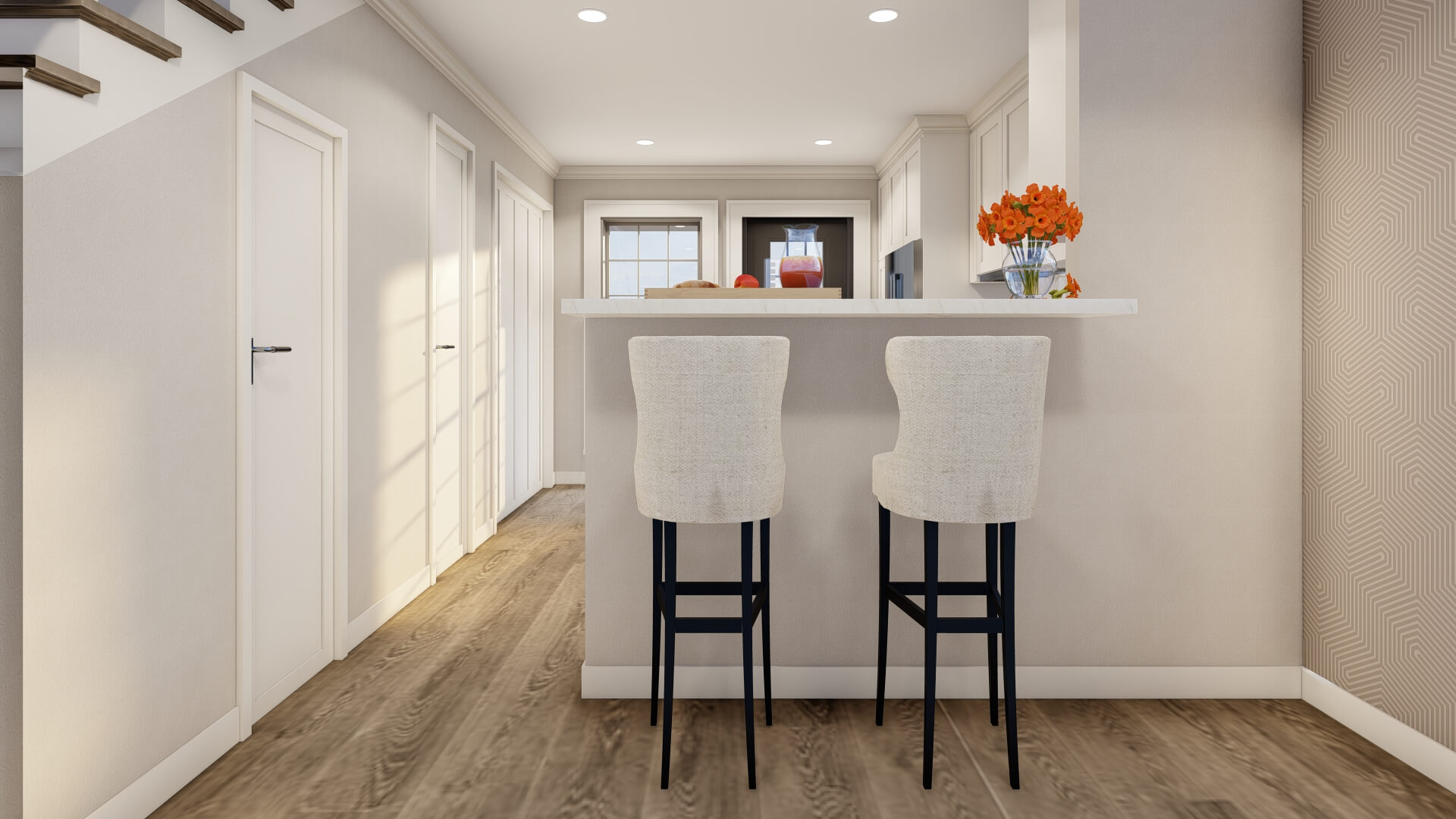

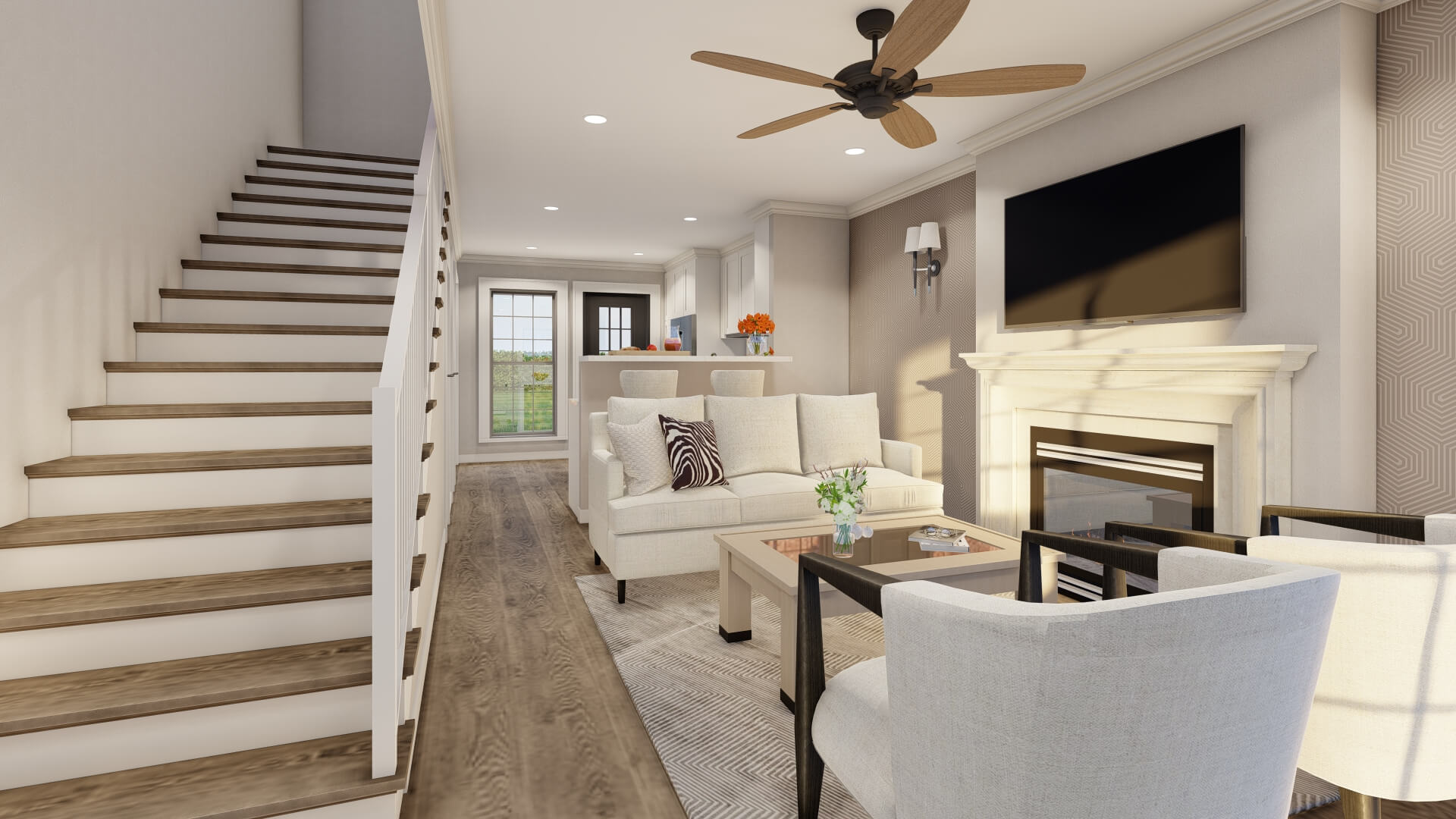

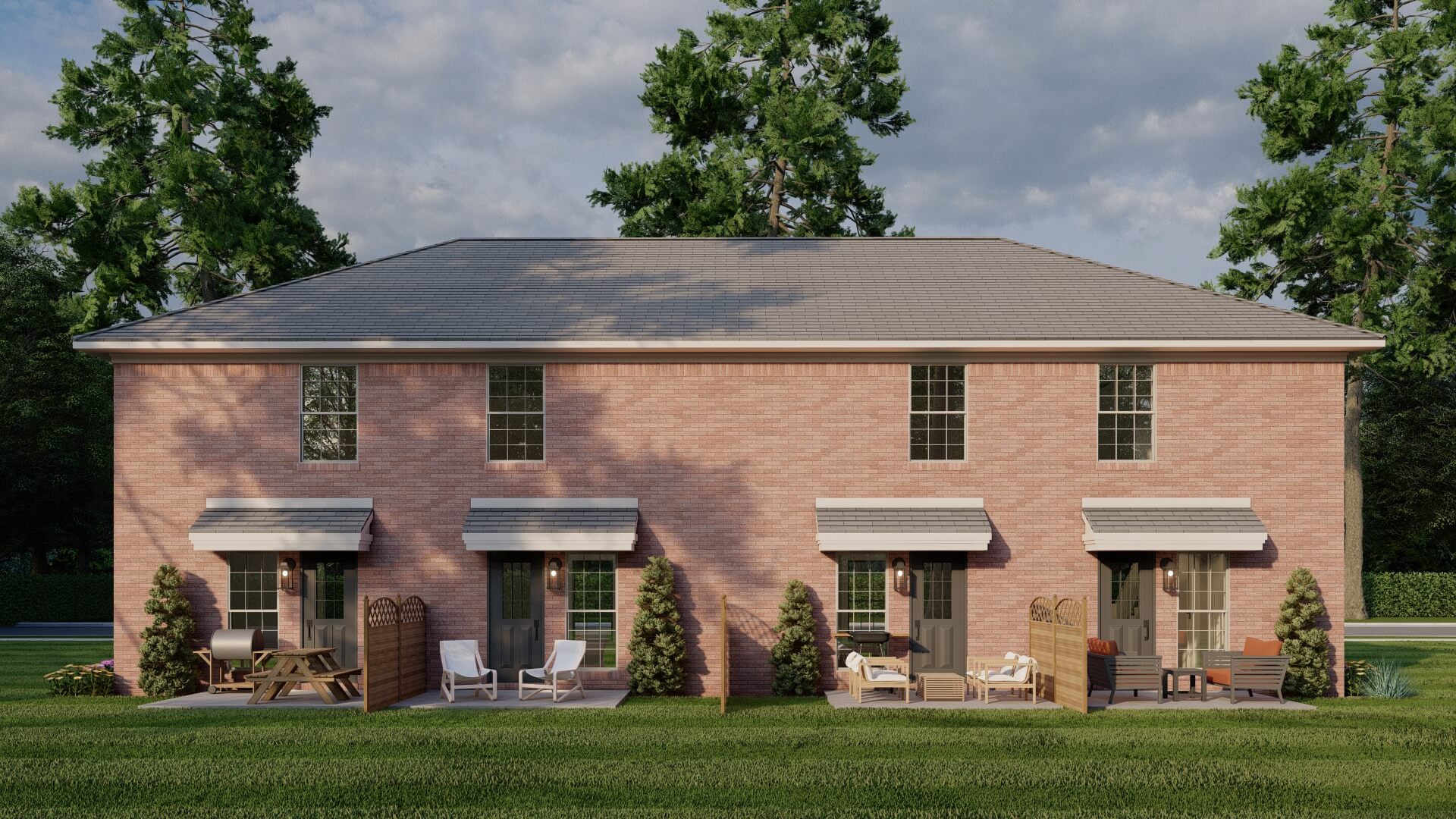

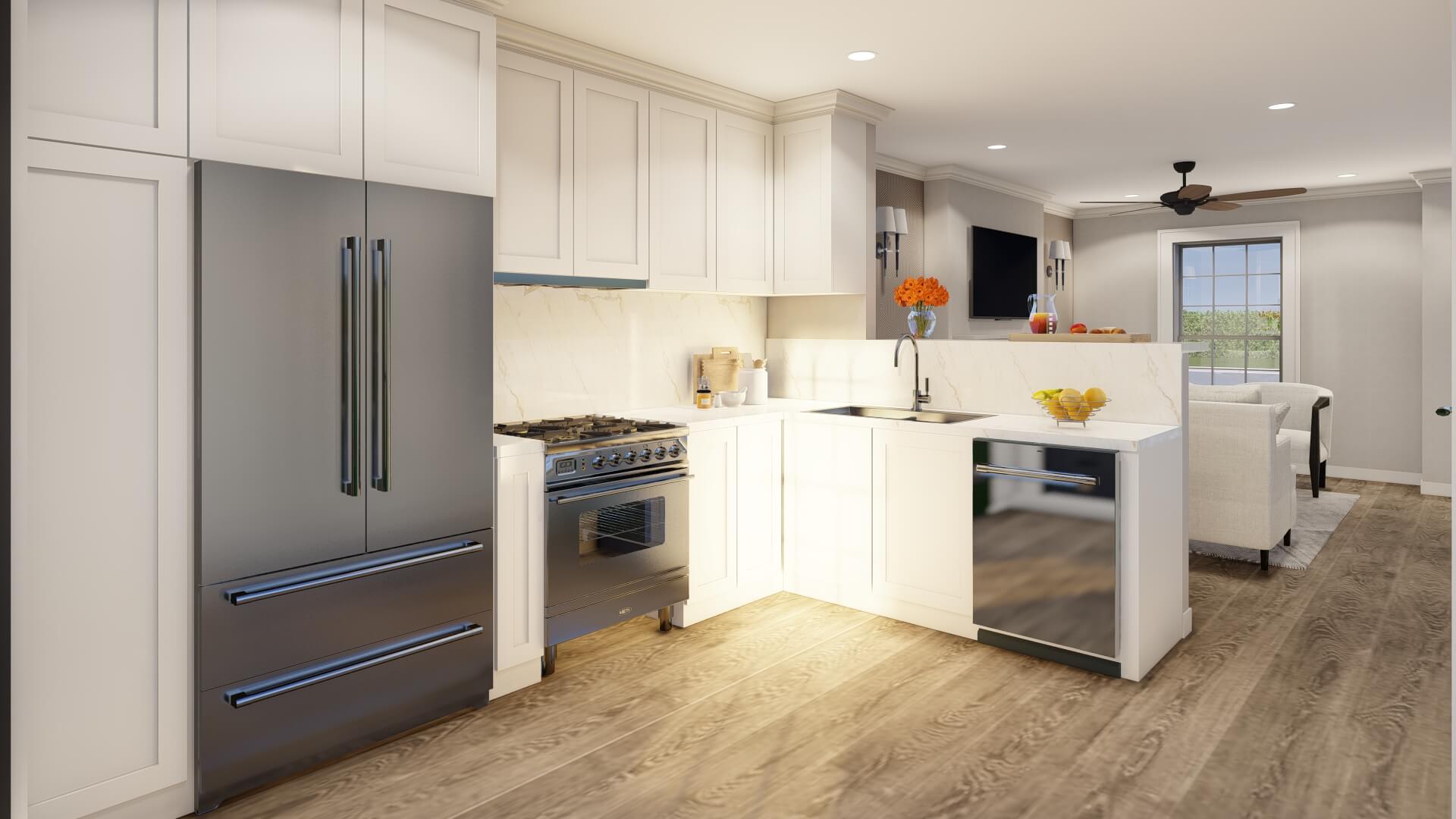

This multi-family design from Nelson Design Group features four housing units. On the main floor of each unit, the generous great room merges with the kitchen area. A half bath, laundry area, and rear patio complete the main floor of each home. Two bedrooms and a full bath are available on the upper floor of each unit, along with access to an attic storage area. This design may be just the multi-family plan you've been looking for.

Specifications

  • Total Living Space:829Sq.Ft.
  • Main Floor: 435 Sq.Ft
  • Upper Floor (Sq.Ft.): 394 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): N/A
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: N/A
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 7:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 25
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
