House Plan 837 Mosspoint Creek, Riverbend House Plan

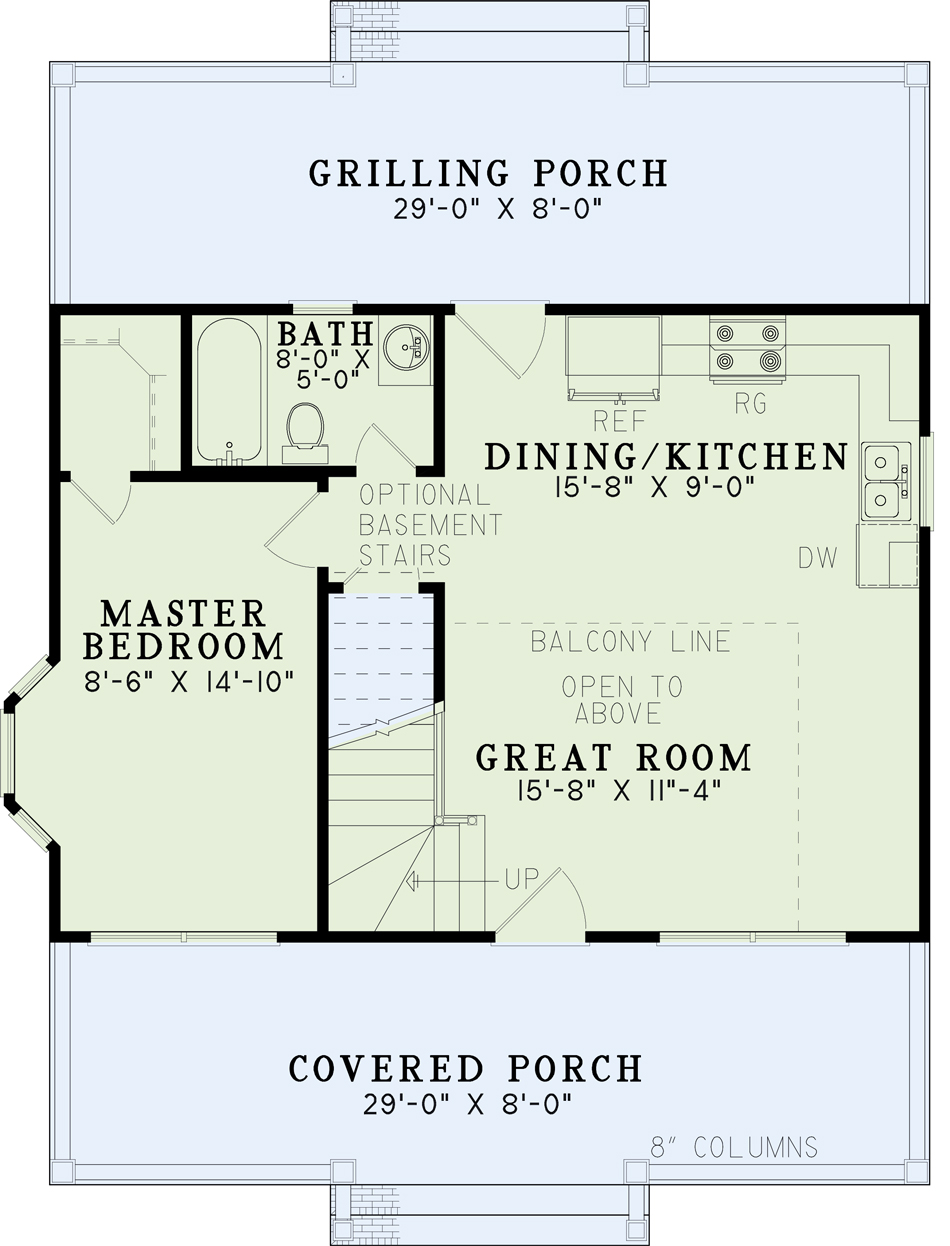

House Plan NDG 837 Main Floor

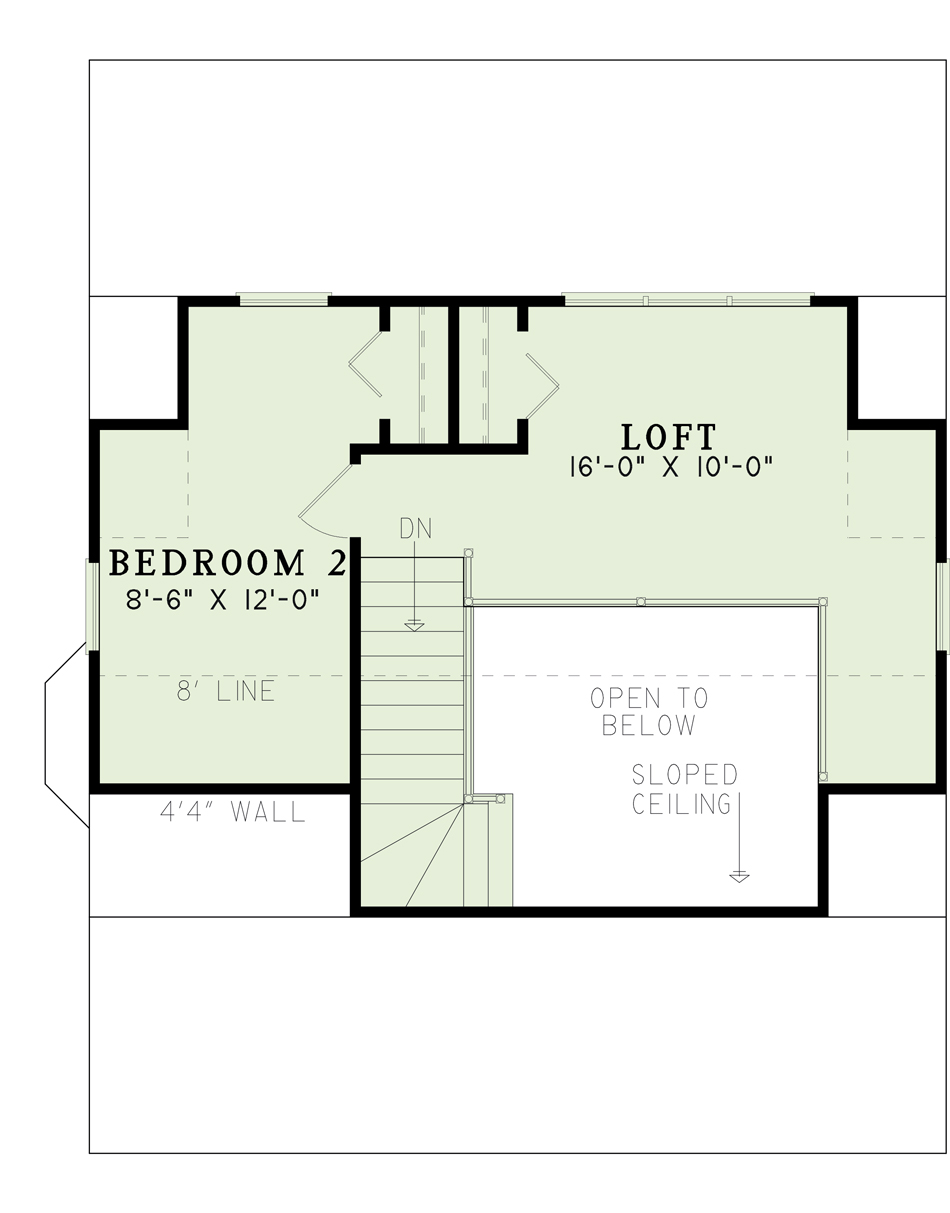

House Plan NDG 837 Upper Floor
House Plan NDG 837 Main Floor
House Plan NDG 837 Upper Floor

Floor plans

House Plan NDG 837 Main Floor

House Plan NDG 837 Upper Floor
NDG 837

House Plan 837 Mosspoint Creek, Riverbend House Plan

PDF: $700.00

Plan Details

  • Plan Number: NDG 837
  • Total Living Space:975Sq.Ft.
  • Bedrooms: 2
  • Full Baths: 1
  • Half Baths: N/A
  • Garage: No
  • Garage Type: N/A
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 30
  • Width In.: 6
  • Depth Ft.: 37
  • Depth In.: N/A

Description

Let the covered front porch of this Nelson Design Group home welcome you inside after a long day. Step into the kitchen/dining area for a snack before kicking off your shoes to relax in the generous great room. When friends are over, the rear grilling porch can be used to create the perfect atmosphere for an outdoor party. This master suite will prove to be private and comfortable. Located on the main floor, it features a bay window and large walk-in closet. Upstairs, a second bedroom is available as well as a spacious loft that overlooks the great room below.

Specifications

  • Total Living Space:975Sq.Ft.
  • Main Floor: 616 Sq.Ft
  • Upper Floor (Sq.Ft.): 359 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Basement (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 464 Sq.Ft.
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 1439 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: 3:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 21
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
