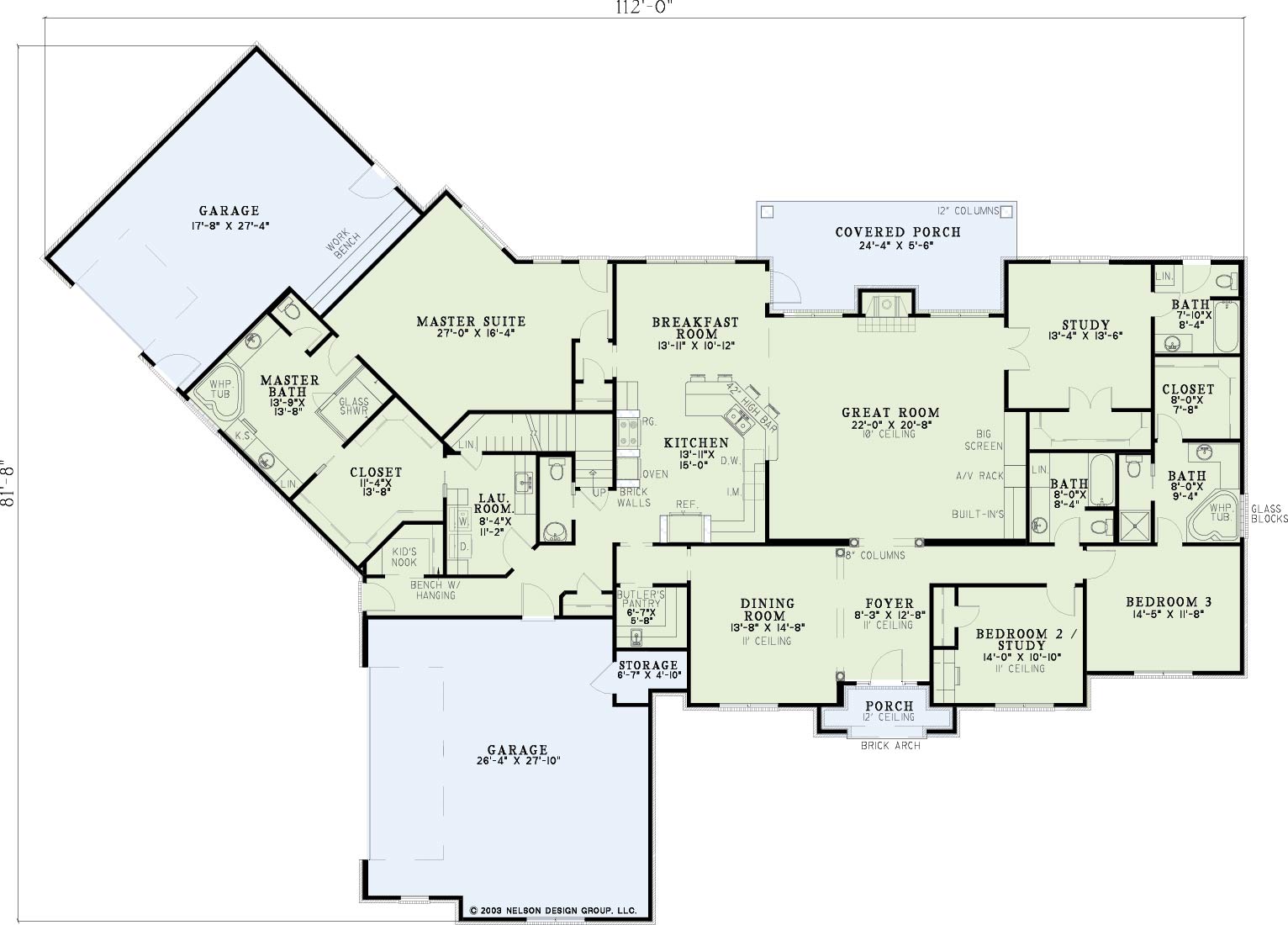

House Plan NDG 834 Main Floor

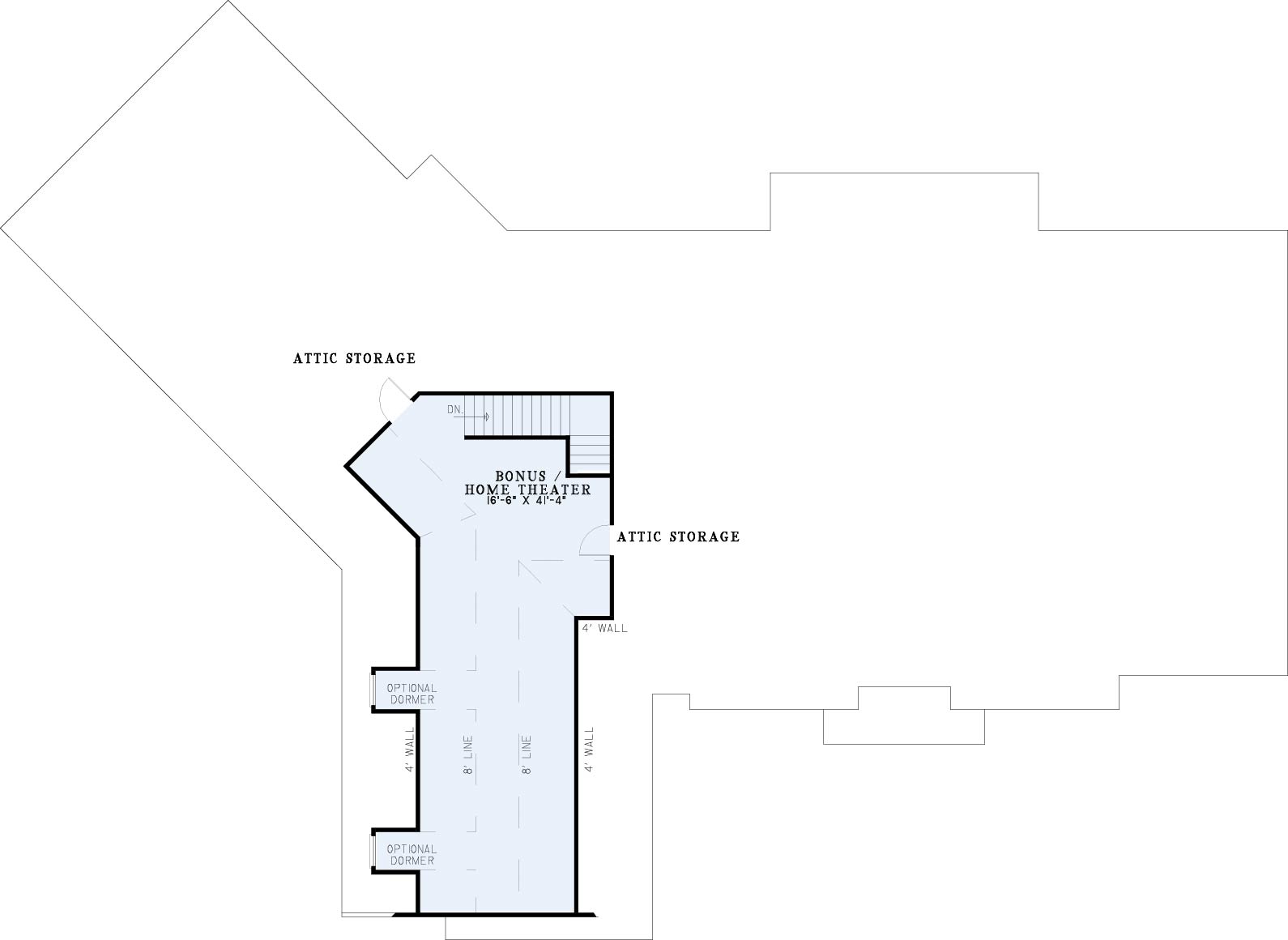

House Plan NDG 834 Bonus Room
House Plan NDG 834 Main Floor
House Plan NDG 834 Bonus Room

Floor plans

NDG 834

House Plan 834 Dogwood Avenue, Luxury House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: NDG 834
  • Total Living Space:3342Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 4
  • Half Baths: 1
  • Garage: Yes 3 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 112
  • Width In.: N/A
  • Depth Ft.: 81
  • Depth In.: 8

Description

Brick and stone create a unique exterior combination on this Nelson Design Group home. Entertain friends and family in the large great room with fireplace and built-ins. This split bedroom design offers privacy and comfort for all family members. The spacious master suite requires its own wing of the home with a huge bedroom area, walk-in closet, and amenity-filled master bath. The kid?s nook allows the children to keep all their books, coats and sports equipment organized. Two additional bedrooms and a study are located on the other side of this home.

Specifications

  • Total Living Space:3342Sq.Ft.
  • Main Floor: 3342 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 713 Sq.Ft.
  • Porch (Sq.Ft.): 262 Sq.Ft.
  • Garage (Sq.Ft.): 1306 Sq.Ft.
  • Total Square Feet: 5623 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 27
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
