House Plan 833 Waterfront Cove, Waterfront House Plan

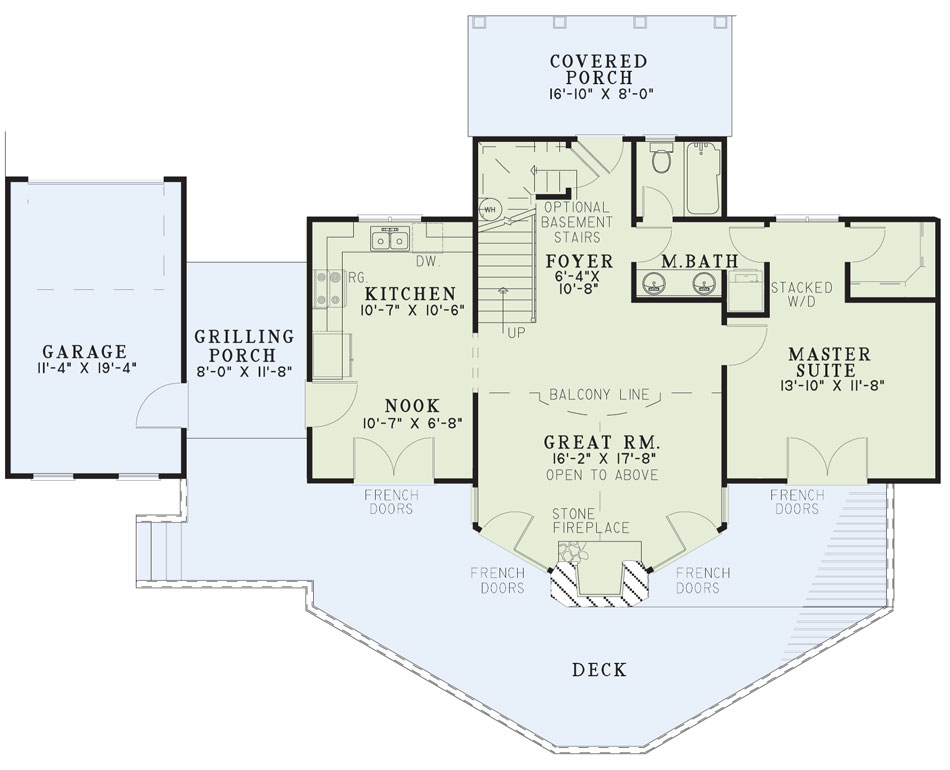

House Plan NDG 833 Main Floor

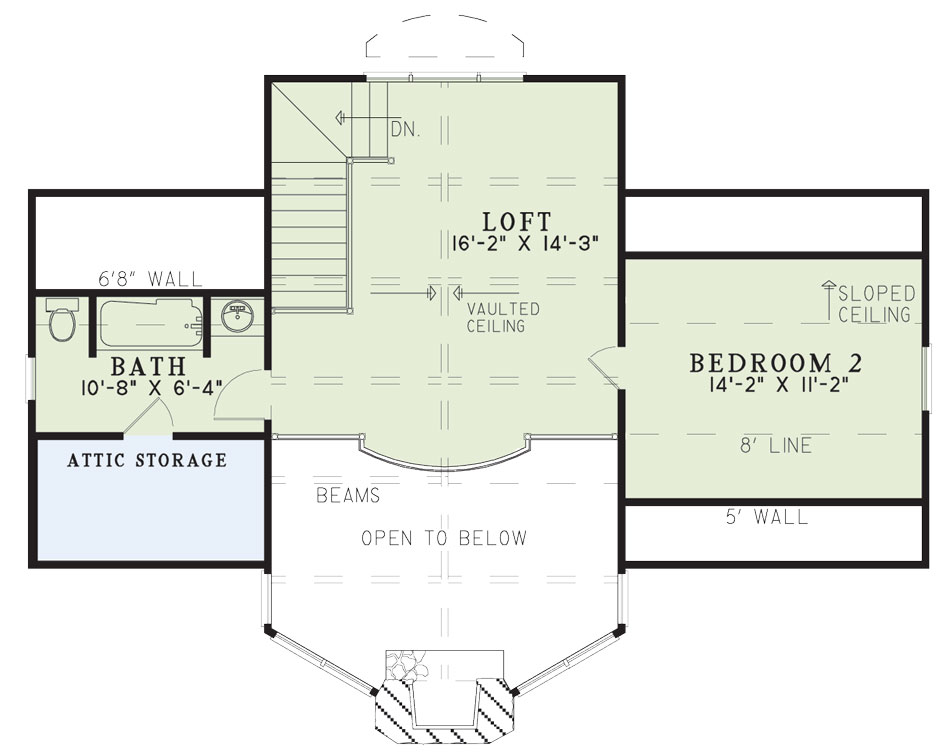

House Plan NDG 833 Upper Floor
House Plan NDG 833 Main Floor
House Plan NDG 833 Upper Floor

Floor plans

NDG 833

House Plan 833 Waterfront Cove, Waterfront House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 833
  • Total Living Space:1408Sq.Ft.
  • Bedrooms: 2
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 1 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 62
  • Width In.: N/A
  • Depth Ft.: 39
  • Depth In.: 2

Description

This glorious waterfront plan is perfect for summers of entertaining and cozy winters with family and friends. Upon entry, you’ll have a direct view of the great room with a rock fireplace centered among a full wall of windows and French doors leading to the rear deck. The kitchen has a quaint breakfast nook with French doors and a nearby covered grilling porch for entertaining. For privacy, the master suite is located on the main level and has a laundry area in the master bathroom for added convenience. Travel upstairs to find a spacious loft area centered between a bathroom and bedroom while enjoying a breathtaking view from the balcony.

Specifications

  • Total Living Space:1408Sq.Ft.
  • Main Floor: 917 Sq.Ft
  • Upper Floor (Sq.Ft.): 491 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 177 Sq.Ft.
  • Garage (Sq.Ft.): 240 Sq.Ft.
  • Total Square Feet: 1825 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 8
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 27
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
