House Plan 830 Woodland Drive, Stone-And-Brick House Plan

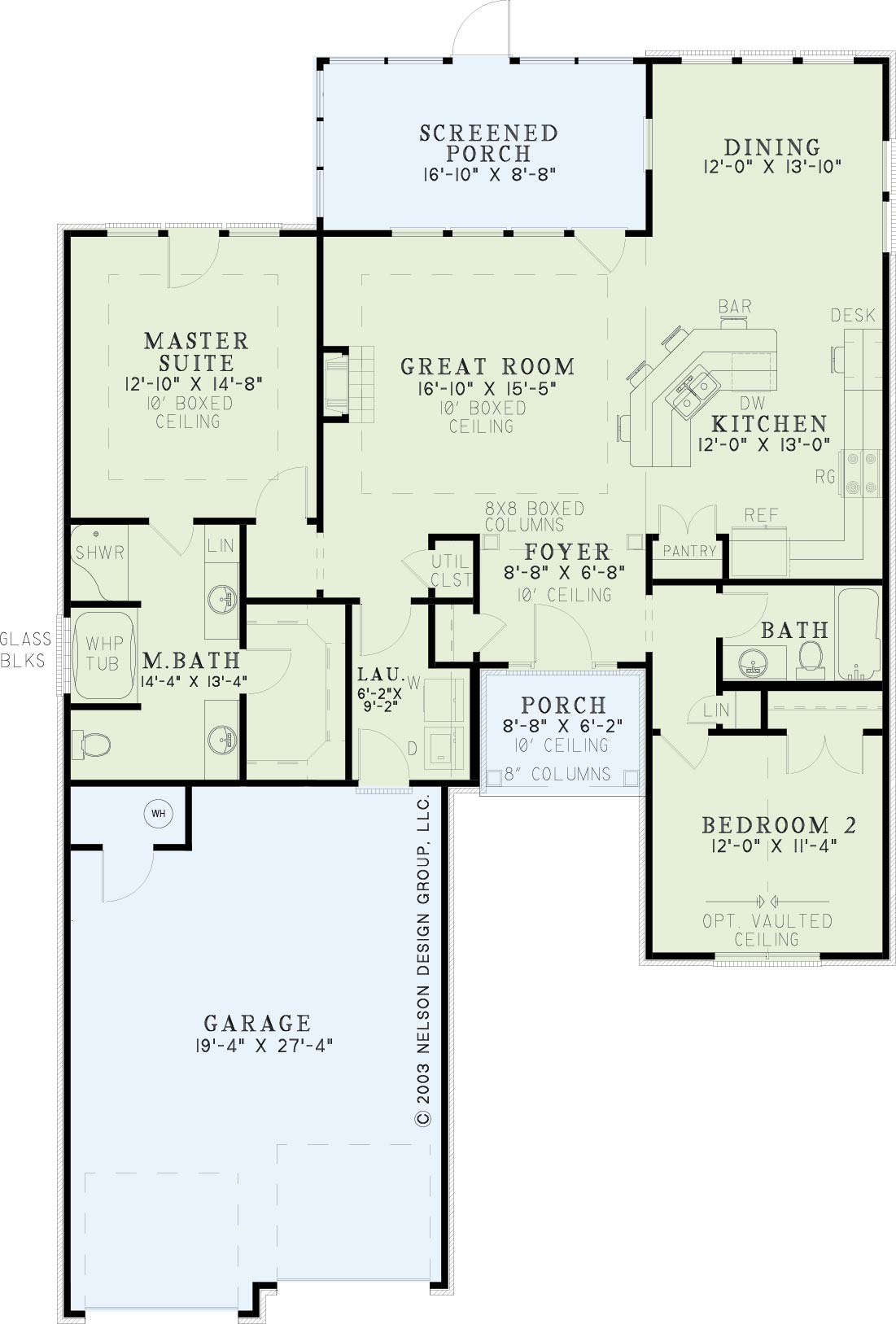

House Plan NDG 830 Main Floor
House Plan NDG 830 Main Floor

Floor plans

NDG 830

House Plan 830 Woodland Drive, Stone-And-Brick House Plan

PDF: $700.00

Plan Details

  • Plan Number: NDG 830
  • Total Living Space:1422Sq.Ft.
  • Bedrooms: 2
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 43
  • Width In.: N/A
  • Depth Ft.: 65
  • Depth In.: 8

Description

The stone accented exterior of this home by Nelson Design Group conveys a stunning exterior for the neighborhood to appreciate. The covered front porch offers a ten foot ceiling as well as the foyer for welcoming guests to your quaint home. This split bedroom plan offers privacy for the first time home owners or empty nesters with a secluded master suite and bath with all the conveniences you desire. The open kitchen to the great room and dining areas will be very functional when entertaining for the holidays and further expanded by using the rear screened porch for grilling.

Specifications

  • Total Living Space:1422Sq.Ft.
  • Main Floor: 1422 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 200 Sq.Ft.
  • Garage (Sq.Ft.): 527 Sq.Ft.
  • Total Square Feet: 2149 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 18
  • Ridge Height (In.): 10
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
