House Plan 829B Woodland Drive, Stone-And-Brick House Plan

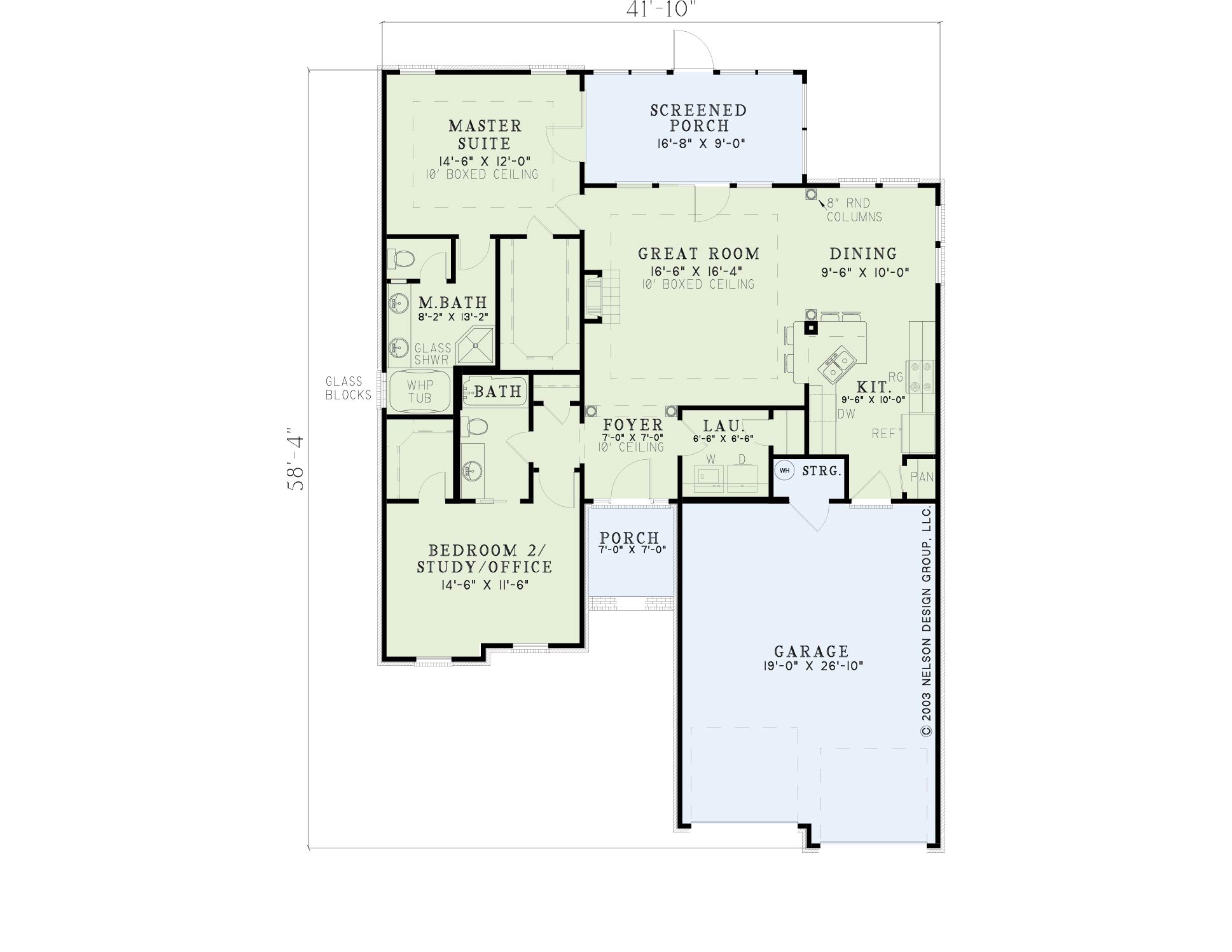

House Plan NDG 829B Main Floor
House Plan NDG 829B Main Floor

Floor plans

NDG 829B

House Plan 829B Woodland Drive, Stone-And-Brick House Plan

PDF: $700.00

Plan Details

  • Plan Number: NDG 829B
  • Total Living Space:1287Sq.Ft.
  • Bedrooms: 2
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 41
  • Width In.: 10
  • Depth Ft.: 58
  • Depth In.: 4

Description

This plan from Nelson Design Group packs numerous amenities into this charming narrow lot design, ideal for first time home buyers or empty nesters. Enter from the front covered porch into the foyer with round columns to the great room. Entertain friends and family with ease in the open great room with convenient snack bar accessing the step-saver kitchen. The rear screened porch will be advantageous for watching the sun set on autumn evenings. The private master suite offers a relaxing whirlpool bath, shower and large walk-in closet.

Specifications

  • Total Living Space:1287Sq.Ft.
  • Main Floor: 1287 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 200 Sq.Ft.
  • Garage (Sq.Ft.): 527 Sq.Ft.
  • Total Square Feet: 2014 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 20
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
