House Plan 821 Mulberry Lane, Olde Town House Plan

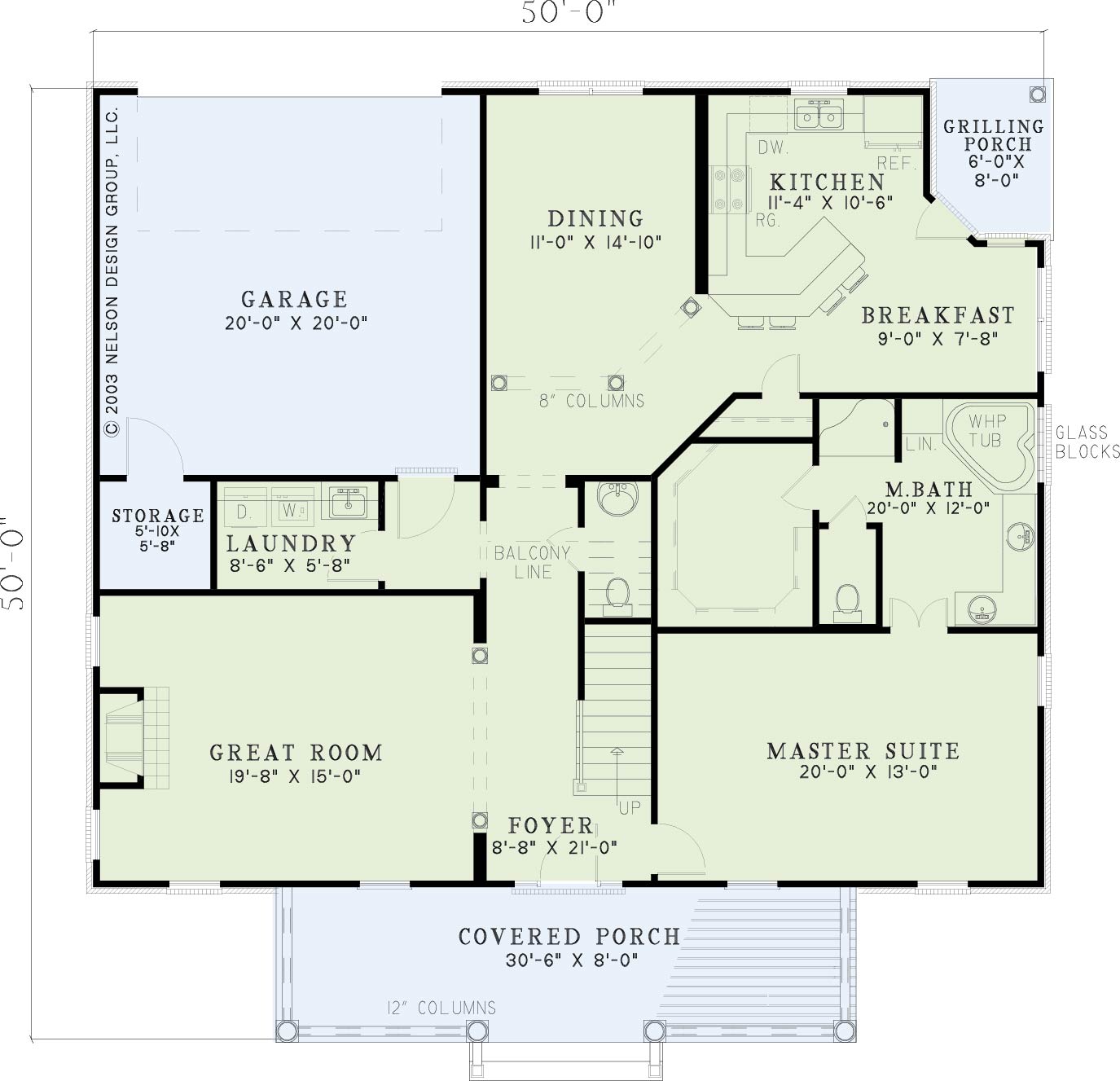

House Plan NDG 821 Main Floor

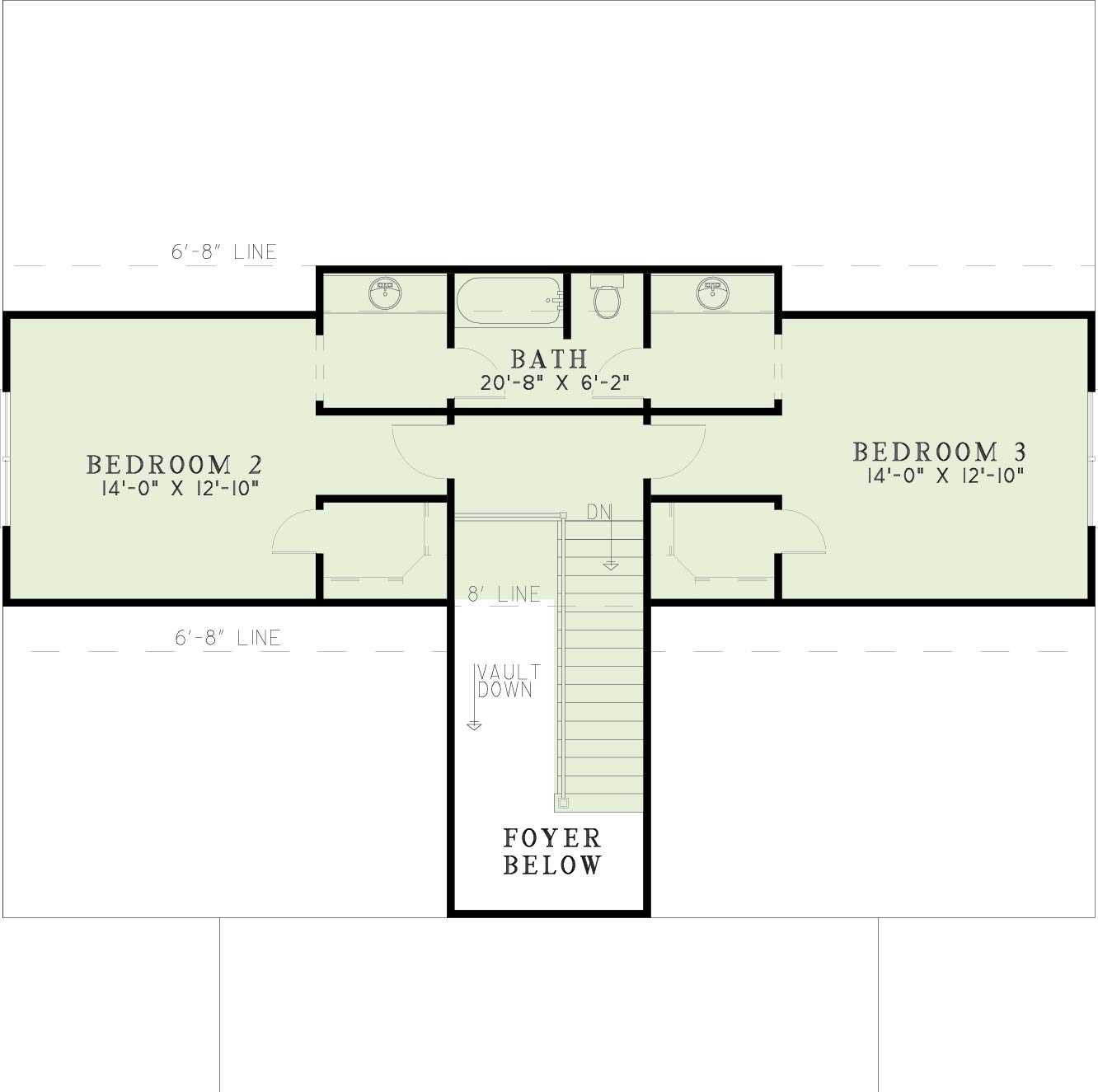

House Plan NDG 821 Upper Floor
House Plan NDG 821 Main Floor
House Plan NDG 821 Upper Floor

Floor plans

NDG 821

House Plan 821 Mulberry Lane, Olde Town House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 821
  • Total Living Space:2290Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: Yes 2 Bay
  • Garage Type: Rear Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 50
  • Width In.: N/A
  • Depth Ft.: 50
  • Depth In.: N/A

Description

The covered front porch and columns featured on this Nelson Design Group home will be a treat for bypassers to enjoy. Once inside you’ll notice a cozy great room and a spectacular dining room, enhanced by round columns. The step-saver kitchen has direct access to a grilling-porch, a quaint breakfast area and view to the backyard. The main level master suite has a marvelous bathroom with whirlpool tub with glass block window. The upper level is complete with two bedrooms, one large bathroom, and an eye-catching area open to the foyer below.

Specifications

  • Total Living Space:2290Sq.Ft.
  • Main Floor: 1604 Sq.Ft
  • Upper Floor (Sq.Ft.): 686 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 286 Sq.Ft.
  • Garage (Sq.Ft.): 450 Sq.Ft.
  • Total Square Feet: 3026 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 23
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
  • Master Bedroom: Master Bedroom Lower Level
