House Plan 817 Dogwood Avenue, European House Plan

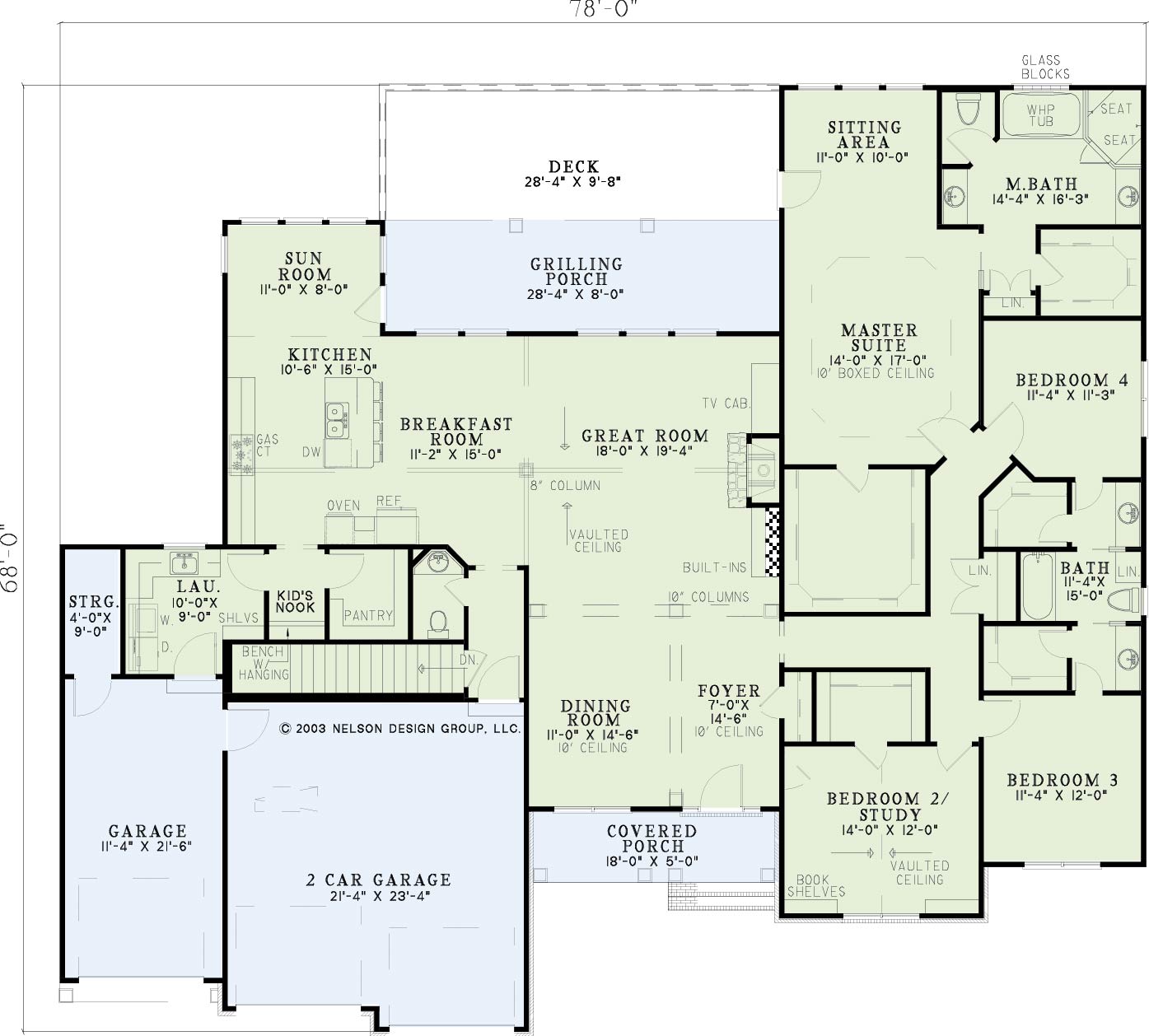

House Plan NDG 817 Main Floor

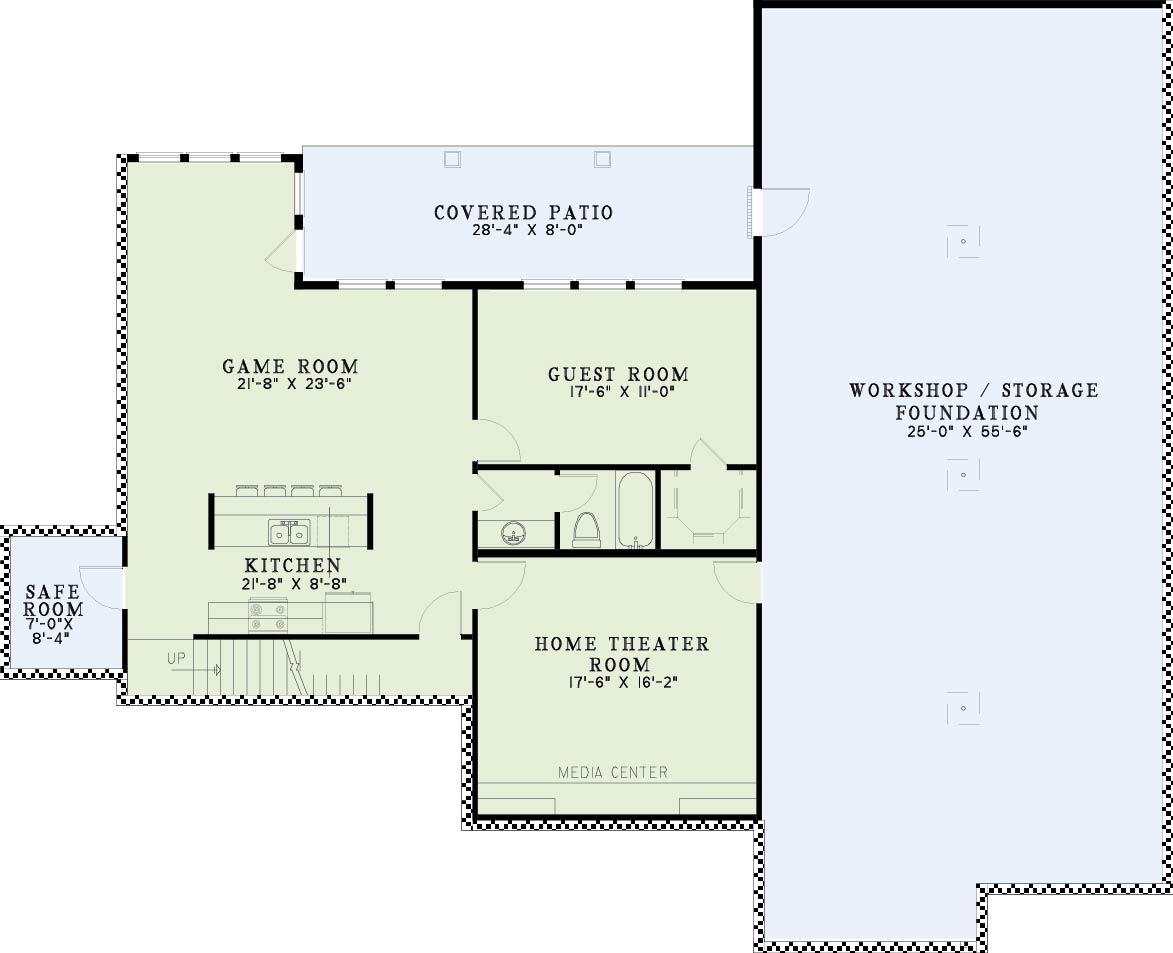

House Plan NDG 817 Basement
House Plan NDG 817 Main Floor
House Plan NDG 817 Basement

Floor plans

NDG 817

House Plan 817 Dogwood Avenue, European House Plan

PDF: $1,850.00

Plan Details

  • Plan Number: NDG 817
  • Total Living Space:5723Sq.Ft.
  • Bedrooms: 5
  • Full Baths: 3
  • Half Baths: 1
  • Garage: Yes 3 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 78
  • Width In.: N/A
  • Depth Ft.: 68
  • Depth In.: N/A

Description

A unique exterior combination helps to give this Nelson Design Group home its excellent curb appeal. Observe the openness of this floor plan from the moment you step inside the foyer. Only elegant columns divide the dining room, spacious great room, and breakfast room. Prepare meals in the well-equipped kitchen and keep an eye on the kids as they play in the sun room. Show off your grilling skills on the huge rear grilling porch and adjoining deck. An amenity-filled master suite, three additional bedrooms, and ample storage in the three-car garage complete the main floor of this home. The lower floor houses a game room with kitchen space and nearby safe room, a home theater room, and a private guest room for company.

Specifications

  • Total Living Space:5723Sq.Ft.
  • Main Floor: 2907 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 543 Sq.Ft.
  • Garage (Sq.Ft.): 799 Sq.Ft.
  • Total Square Feet: 7065 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: 9
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 30
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A

Customize This Plan

Need to make changes? We will get you a free price quote!

Modify This Plan
