House Plan 809 Tyler Street, Traditional House Plan

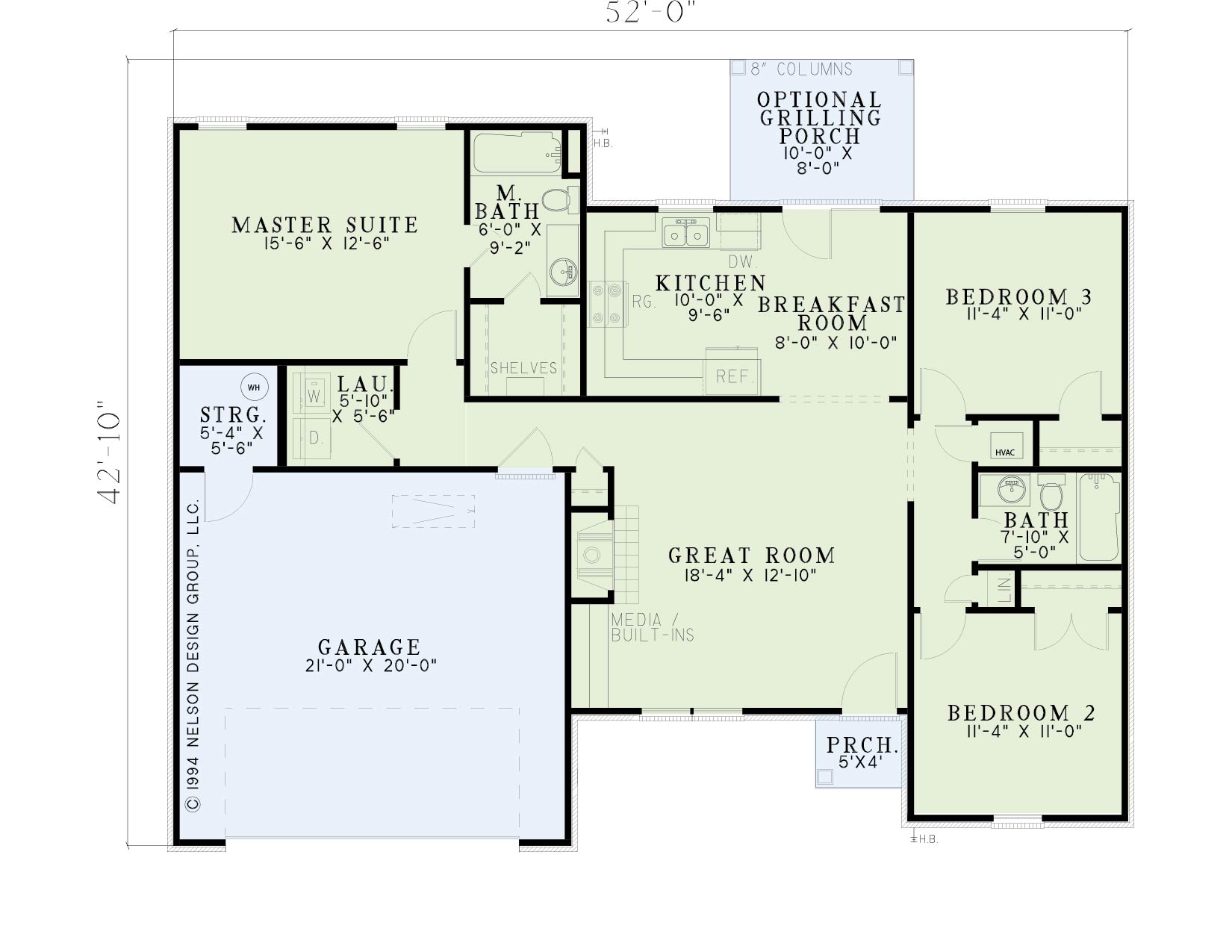

Floor plans

NDG 809

House Plan 809 Tyler Street, Traditional House Plan

PDF: $700.00

Plan Details

  • Plan Number: NDG 809
  • Total Living Space:1295Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 52
  • Width In.: N/A
  • Depth Ft.: 42
  • Depth In.: 10

Description

This enchanting design from Nelson Design Group will be a delight for all who see it. Once inside, the built-in media center and fireplace will create the perfect environment for family movie night. The step-saver kitchen, breakfast room, and the option of a rear-grilling porch should provide you with ample mealtime possibilities. This plan separates the master suite from the two secondary bedrooms, creating a private environment for all family members, but never keeping you too far away to tend to children with nightmares or overnight guests.

Specifications

  • Total Living Space:1295Sq.Ft.
  • Main Floor: 1295 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 100 Sq.Ft.
  • Garage (Sq.Ft.): 467 Sq.Ft.
  • Total Square Feet: 1862 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 17
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
