House Plan 792 Ivy Green, Multi-Family House Plan

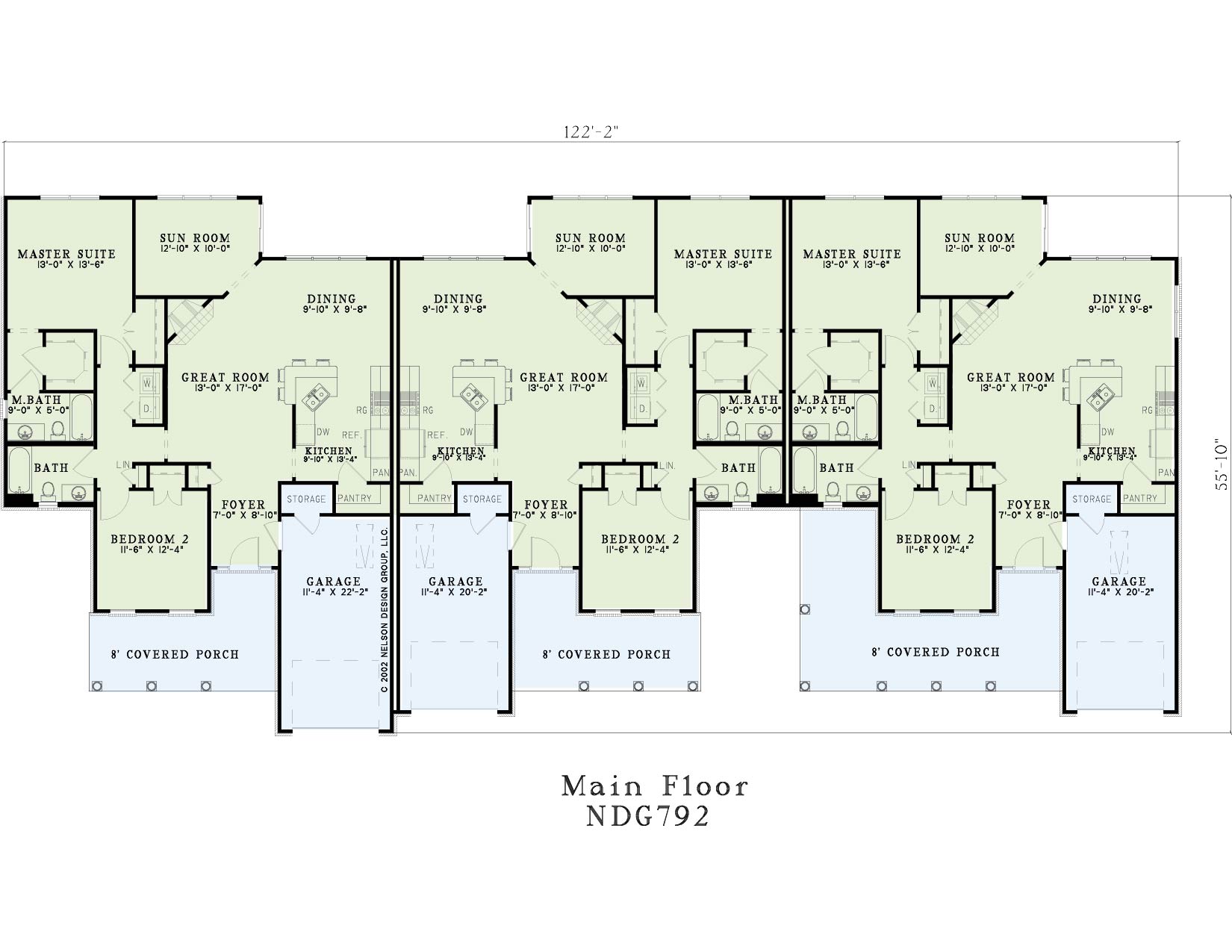

House Plan NDG 792 Main Floor
House Plan NDG 792 Main Floor

Floor plans

NDG 792

House Plan 792 Ivy Green, Multi-Family House Plan

PDF: $2,050.00

Plan Details

  • Plan Number: NDG 792
  • Total Living Space:1398Sq.Ft.
  • Bedrooms: 2
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 1 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 122
  • Width In.: 2
  • Depth Ft.: 55
  • Depth In.: 10

Description

Columns and dormers adorn the front of this triplex unit from Nelson Design Group. Each home features an eight foot covered front porch, the perfect place for a rocking chair or two. The kitchen merges with the great and dining rooms, lending an airy and open feel to this layout. Each home has a fireplace and a sun room so you can correspond with the seasons. The master suites are situated towards the rear with the additional bedrooms provided near the front of each home. A convenient laundry room is tucked in the hallway and plenty of storage space can be found in each home in this triplex design.

Specifications

  • Total Living Space:1398Sq.Ft.
  • Main Floor: 1398 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 185 Sq.Ft.
  • Garage (Sq.Ft.): 286 Sq.Ft.
  • Total Square Feet: 1869 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 9:12
  • Porch Roof Pitch: 3:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 26
  • Ridge Height (In.): 9
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
