House Plan 791 Madison Cove, Historical House Plan

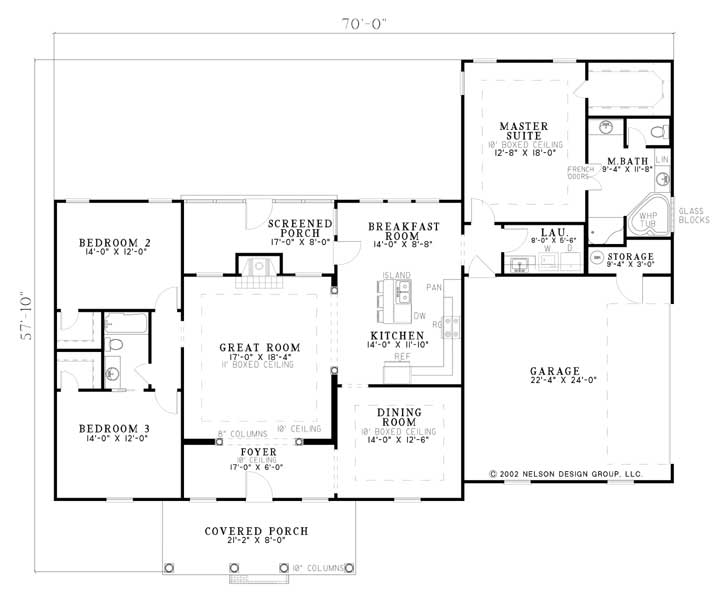

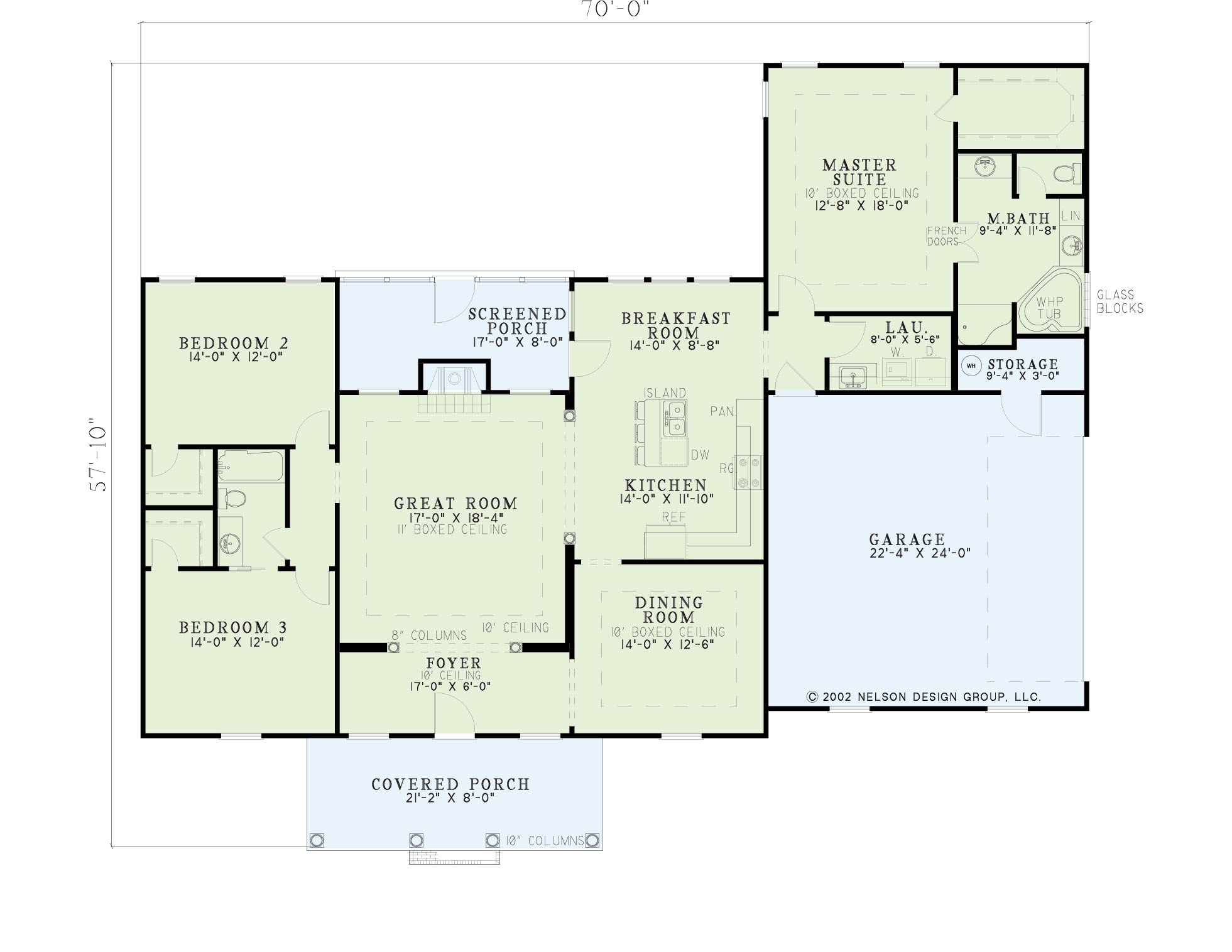

House Plan NDG 791 Main Floor
House Plan NDG 791 Main Floor

Floor plans

NDG 791

House Plan 791 Madison Cove, Historical House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 791
  • Total Living Space:1999Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 70
  • Width In.: N/A
  • Depth Ft.: 57
  • Depth In.: 10

Description

This Historical Southern Traditional home by Nelson Design Group offers fantastic street appeal for the neighborhood. Sunny mornings can be enjoyed on the covered front porch with hot coffee and a book while enjoying after-dinner conversation on the rear screen-porch. The grand entry foyer has a ten-foot ceiling and round columns making a lavish entry into the great room with fireplace and an eleven-foot ceiling. Many dining options are available in both formal dining room and breakfast rooms, which are separated by the open kitchen complete with center work-island with seating. This split bedroom design offers privacy to the master suite placed at the rear of the home featuring French doors into the private bathroom and corner whirlpool tub.

Specifications

  • Total Living Space:1999Sq.Ft.
  • Main Floor: 1999 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 299 Sq.Ft.
  • Garage (Sq.Ft.): 561 Sq.Ft.
  • Total Square Feet: 2859 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 24
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
