House Plan 784 Wilshire Circle, Multi-Family House Plan

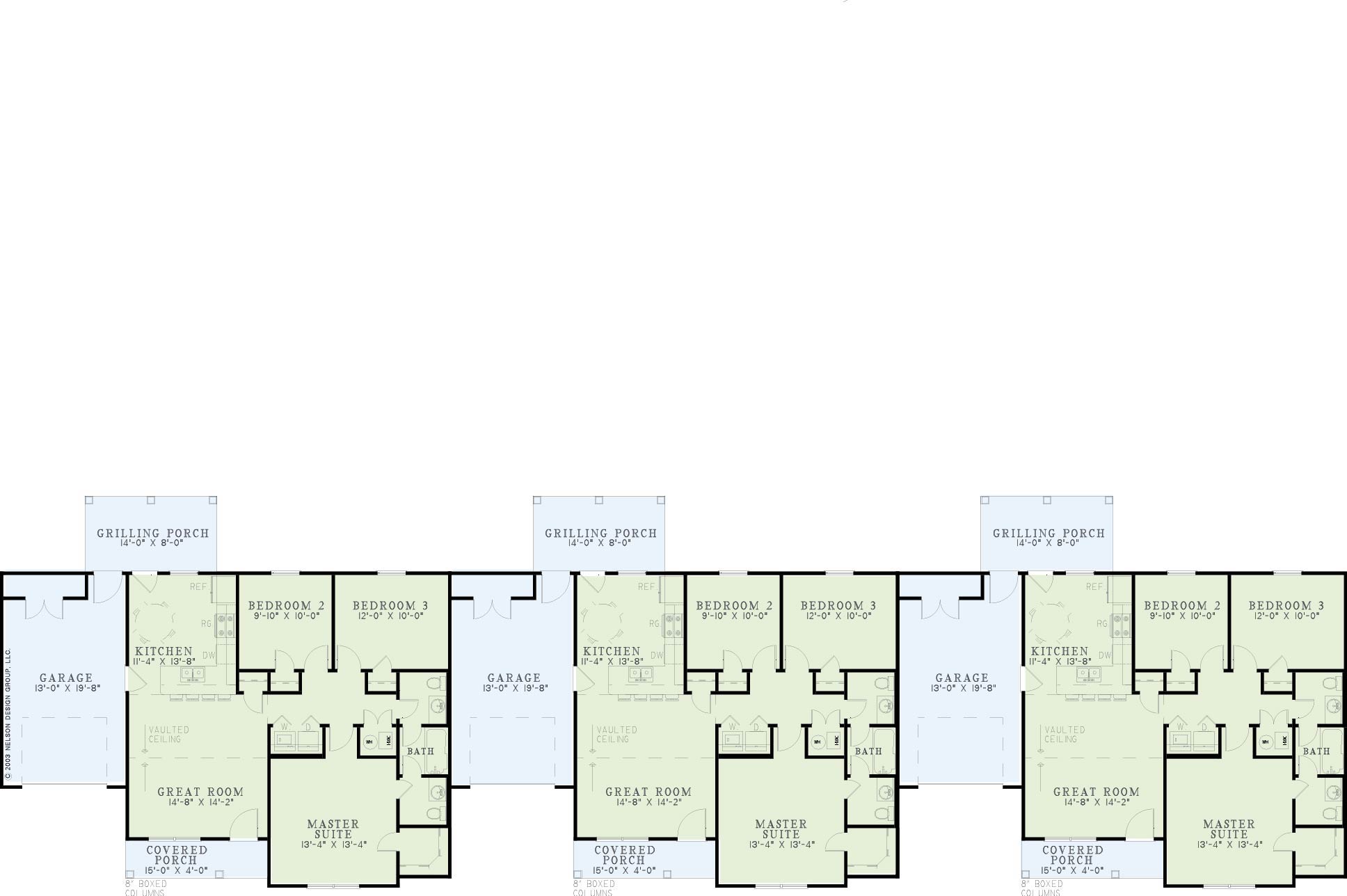

House Plan NDG 784 Main Floor
House Plan NDG 784 Main Floor

Floor plans

NDG 784

House Plan 784 Wilshire Circle, Multi-Family House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: NDG 784
  • Total Living Space:1075Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 1
  • Half Baths: 1
  • Garage: Yes 1 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 143
  • Width In.: 6
  • Depth Ft.: 41
  • Depth In.: 6

Description

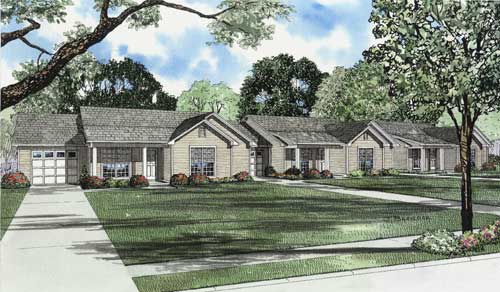

This triplex house plan has charming curb appeal with a covered front porch and single car garage for each identical unit. Step inside one and you'll find a great open floor plan layout from the great room in the kitchen/dining space. down the hall is the Master Suite as well as 2 other bedrooms. At the end of the hall is the unique jack and jill bath giving the Master a private toilet room and sink.

Specifications

  • Total Living Space:1075Sq.Ft.
  • Main Floor: 1075 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 172 Sq.Ft.
  • Garage (Sq.Ft.): 306 Sq.Ft.
  • Total Square Feet: 1553 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 8
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 7:12
  • Porch Roof Pitch: 4:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 17
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
