House Plan 782 Auburn Place, Multi-Family House Plan

>

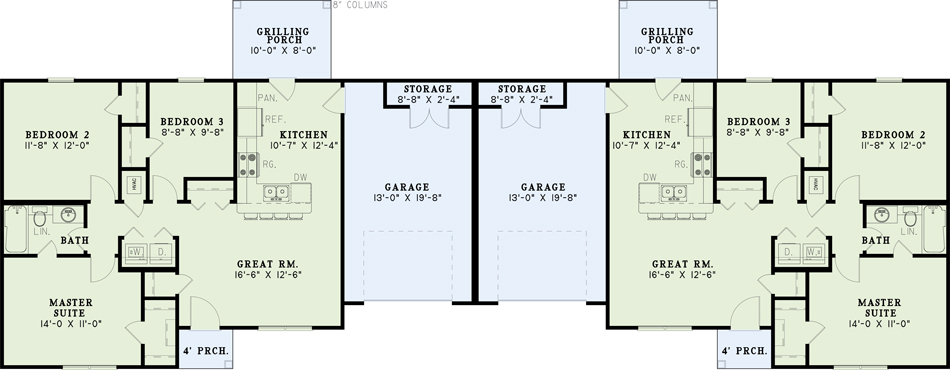

Floor plans

NDG 782

House Plan 782 Auburn Place, Multi-Family House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 782
  • Total Living Space:965Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 1
  • Half Baths: N/A
  • Garage: 1 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 96
  • Width In.: 8
  • Depth Ft.: 37
  • Depth In.: 6

Description

This three bedroom duplex is perfect for couples and families beginning to grow. The expansive great room opens to the kitchen area with a convenient grilling porch nearby. The private suite provides you access to the bath. Ample storage space in this home is an absolute bonus feature.

Floor Plan Specifications:
Heat/Cooled Unit #1: 965 SQ. FT.
Garage, Storage: 307 SQ. FT
Porches: 102 SQ. FT
Total Unit #1: 1374 SQ. FT

Heat/Cooled Unit #2: 965 SQ. FT.
Garage, Storage: 307 SQ. FT
Porches: 102 SQ. FT
Total Unit #2: 1374 SQ. FT

Heat/Cooled Total Both Units: 1930 SQ. FT
Total Both Units: 2748 SQ. FT

Specifications

  • Total Living Space:965Sq.Ft.
  • Main Floor: 965 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 102 Sq.Ft.
  • Garage (Sq.Ft.): 307 Sq.Ft.
  • Total Square Feet: 1374 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 7:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 16
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
