House Plan 773 Cherry Street, Traditional House Plan

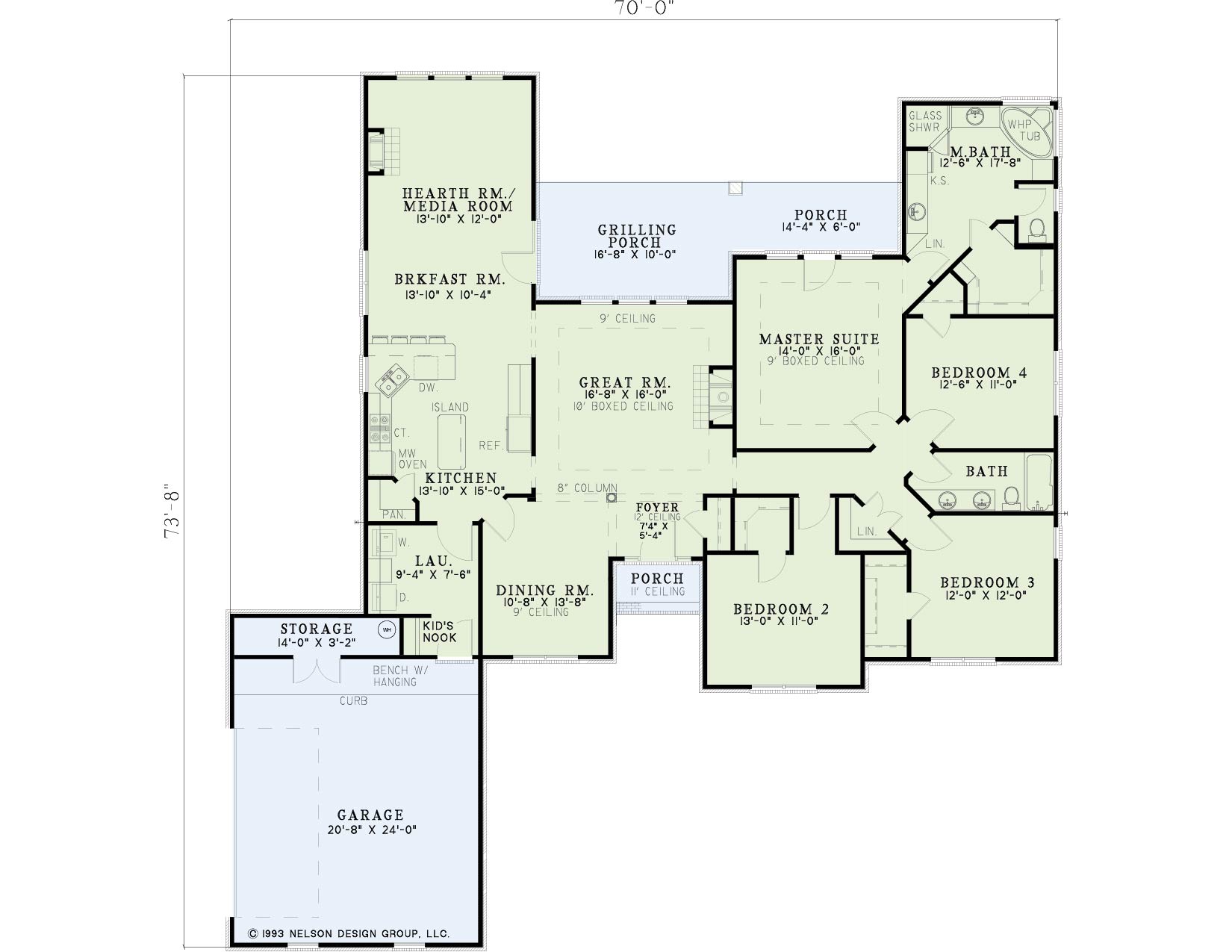

Floor plans

NDG 773

House Plan 773 Cherry Street, Traditional House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 773
  • Total Living Space:2285Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 70
  • Width In.: N/A
  • Depth Ft.: 73
  • Depth In.: 8

Description

This traditional brick home has plenty space for your family. The foyer opening into the dining room and great room where you will find a cozy fireplace perfect for those calm winter evenings. The large kitchen offers an abundance of counter space along with a spacious pantry and uninterrupted access to the breakfast room and hearth room. On the other side of the home is the master suite along with 3 additional bedrooms.

Specifications

  • Total Living Space:2285Sq.Ft.
  • Main Floor: 2285 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 281 Sq.Ft.
  • Garage (Sq.Ft.): 582 Sq.Ft.
  • Total Square Feet: 3148 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 9:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 24
  • Ridge Height (In.): 7
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
