House Plan 747 Olive Street, Farmhouse House Plan

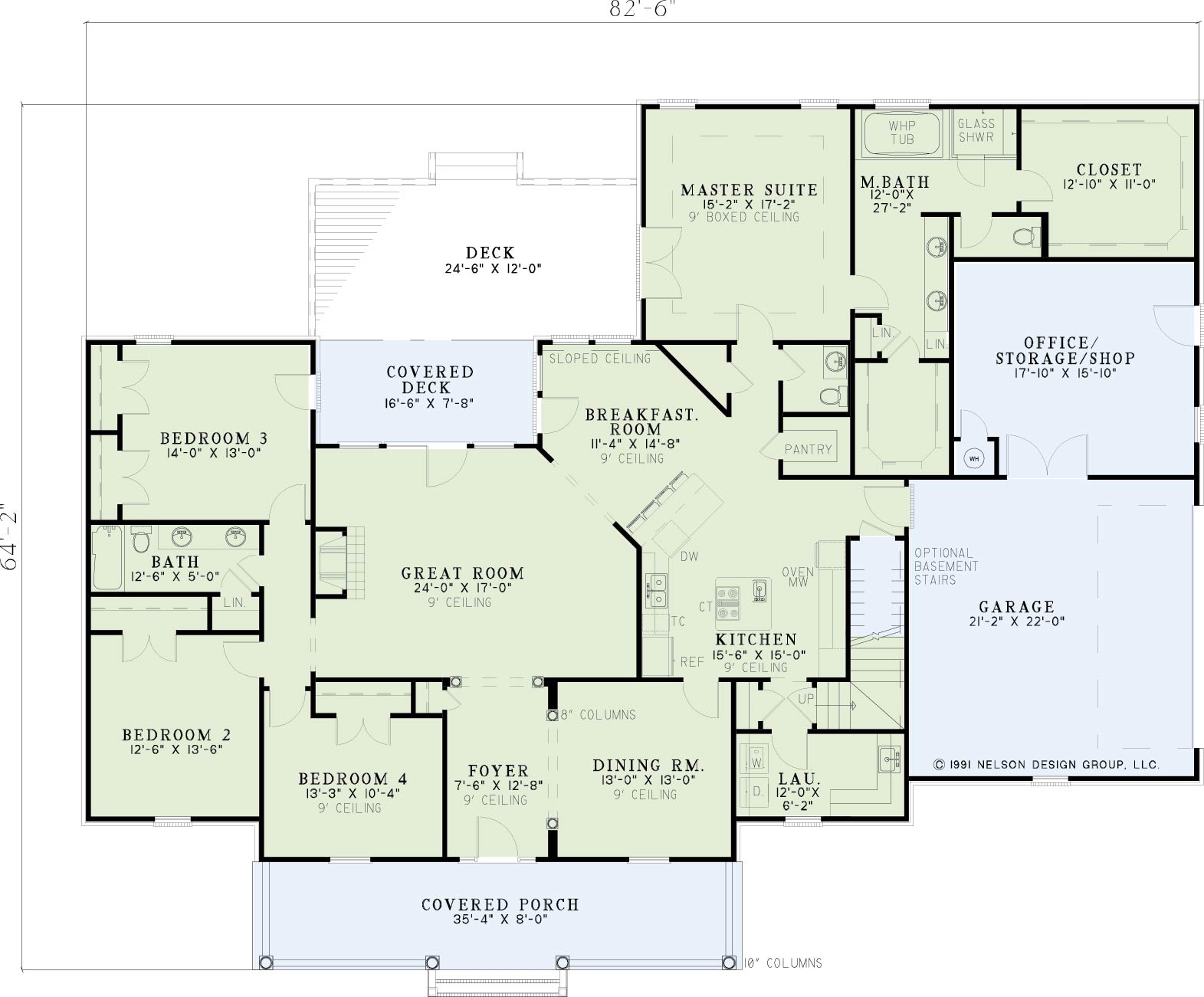

House Plan NDG 747 Main Floor

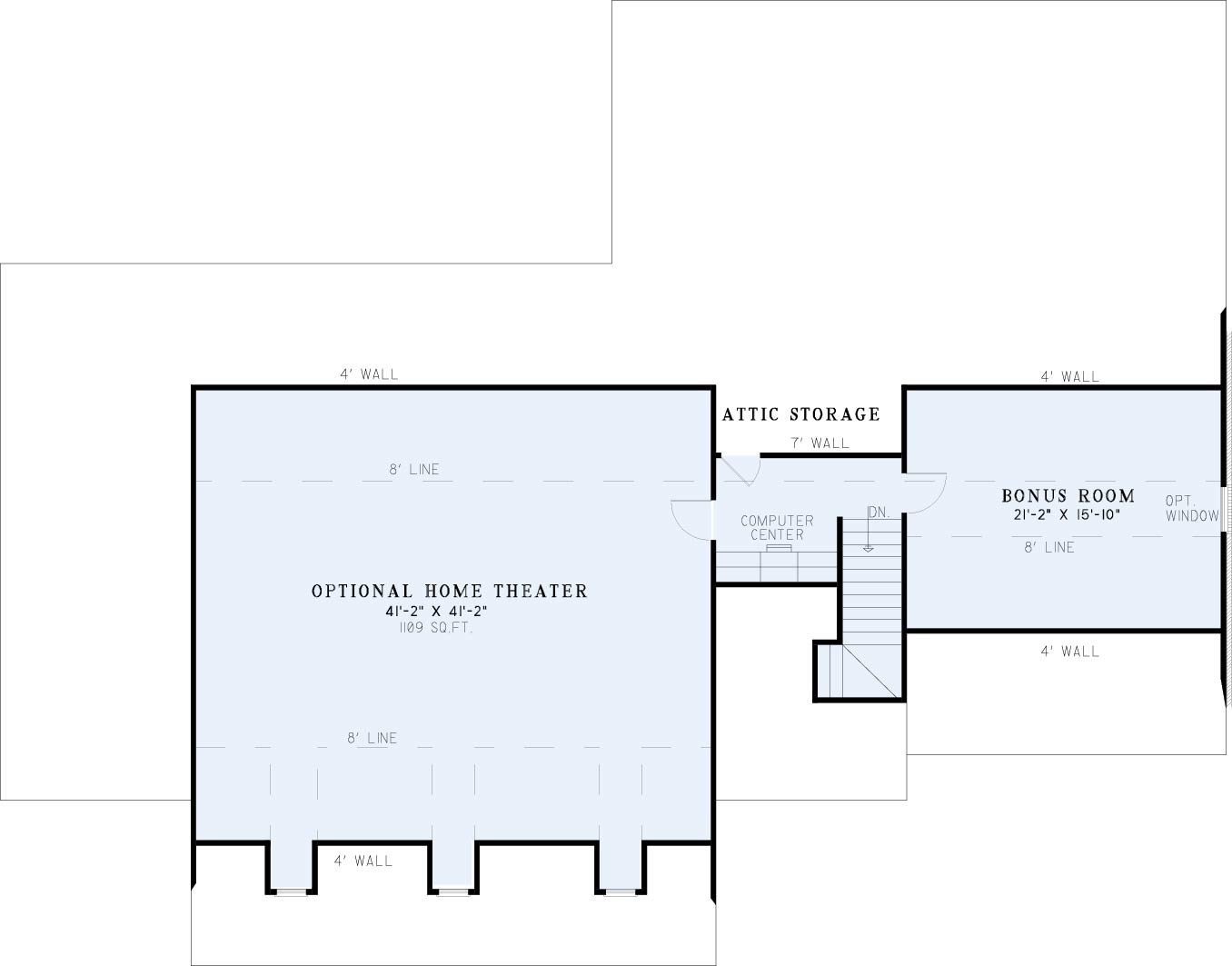

House Plan NDG 747 Home Theater/Bonus Room
House Plan NDG 747 Main Floor
House Plan NDG 747 Home Theater/Bonus Room

Floor plans

NDG 747

House Plan 747 Olive Street, Farmhouse House Plan

PDF: $1,100.00

Plan Details

  • Plan Number: NDG 747
  • Total Living Space:2806Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: 1
  • Garage: Yes 2 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 82
  • Width In.: 6
  • Depth Ft.: 64
  • Depth In.: 2

Description

This Nelson Design Group home defines Southern tradition with the front covered porch to welcome friends and family. Once inside the foyer, you will notice the round columns that frame the entrances to the dining and great rooms both with nine foot ceilings as well. The open great room features a warming fireplace while providing openness for ease of entertaining with the convenient breakfast room to gourmet kitchen. Privacy abounds for the owner with the secluded master suite and luxurious bath with two walk-in closets. The upper floor provides for several possibilities with a home theater as well if you desire.

Specifications

  • Total Living Space:2806Sq.Ft.
  • Main Floor: 2806 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 1568 Sq.Ft.
  • Porch (Sq.Ft.): 409 Sq.Ft.
  • Garage (Sq.Ft.): 773 Sq.Ft.
  • Total Square Feet: 5556 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 24
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
