House Plan 734 Spruce Street, Traditional House Plan

>

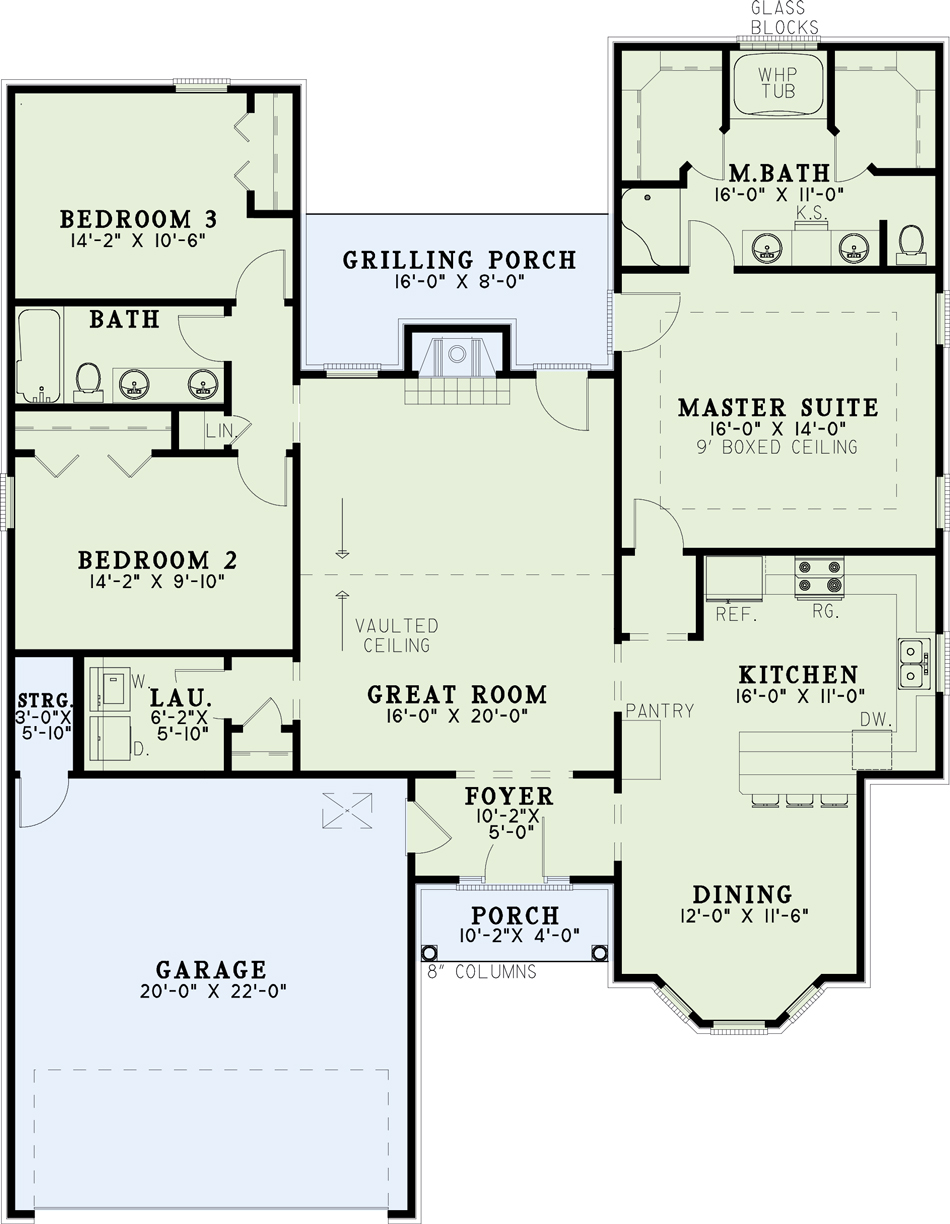

Floor plans

NDG 734

House Plan 734 Spruce Street, Traditional House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 734
  • Total Living Space:1655Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 47
  • Width In.: 6
  • Depth Ft.: 59
  • Depth In.: 8

Description

Two entry columns and an attractive bay window make this traditional Nelson Design Group home a winner. As you enter the foyer, access the garage or view the formal dining room with open view to the kitchen. This well-arranged kitchen has a window over the sink, full pantry and a handy snack bar with seating, making it a great multipurpose center. A recessed entrance just off the kitchen leads to the master suite which features a boxed ceiling, plenty of wall space and two large windows. The private bathroom offers amenities galore including a whirlpool tub with glass block window and double vanity with make-up area. A grand great room effect is gained by using a vaulted while a large fireplace makes a focal point and leads guests to a rear grilling porch.

Specifications

  • Total Living Space:1655Sq.Ft.
  • Main Floor: 1655 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 169 Sq.Ft.
  • Garage (Sq.Ft.): 480 Sq.Ft.
  • Total Square Feet: 2304 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 8
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 19
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
