House Plan 733 Jacob, Traditional House Plan

>
House Plan NDG 733>
House Plan NDG 733>
House Plan NDG 733>
House Plan NDG 733
House Plan NDG 733
House Plan NDG 733

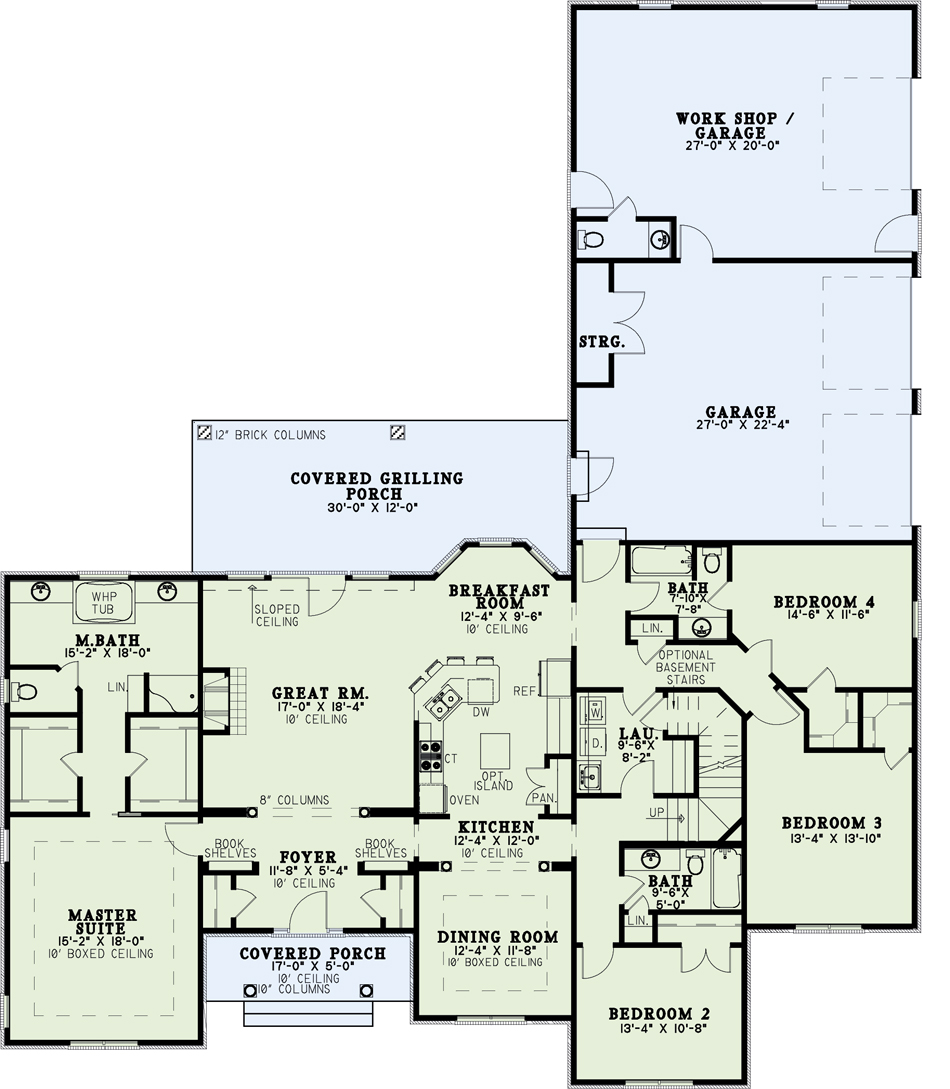

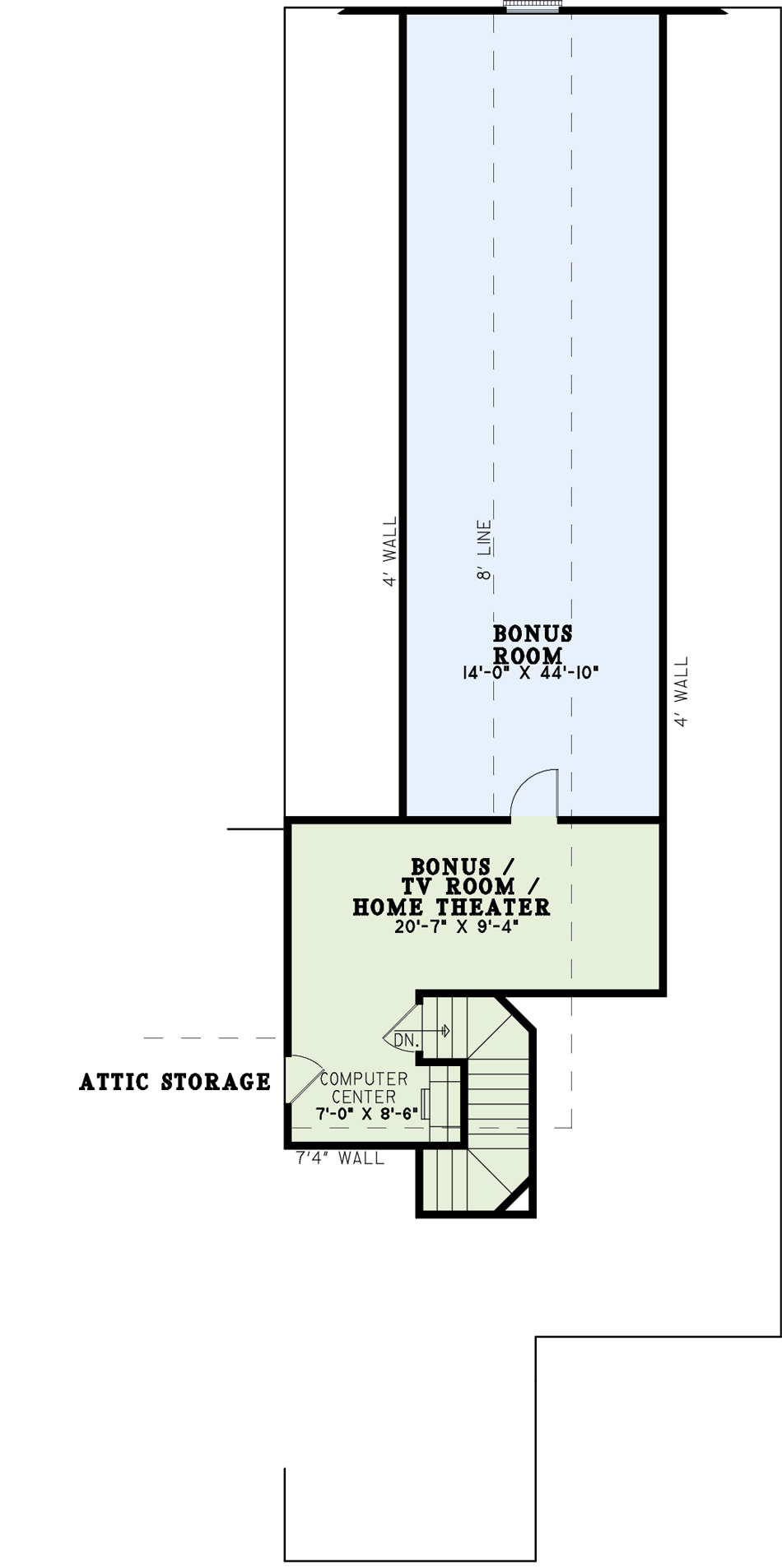

Floor plans

NDG 733

House Plan 733 Jacob, Traditional House Plan

PDF: $1,100.00

Plan Details

  • Plan Number: NDG 733
  • Total Living Space:2846Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: 1
  • Garage: 3 Bay Yes
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 73
  • Width In.: 2
  • Depth Ft.: 86
  • Depth In.: 8

Description

Imagine the compliments you’ll receive while entertaining in this delightful Nelson Design Group home. Guests will marvel at the gallery lined with built-in bookshelves and the massive great room with elegant fireplace and high ceilings throughout. A stylish French door allows the dinner party to transition outside to the vast covered grilling porch. When the party is over, you can relax in the breakfast bay before retiring to the master suite enhanced by two walk-in closets and an oversized whirlpool tub. A bonus floor is included in this design for future expansion, the perfect space for that home theater you’ve always dreamed of.

Specifications

  • Total Living Space:2846Sq.Ft.
  • Main Floor: 2560 Sq.Ft
  • Upper Floor (Sq.Ft.): 286 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 669 Sq.Ft.
  • Porch (Sq.Ft.): 431 Sq.Ft.
  • Garage (Sq.Ft.): 1189 Sq.Ft.
  • Total Square Feet: 5135 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 24
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
