House Plan 723 Misty Lane, Affordable House Plan

House Plan 723 Misty Lane, Affordable House Plan

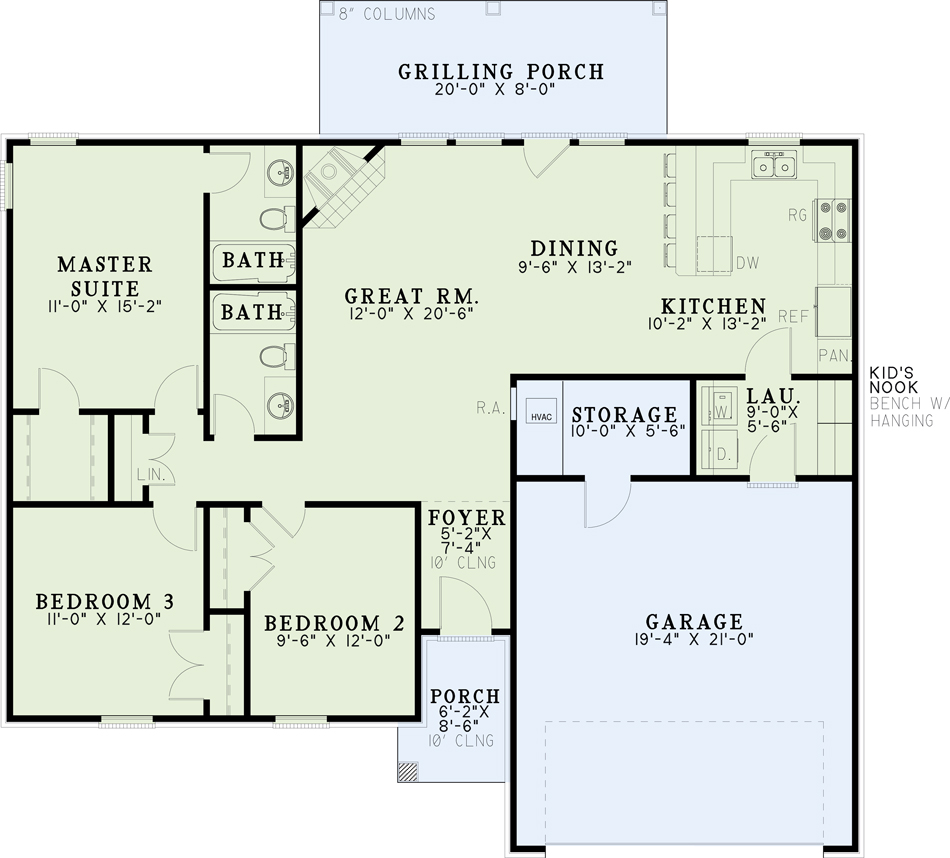

Floor plans

NDG 723

House Plan 723 Misty Lane, Affordable House Plan

PDF: $700.00

Plan Details

  • Plan Number: NDG 723
  • Total Living Space:1284Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 49
  • Width In.: N/A
  • Depth Ft.: 49
  • Depth In.: N/A

Description

This Nelson Design Group is sure to be a favorite in your neighborhood. Entry through the foyer leads you and your guests into the great room with a gorgeous corner fireplace. Nearby, the dining room and kitchen merge to form a large entertaining area, or treat your guests to a cookout on the rear grilling porch. Let this master suite be your haven when the day draws to a close. All the while, the kids or visitors will be ever so comfortable in the two additional bedrooms offered in this design.

Specifications

  • Total Living Space:1284Sq.Ft.
  • Main Floor: 1284 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 208 Sq.Ft.
  • Garage (Sq.Ft.): 482 Sq.Ft.
  • Total Square Feet: 1974 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 19
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
