House Plan 716 Isidora, French Traditional House Plan

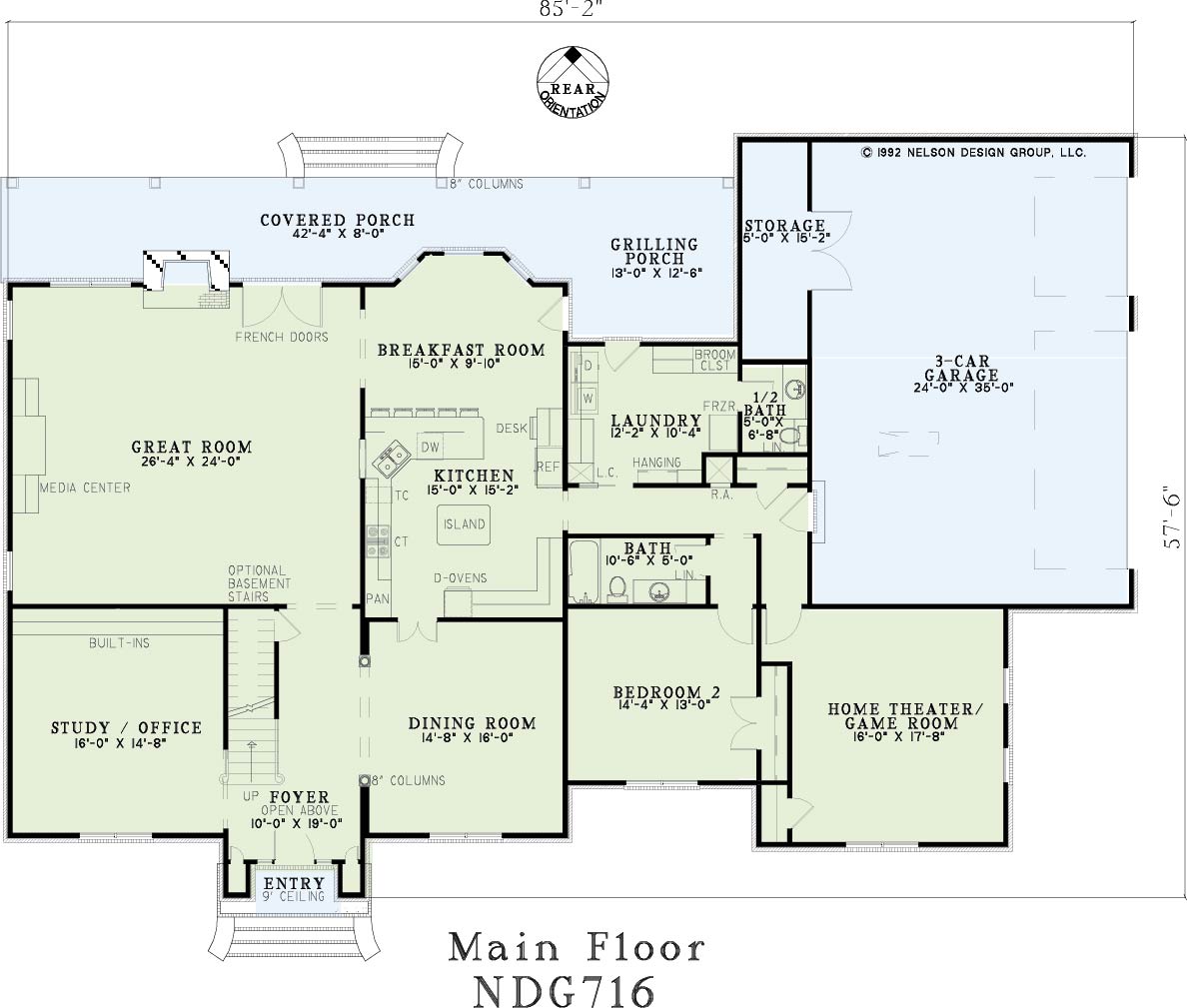

House Plan NDG 716 Main Floor

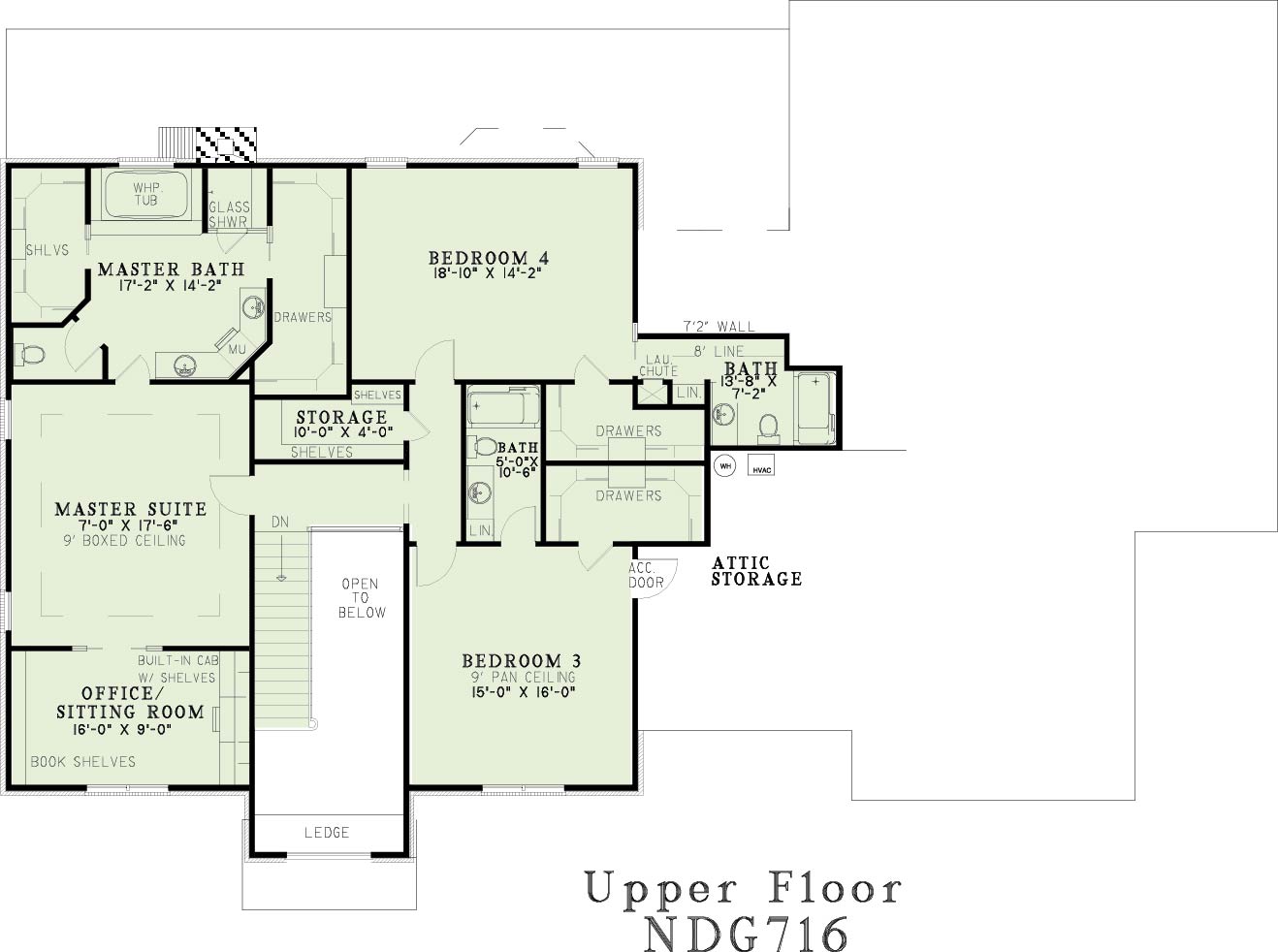

House Plan NDG 716 Upper Floor
House Plan NDG 716 Main Floor
House Plan NDG 716 Upper Floor

Floor plans

NDG 716

House Plan 716 Isidora, French Traditional House Plan

PDF: $1,550.00

Plan Details

  • Plan Number: NDG 716
  • Total Living Space:4468Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 4
  • Half Baths: 1
  • Garage: Yes 3 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 85
  • Width In.: 2
  • Depth Ft.: 57
  • Depth In.: 6

Description

You’re sure to find all the amenities you could ever want in this two story Nelson Design Group home. The enormous great room and dining room were made to entertain. Family movie night has never been better than in this personal home theater room. The bedroom and bath combination downstairs can serve as a guest or in-law suite. Upstairs, find your master suite and two additional bedrooms along with a generous office. Ample storage and closet space can also be found throughout this unique design.

Specifications

  • Total Living Space:4468Sq.Ft.
  • Main Floor: 2733 Sq.Ft
  • Upper Floor (Sq.Ft.): 1735 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 497 Sq.Ft.
  • Garage (Sq.Ft.): 957 Sq.Ft.
  • Total Square Feet: 5922 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 33
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
  • Master Bedroom: Master Bedroom Upper Level

Customize This Plan

Need to make changes? We will get you a free price quote!

Modify This Plan

Property Attachments

Plan Package

  • House Plan Options
