House Plan 706 Dogwood Avenue, Traditional House Plan

>
House Plan - NDG 706>
House Plan - NDG 706

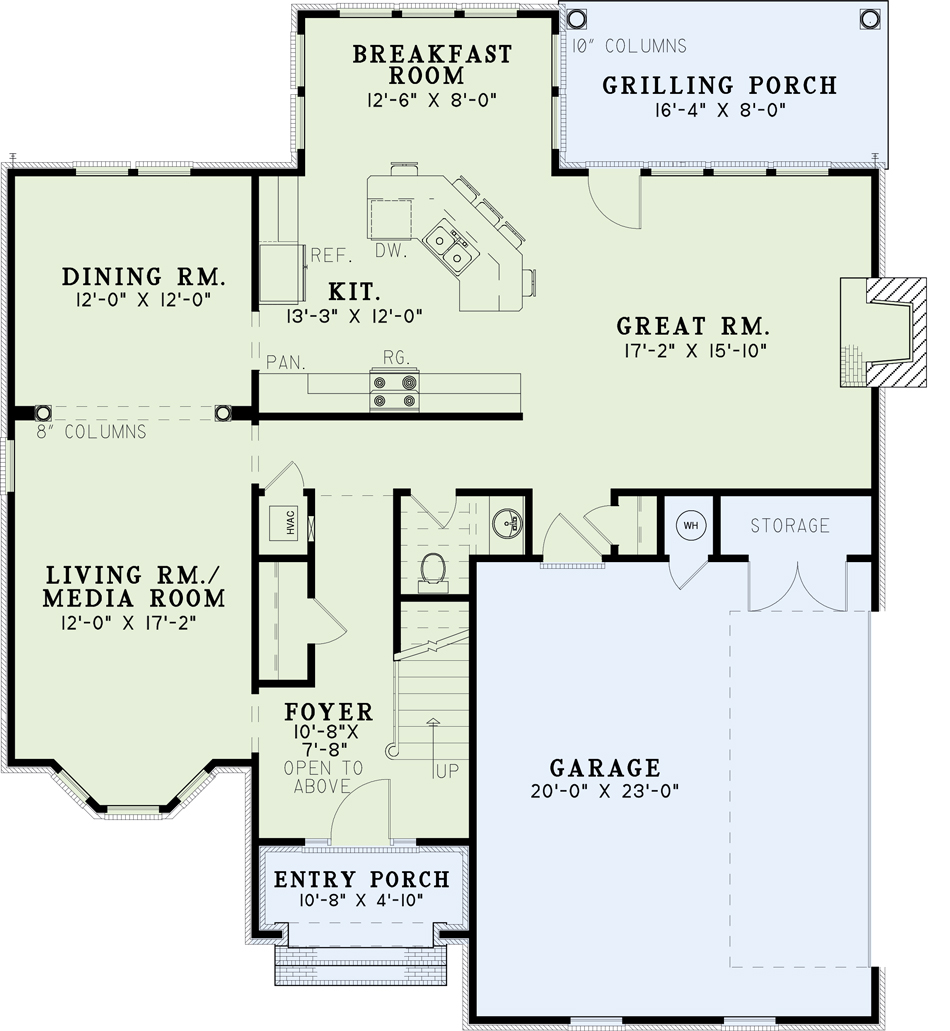

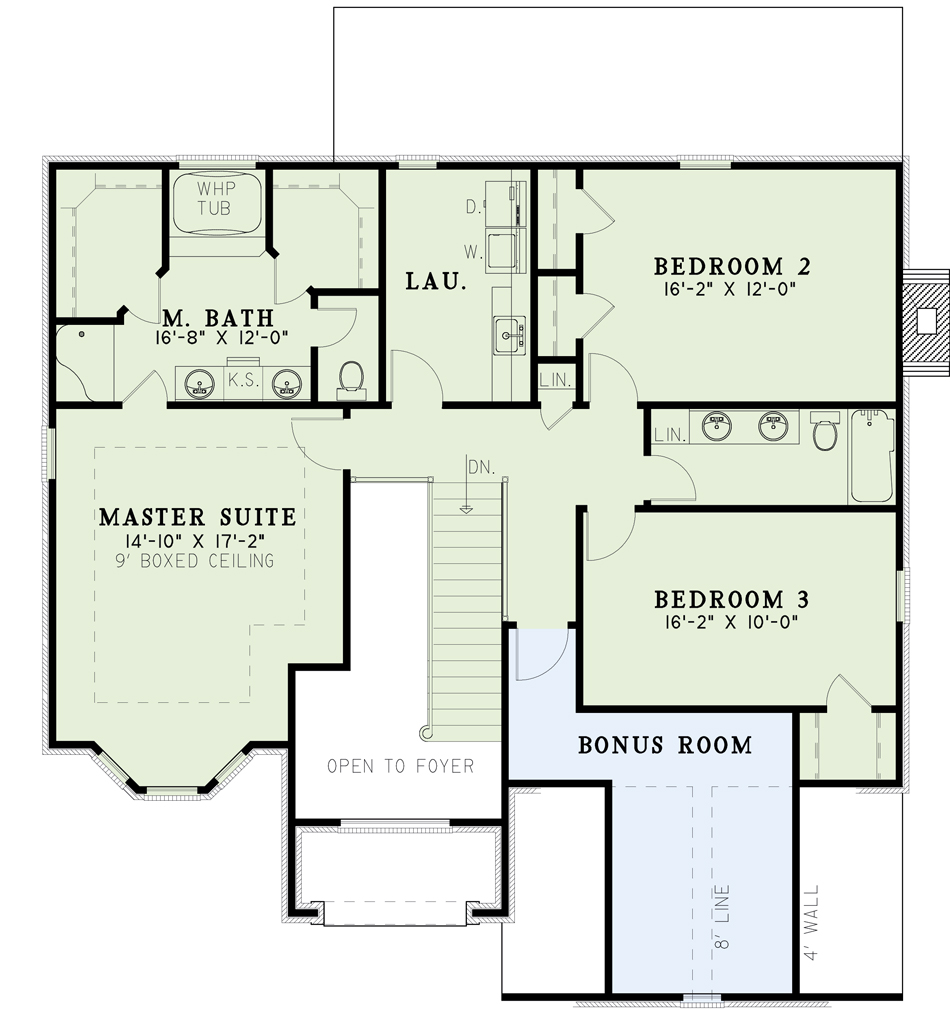

Floor plans

NDG 706

House Plan 706 Dogwood Avenue, Traditional House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 706
  • Total Living Space:2435Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: 2 Bay Yes
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 46
  • Width In.: 5
  • Depth Ft.: 51
  • Depth In.: 2

Description

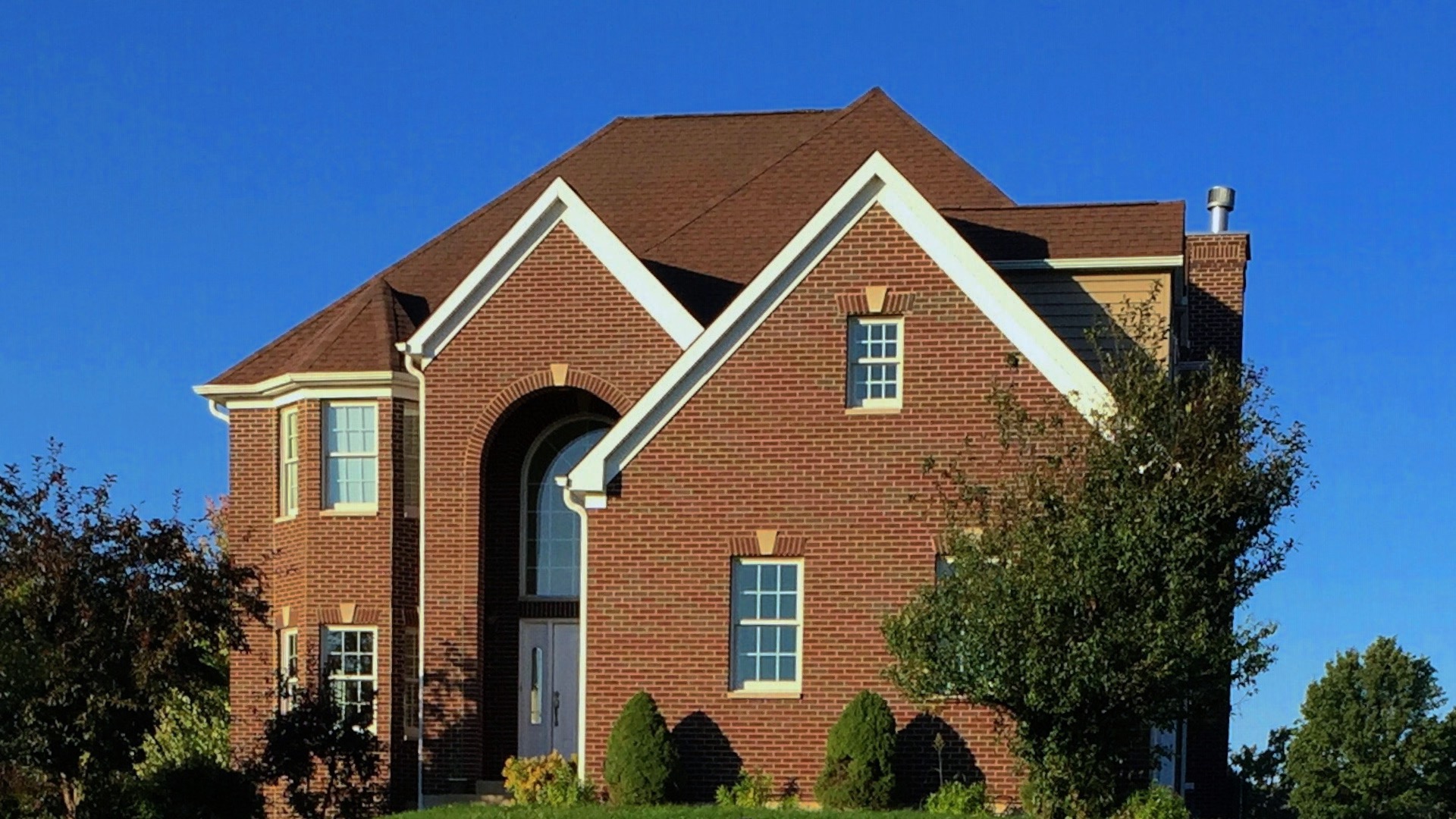

This Nelson Design Group traditional brick home was made to entertain. Welcome your guests into the media room with bay window or head into the great room for conversation by the fireplace. You’ll enjoy preparing your cuisine in this well-equipped kitchen. Serve your guests in the dining room with columns or prepare your feast on the rear grilling porch. Upstairs, you can check on the kids in the two additional bedrooms before retiring to your master suite for the night. The inclusion of a bonus room on the upper level only increases the possibilities in this remarkable design.

Specifications

  • Total Living Space:2435Sq.Ft.
  • Main Floor: 1245 Sq.Ft
  • Upper Floor (Sq.Ft.): 1190 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 184 Sq.Ft.
  • Porch (Sq.Ft.): 180 Sq.Ft.
  • Garage (Sq.Ft.): 505 Sq.Ft.
  • Total Square Feet: 3304 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 35
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
  • Master Bedroom: Master Bedroom Upper Level
