House Plan 698 Spruce Street, Traditional House Plan

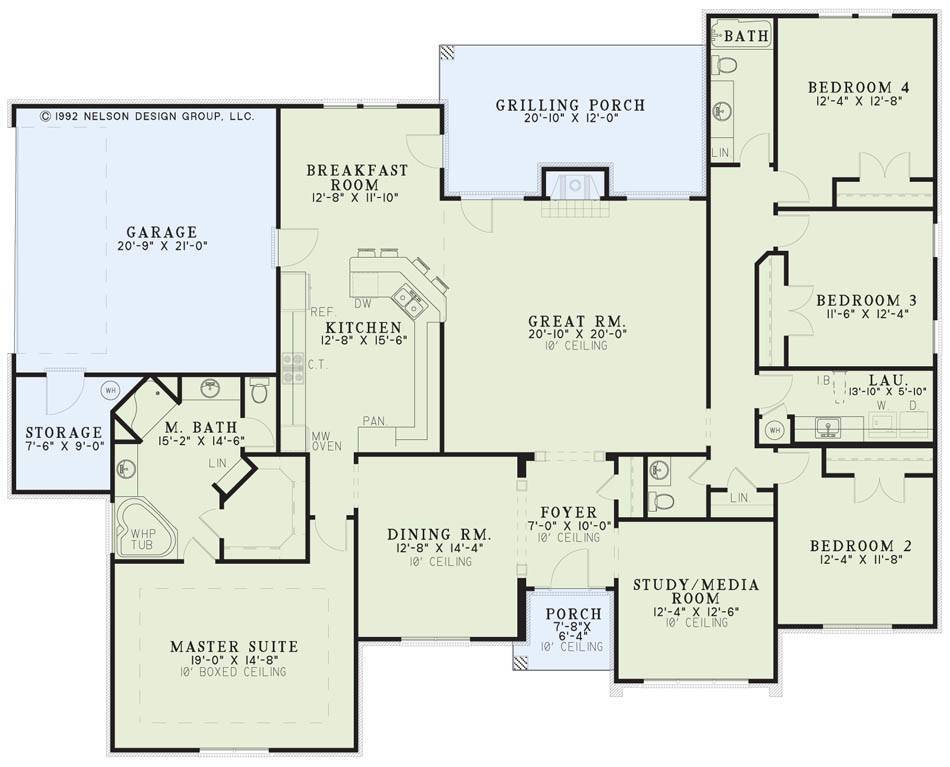

House Plan NDG 698 Main Floor
House Plan NDG 698 Main Floor

Floor plans

NDG 698

House Plan 698 Spruce Street, Traditional House Plan

PDF: $1,100.00

Plan Details

  • Plan Number: NDG 698
  • Total Living Space:2671Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: 1
  • Garage: Yes 2 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 73
  • Width In.: 6
  • Depth Ft.: 58
  • Depth In.: 8

Description

This charming brick house plan is a lovely addition to any neighborhood. The beautiful front entrance will welcome you into the Foyer. This Foyer gives you access to the Study/Media Room, the Dining Room and the Great Room. This spacious Great Room has a cozy fireplace and is partially open to the Kitchen through an eat-at bar. In the Kitchen you will find plenty of counter space to prepare meals and a connected breakfast room. Head to the Master Suite to enjoy plenty of private space and a large Master Bath. On the other side of the home is a long hallway where you will find Bedrooms 2, 3 and 4 as well as a Full Bath, a Half Bath and the Laundry Room.

Specifications

  • Total Living Space:2671Sq.Ft.
  • Main Floor: 2671 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 298 Sq.Ft.
  • Garage (Sq.Ft.): 528 Sq.Ft.
  • Total Square Feet: 3497 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 24
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A

Customize This Plan

Need to make changes? We will get you a free price quote!

Modify This Plan
