House Plan 694 Armodius, French Classical House Plan

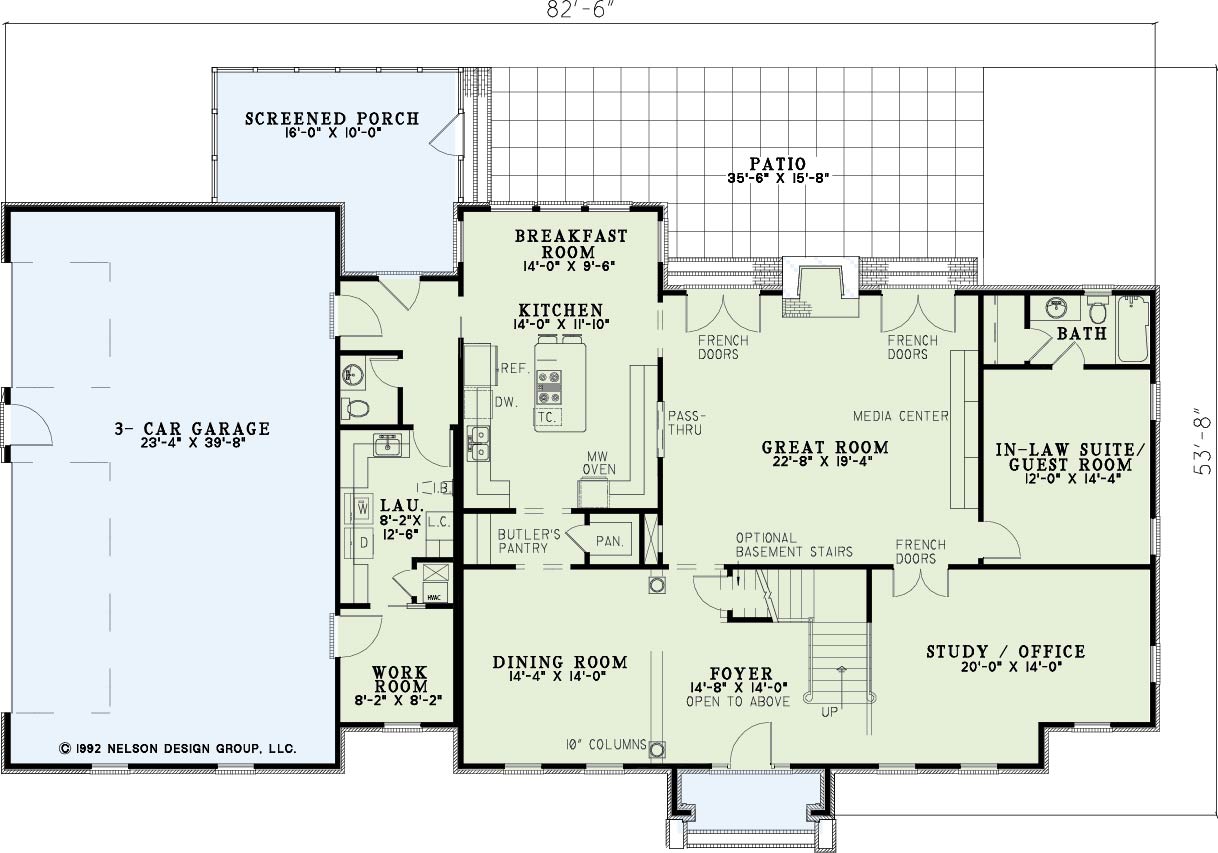

House Plan NDG 694 Main Floor

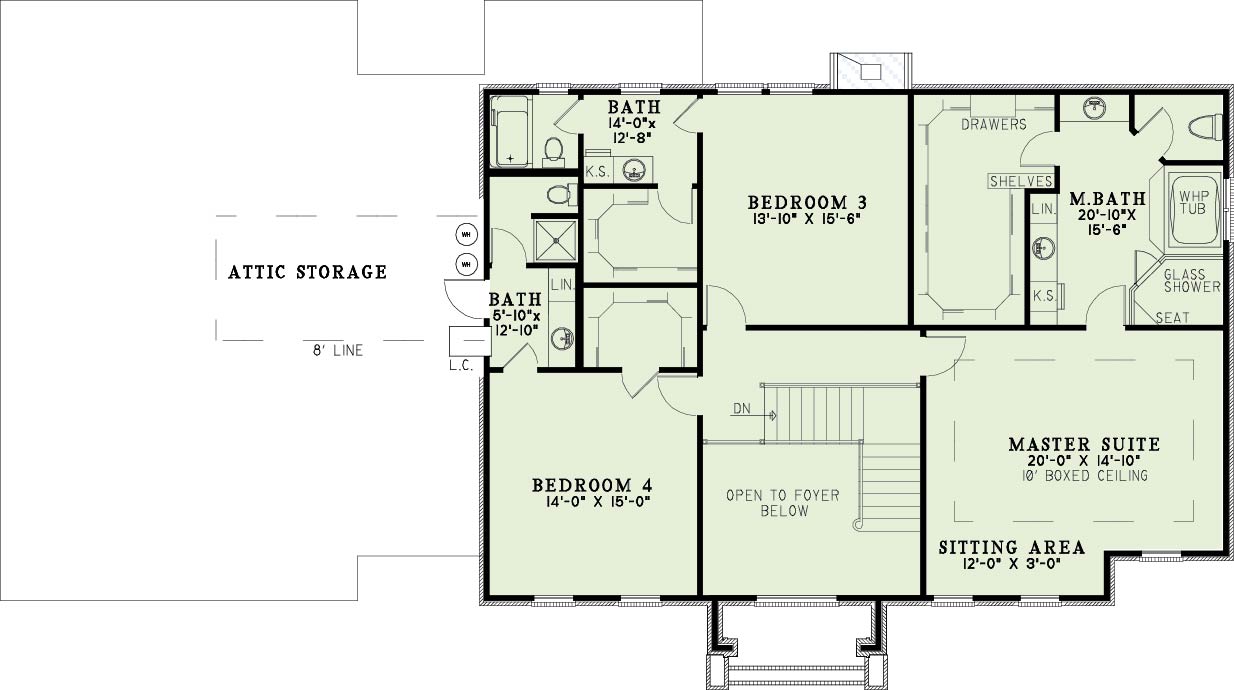

House Plan NDG 694 Upper Floor
House Plan NDG 694 Main Floor
House Plan NDG 694 Upper Floor

Floor plans

NDG 694

House Plan 694 Armodius, French Classical House Plan

PDF: $1,350.00

Plan Details

  • Plan Number: NDG 694
  • Total Living Space:3558Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 4
  • Half Baths: 1
  • Garage: Yes 3 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 82
  • Width In.: 6
  • Depth Ft.: 53
  • Depth In.: 8

Description

This enormous Nelson Design Group home will stop traffic on your street. Entertain in the great room with built-in media center and French door access to the patio. You’ll enjoy the privacy of the study/office when you need a quiet place to read. Your in-laws are sure to feel like royalty while staying in their own private suite. A large screened porch and workroom off of the garage are a few more amenities included on the main floor of this home. Upstairs, you’ll find the elegant master suite and two secondary bedrooms for the kids.

Specifications

  • Total Living Space:3558Sq.Ft.
  • Main Floor: 2066 Sq.Ft
  • Upper Floor (Sq.Ft.): 1492 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 260 Sq.Ft.
  • Garage (Sq.Ft.): 694 Sq.Ft.
  • Total Square Feet: 4512 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 9
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 31
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
  • Master Bedroom: Master Bedroom Upper Level
