House Plan 680 Spruce Street, Traditional House Plan

House Plan NDG 680 Main Floor
House Plan NDG 680 Main Floor

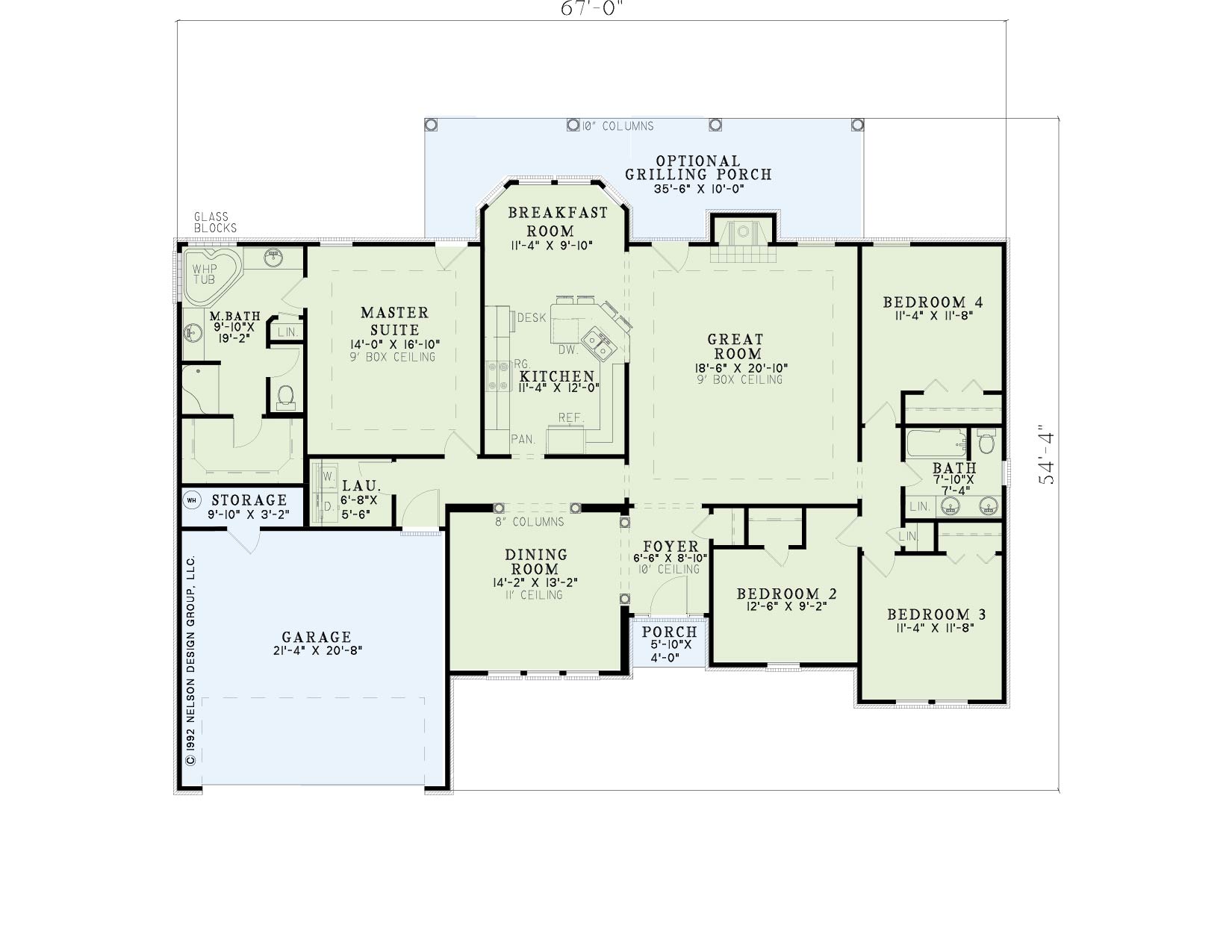

Floor plans

NDG 680

House Plan 680 Spruce Street, Traditional House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 680
  • Total Living Space:2113Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 67
  • Width In.: N/A
  • Depth Ft.: 54
  • Depth In.: 4

Description

Round-topped windows add to the appeal of this Nelson Design Group home. Through the foyer, you’ll notice the elegant columns framing the entryways into the formal dining room. The expansive great room features a nine-foot boxed ceiling, fireplace, and access to the optional grilling porch at the rear. Three secondary bedrooms fill one side of this home and share a centralized full bath. On the opposite side of this design, you’ll find the exquisite master suite with an amenity-filled master bath

Specifications

  • Total Living Space:2113Sq.Ft.
  • Main Floor: 2113 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 314 Sq.Ft.
  • Garage (Sq.Ft.): 494 Sq.Ft.
  • Total Square Feet: 2921 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 21
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
