House Plan 675 Cherry Street, Affordable House Plan

>

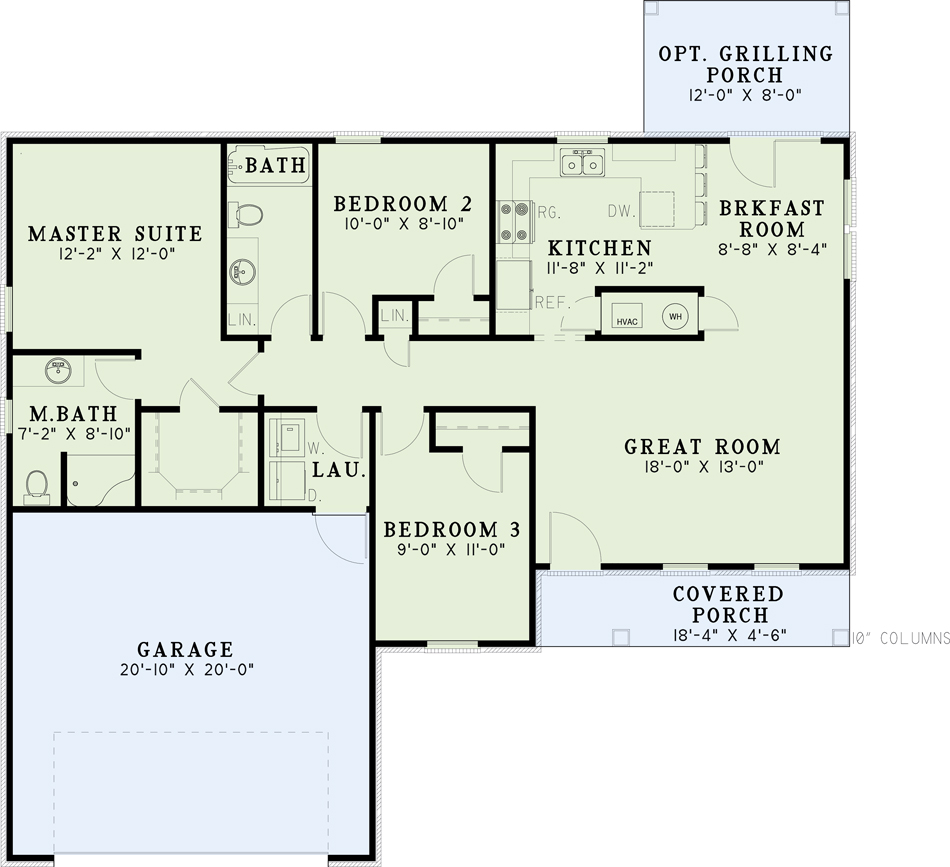

Floor plans

NDG 675

House Plan 675 Cherry Street, Affordable House Plan

PDF: $700.00

Plan Details

  • Plan Number: NDG 675
  • Total Living Space:1210Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 49
  • Width In.: 2
  • Depth Ft.: 50
  • Depth In.: 2

Description

Traditional stylings make this Nelson Design Group home a neighborhood favorite. Boxed columns on both the front and rear grilling-porch, as well as, window shutters give this design a bit of country appeal. This compact floor plan has three bedrooms and two full bathrooms giving the entire family plenty of space. The breakfast room and spacious kitchen share a bar with extra seating, making a handy buffet while entertaining friends and family.

Specifications

  • Total Living Space:1210Sq.Ft.
  • Main Floor: 1210 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 178 Sq.Ft.
  • Garage (Sq.Ft.): 435 Sq.Ft.
  • Total Square Feet: 1823 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 7:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 17
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
