House Plan 639 Burlington Cove, Affordable House Plan

House Plan 639 Burlington Cove, Affordable House Plan

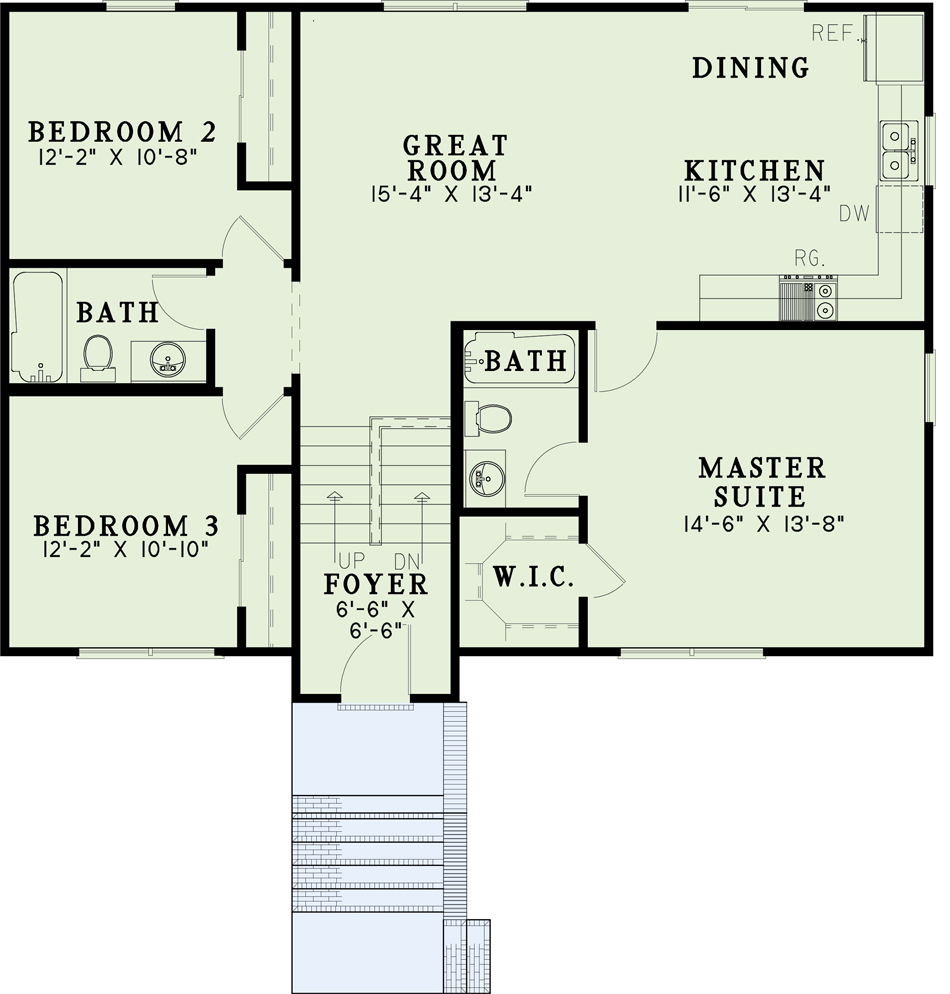

Floor plans

NDG 639

House Plan 639 Burlington Cove, Affordable House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 639
  • Total Living Space:1614Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 40
  • Width In.: N/A
  • Depth Ft.: 30
  • Depth In.: 30

Description

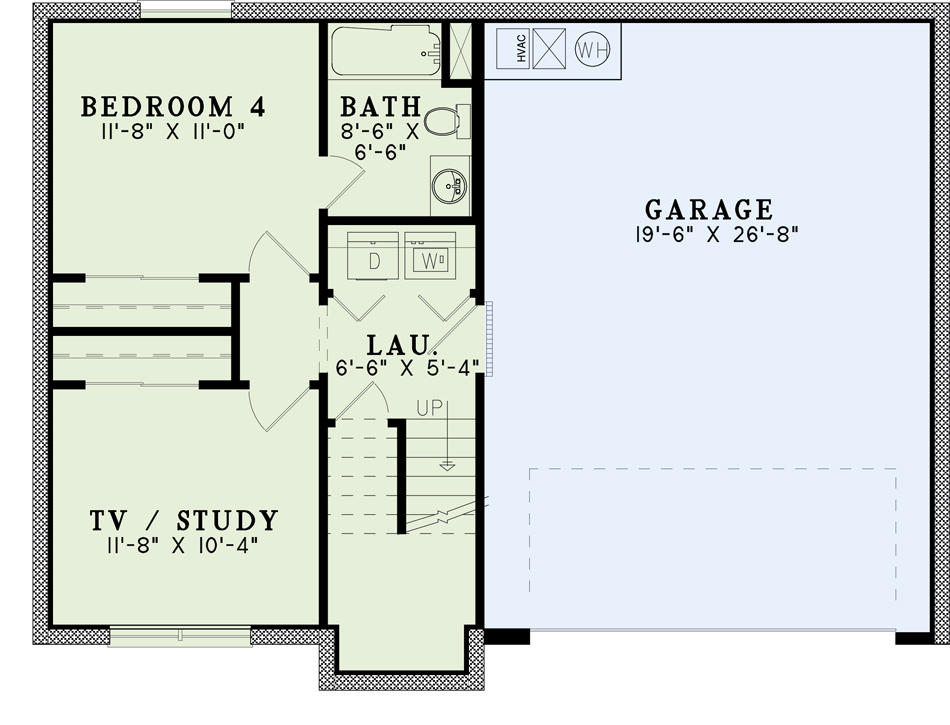

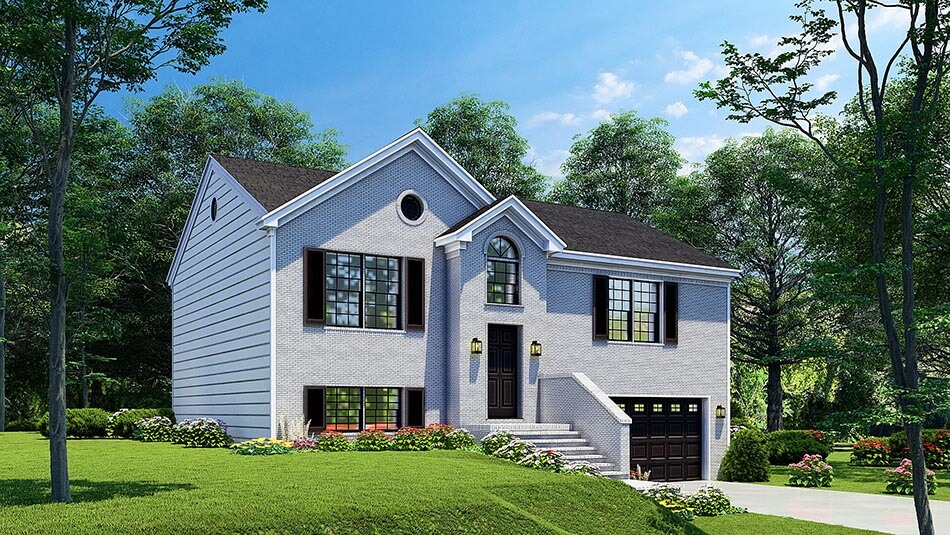

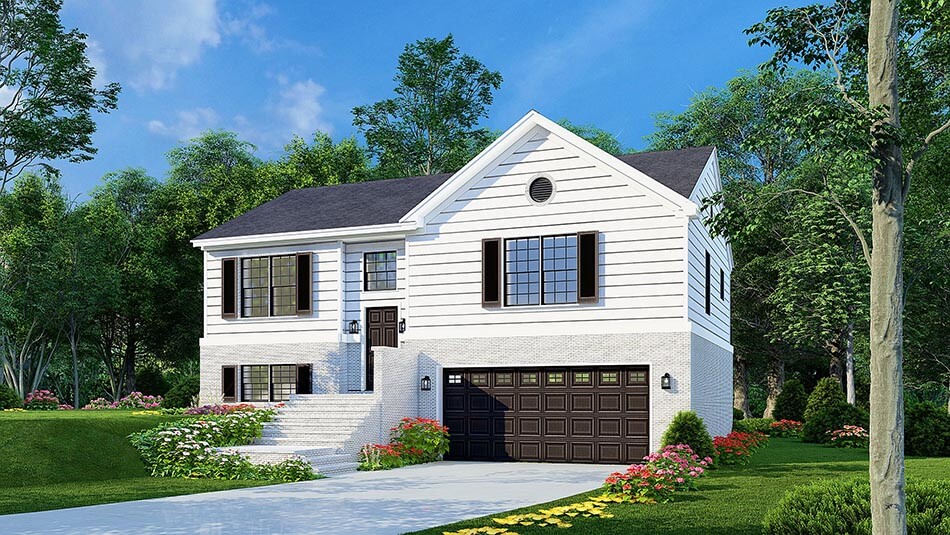

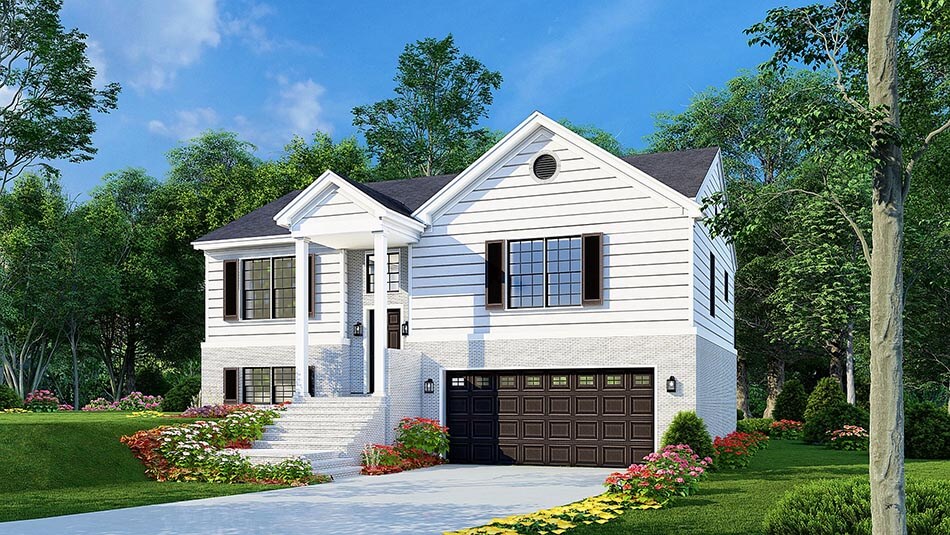

An entry porch with a grand ceiling height elegantly welcomes guests into this Nelson Design Group home. Immediately upon entry, this split level design will lead you up to the main living areas including a large great room adjoining the kitchen and dining area, a spacious master suite and two bedrooms and full bath. The lower level option has a fourth bedroom and full bath, perfect for weekend guests or a teenager's hideaway! The laundry room, a TV room or optional study and garage are also located on the lower level.

Specifications

  • Total Living Space:1614Sq.Ft.
  • Main Floor: 1134 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 44 Sq.Ft.
  • Garage (Sq.Ft.): 569 Sq.Ft.
  • Total Square Feet: 2227 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 6:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 25
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A

Customize This Plan

Need to make changes? We will get you a free price quote!

Modify This Plan

Property Attachments

Plan Package

  • PDF ($1,000.00)
    • CAD ($2,000.00)
    • Five Set ($1,100.00)
    • PDF ($1,000.00)
    • PDF + Unlimited Build ($1,700.00)
  • House Plan Options

    Foundation Basement ($0.00)
    • Foundation Basement ($0.00)
  • --None--
    • --None--
    • Five Sets (+$400.00)
    • Four Sets (+$320.00)
    • One Set (+$80.00)
    • Three Sets (+$240.00)
    • Two Sets (+$160.00)
